GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )GBS12,GXS1#,YXS10..SED ; (0808- )CRW,SED,TAX

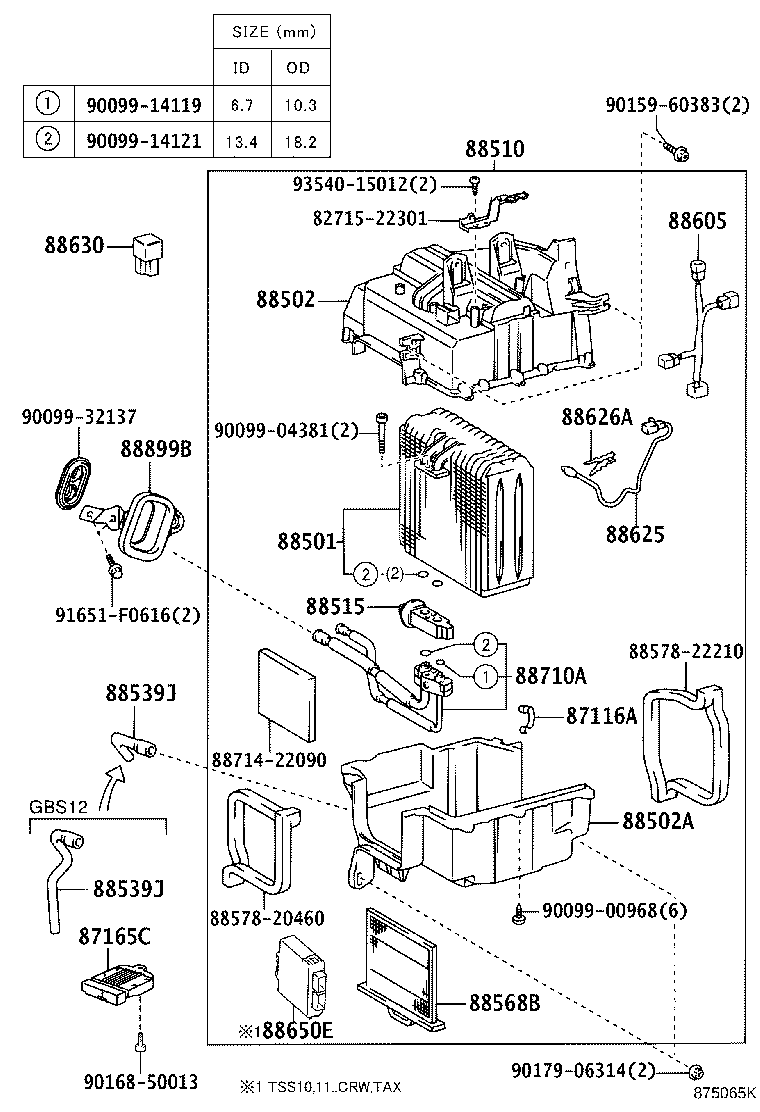

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
GXS12 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-43010 |
GXS1#,YXS1#..CRW,SED,TAX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88502-43011 |
GXS12 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-43021 |
GXS12 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88502-43020 |
GXS1#,YXS1#..CRW,SED,TAX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-43040 |
GXS12 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-43030 |
GXS12 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-22130 |
GXS12 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-22130 |
GXS12 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-43010 |
GXS12 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-22250 |
GXS12 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
GXS12 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-43050 |
GXS12 |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88899-43020 |
GXS12 ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| Common parts | ||||
| 82715-22301 | ||||
| 88578-20460 | ||||
| 88578-22210 | ||||
| 88714-22090 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90099-32137 | ||||
| 90159-60383 | ||||
| 90168-50013 | ||||
| 90179-06314 | ||||
| 91651-F0616 | ||||
| 93540-15012 | ||||
