GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )SED

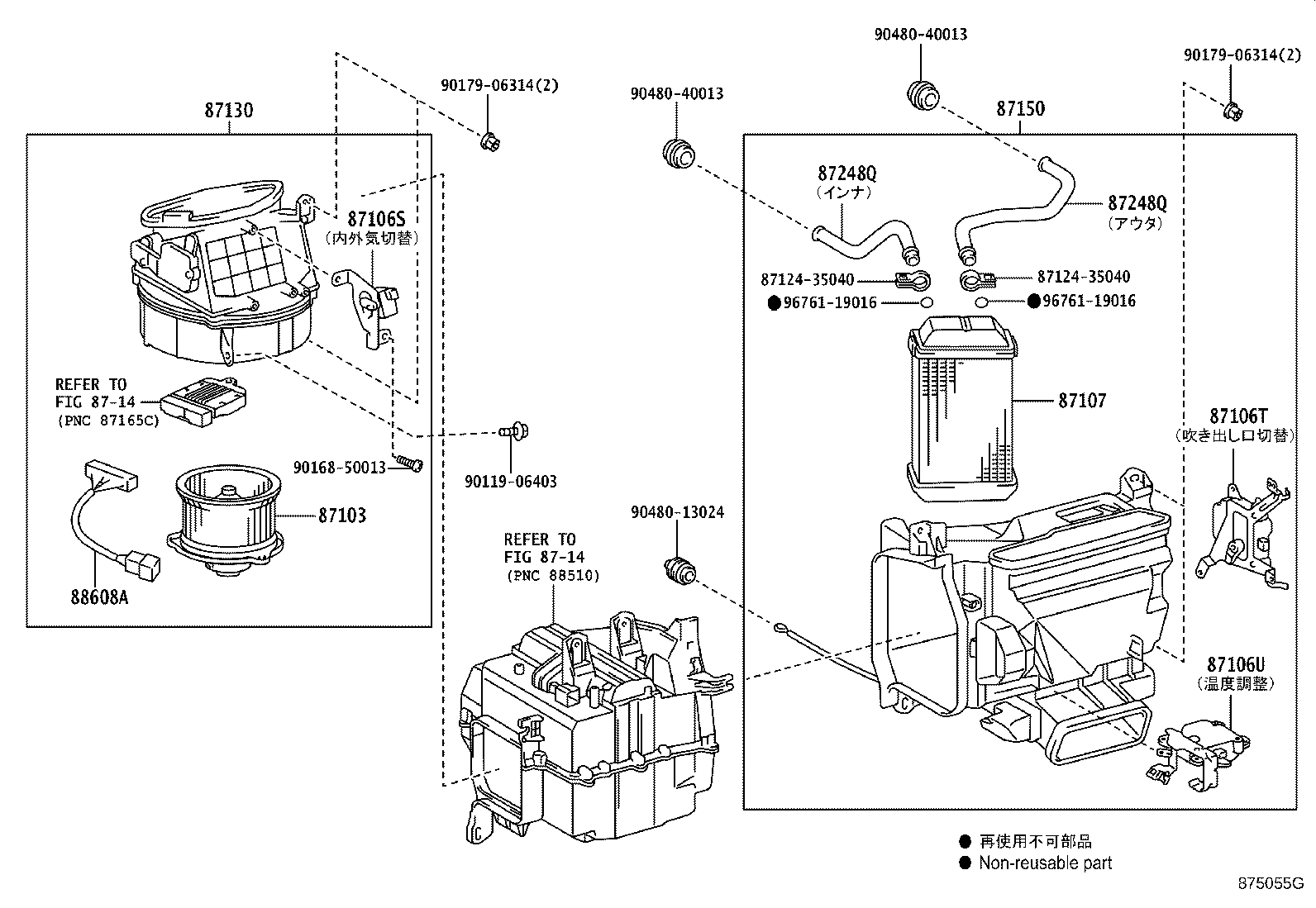

Click highlighted areas on diagram

ｵｰﾄ ｴｱｺﾝ

diagram 87103 87106S 87106T 87106U 87107 8712435040 8712435040 87130 8714 8714 87150 87248Q 87248Q 88608A 9011906403 9016850013 9017906314 9017906314 9048013024 9048040013 9048040013 9676119016 9676119016
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-22020

GXS12

 1
87106S - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-43010

GXS12

 1
87106T - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-43030

GXS12

 1
87106U - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-43021

GXS12

 1
87106-43020

GBS12,GXS12,YXS10..SED

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-43010

GBS12,GXS12,YXS1#..4FC,5F

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-43030

GXS12

 1
87150 - RADIATOR ASSY, HEATER
87150-43030

GBS12,GXS12,YXS10..SED..4FC

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87248-43010

GXS12

内側

 1
87248-43020

GXS12

外側

 1
87248Q - PIPE, FRONT HEATER RADIATOR WATER
87248-43010

GXS12

内側

 1
87248-43020

GXS12

外側

 1
88608A - HARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2
88608-43010

GXS12

 1
Common parts
87124-35040
90119-06403
90168-50013
90179-06314
90480-13024
90480-40013
96761-19016
Linked diagrams
8714
