CROWN COMFORT/SED
GXS12-CEPFK (2001)
8401 - SWITCH & RELAY & COMPUTER

GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007

Engine 1GFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

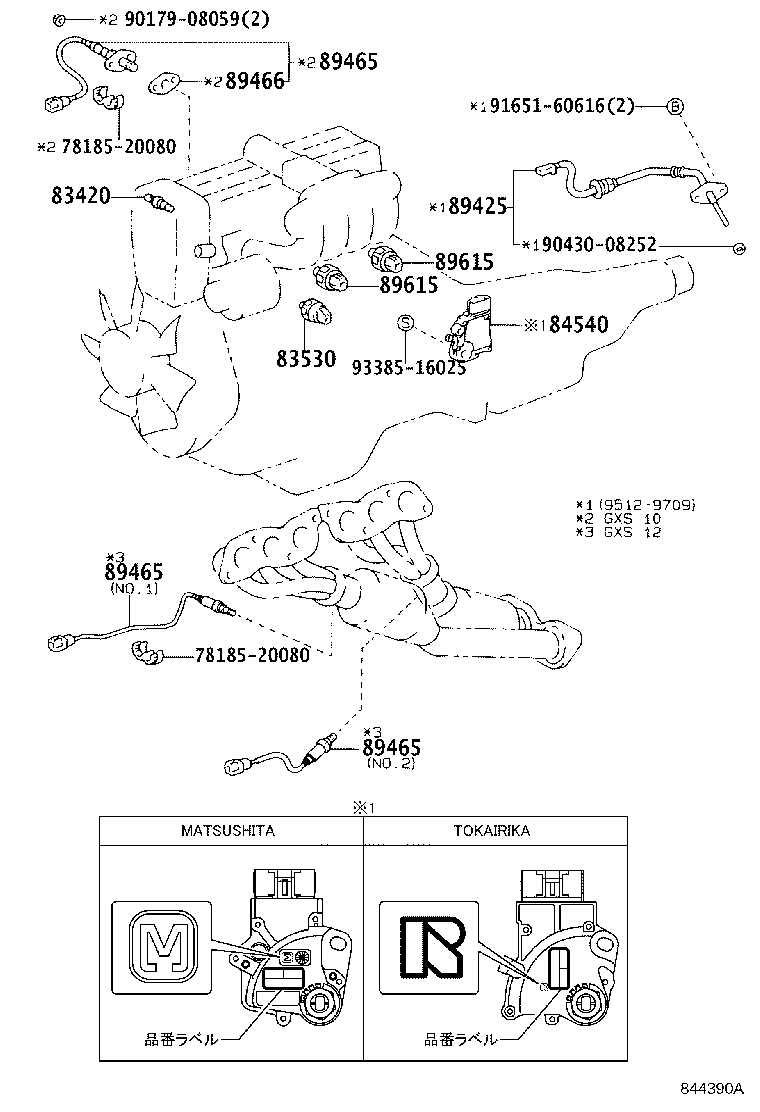

ILLUST NO. 1 OF 6(9512-0708)GXS1#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ

Part #	Description	Period	Qty
89465 - SENSOR, OXYGEN
89465-43040	GXS12 NO.1	08/2001 - 08/2007	1
89465-43050	GXS12 NO.2	08/2001 - 08/2007	1
89465 - SENSOR, OXYGEN
89465-43040	GXS12 NO.1	08/2001 - 08/2007	1
89465-43050	GXS12 NO.2	08/2001 - 08/2007	1
89465 - SENSOR, OXYGEN
89465-43040	GXS12 NO.1	08/2001 - 08/2007	1
89465-43050	GXS12 NO.2	08/2001 - 08/2007	1
89615 - SENSOR, KNOCK CONTROL
89615-52010	GXS12	09/2003 - 08/2007	2
89615-22050	GBS12,GXS12	08/2001 - 09/2003	2
89615 - SENSOR, KNOCK CONTROL
89615-52010	GXS12	09/2003 - 08/2007	2
89615-22050	GBS12,GXS12	08/2001 - 09/2003	2
Common parts
78185-20080
90179-08059
90430-08252
91651-60616
93385-16025

ILLUST NO. 2 OF 6(0108- )GXS1#,SXS13,YXS1#

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10020	1GFE..GXS12	08/2001 - 08/2007	1
82600F - FUSE, FUSE BLOCK
90982-09008	GBS12,GXS12,SXS13,YXS1# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	08/2001 - 05/2004	1
90982-09004	GBS12,GXS12,SXS13,YXS1# 20A,黄	08/2001 - 05/2004	1
90982-09003	GBS12,GXS12,SXS13,YXS1# 15A	08/2001 - 05/2004	1
90982-09002	GBS12,GXS12,SXS13,YXS1# 10A	08/2001 - 05/2004	1
90982-09005	GBS12,GXS12,SXS13,YXS1# 7.5A	08/2001 - 05/2004	1
90982-09002	GXS12 10A	06/2004 - 08/2007	1
90982-09011	GXS12 20A,ﾐﾆﾋｭｰｽﾞ,黄	08/2001 - 08/2007	1
90982-09004	GXS12 20A,黄	06/2004 - 08/2007	1
90982-09009	GXS12 10A,ﾐﾆﾋｭｰｽﾞ,赤	08/2001 - 08/2007	1
90982-09008	GXS12 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 08/2007	1
90982-09007	GXS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	08/2001 - 08/2007	1
90982-09005	GXS12 7.5A	06/2004 - 08/2007	1
90982-09003	GXS12 15A	06/2004 - 08/2007	1
90982-09010	GXS12 15A,ﾐﾆﾋｭｰｽﾞ,青	08/2001 - 08/2007	1
82600F - FUSE, FUSE BLOCK
90982-09008	GBS12,GXS12,SXS13,YXS1# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	08/2001 - 05/2004	1
90982-09004	GBS12,GXS12,SXS13,YXS1# 20A,黄	08/2001 - 05/2004	1
90982-09003	GBS12,GXS12,SXS13,YXS1# 15A	08/2001 - 05/2004	1
90982-09002	GBS12,GXS12,SXS13,YXS1# 10A	08/2001 - 05/2004	1
90982-09005	GBS12,GXS12,SXS13,YXS1# 7.5A	08/2001 - 05/2004	1
90982-09002	GXS12 10A	06/2004 - 08/2007	1
90982-09011	GXS12 20A,ﾐﾆﾋｭｰｽﾞ,黄	08/2001 - 08/2007	1
90982-09004	GXS12 20A,黄	06/2004 - 08/2007	1
90982-09009	GXS12 10A,ﾐﾆﾋｭｰｽﾞ,赤	08/2001 - 08/2007	1
90982-09008	GXS12 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 08/2007	1
90982-09007	GXS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	08/2001 - 08/2007	1
90982-09005	GXS12 7.5A	06/2004 - 08/2007	1
90982-09003	GXS12 15A	06/2004 - 08/2007	1
90982-09010	GXS12 15A,ﾐﾆﾋｭｰｽﾞ,青	08/2001 - 08/2007	1
82602 - BLOCK SUB-ASSY, RELAY
82602-43040	GXS1#,YXS1# NO.1	08/2001 - 10/2002	1
82602-43040	GXS12 NO.1	10/2002 - 08/2007	1
82610A - BLOCK ASSY, FUSE
82610-20080	GXS1#,YXS1# NO.2	08/2001 - 10/2002	1
82610-43011	GXS12 NO.1	06/2004 - 08/2007	1
82610-43011	GBS12,GXS12,SXS13,YXS1# NO.1	08/2001 - 05/2004	1
82610-20080	GXS12 NO.2	10/2002 - 08/2007	1
82616 - PULLER, FUSE
82616-20010	GXS12	08/2001 - 08/2007	1
82660D - BLOCK ASSY, RELAY
82660-20340	GXS12	08/2001 - 08/2007	1
82661 - COVER, RELAY BLOCK, NO.1
82661-43010	GXS12	08/2001 - 08/2007	1
82670A - BLOCK ASSY, JUNCTION, NO.1
82720-43050	GXS12	08/2001 - 08/2007	1
82672A - COVER, JUNCTION BLOCK
82672-43050	GXS12	08/2001 - 08/2007	1
82673A - BRACKET, JUNCTION BLOCK
82673-43010	GXS12	08/2001 - 08/2007	1
82674 - COVER, JUNCTION BLOCK LOWER
82674-43010	GXS12	08/2001 - 08/2007	1
85916P - RELAY, HEADLAMP
90987-02006	GXS12	08/2001 - 08/2007	1
85934 - RELAY, MAGNET-CLUTCH
90987-02028	GXS12 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02028	08/2001 - 08/2007	1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	GXS12	08/2001 - 08/2007	1
Common parts
90119-06005
90179-06128
91511-B0814
91515-G0616
91631-B0616
Linked diagrams
1901
8202
8404

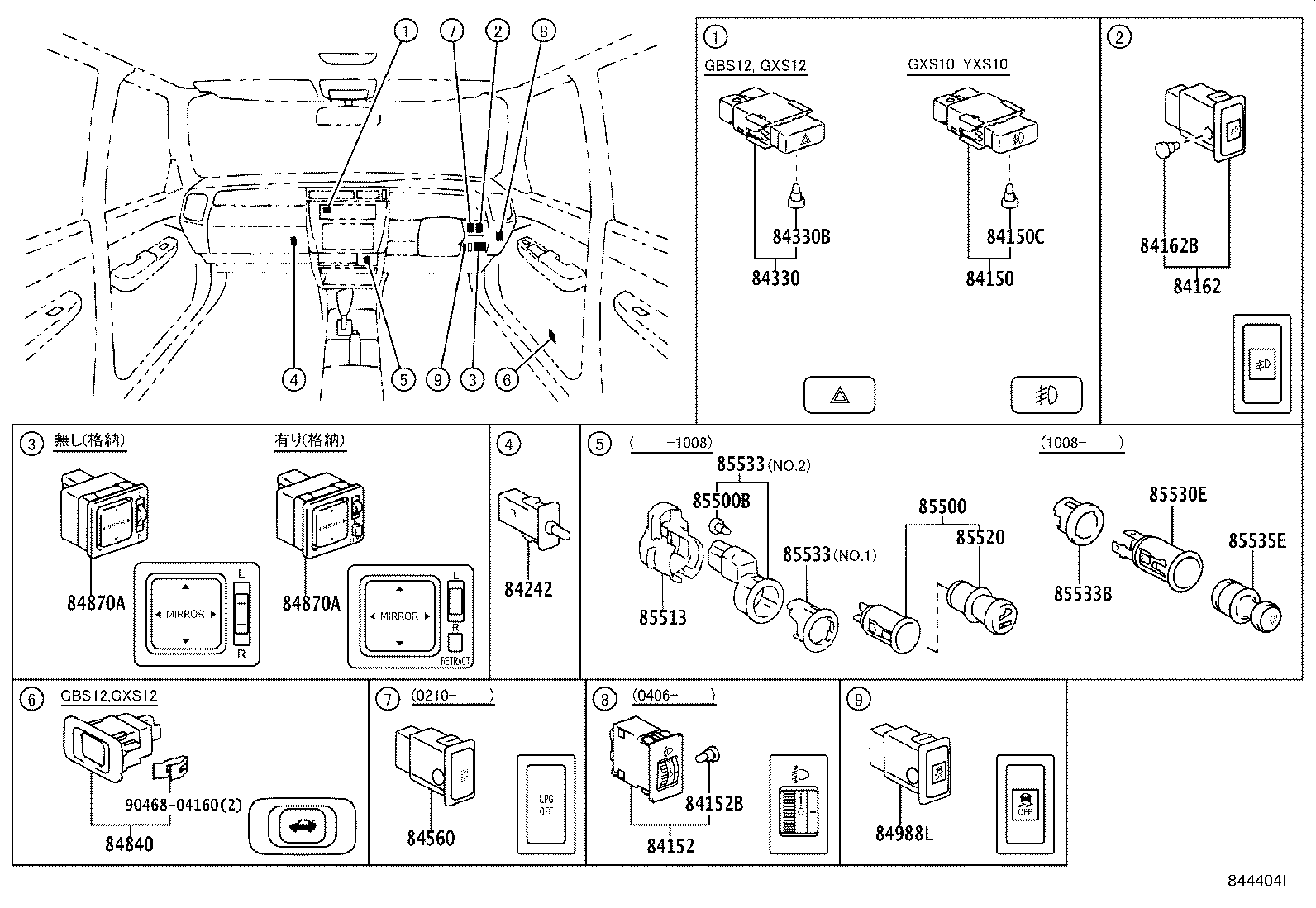

ILLUST NO. 4 OF 6(0108- )SED

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｽｲﾂﾁ

Part #	Description	Period	Qty
84152 - SWITCH, HEADLAMP LEVELING
84152-47010	GXS12	06/2004 - 08/2007	1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08100	GXS12 14V 40MA,ｸﾞﾘｰﾝ	06/2004 - 08/2007	1
84162 - SWITCH, FRONT FOG LAMP
84160-95D00	GXS12	08/2001 - 08/2007	1
84162B - BULB, FOG LAMP SWITCH
84999-10320	GXS12 14V 0.84W	08/2001 - 08/2007	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20350	GXS12	08/2001 - 08/2007	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	GXS12 14V 0.91W	08/2001 - 08/2007	1
Common parts
90468-04160
