GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

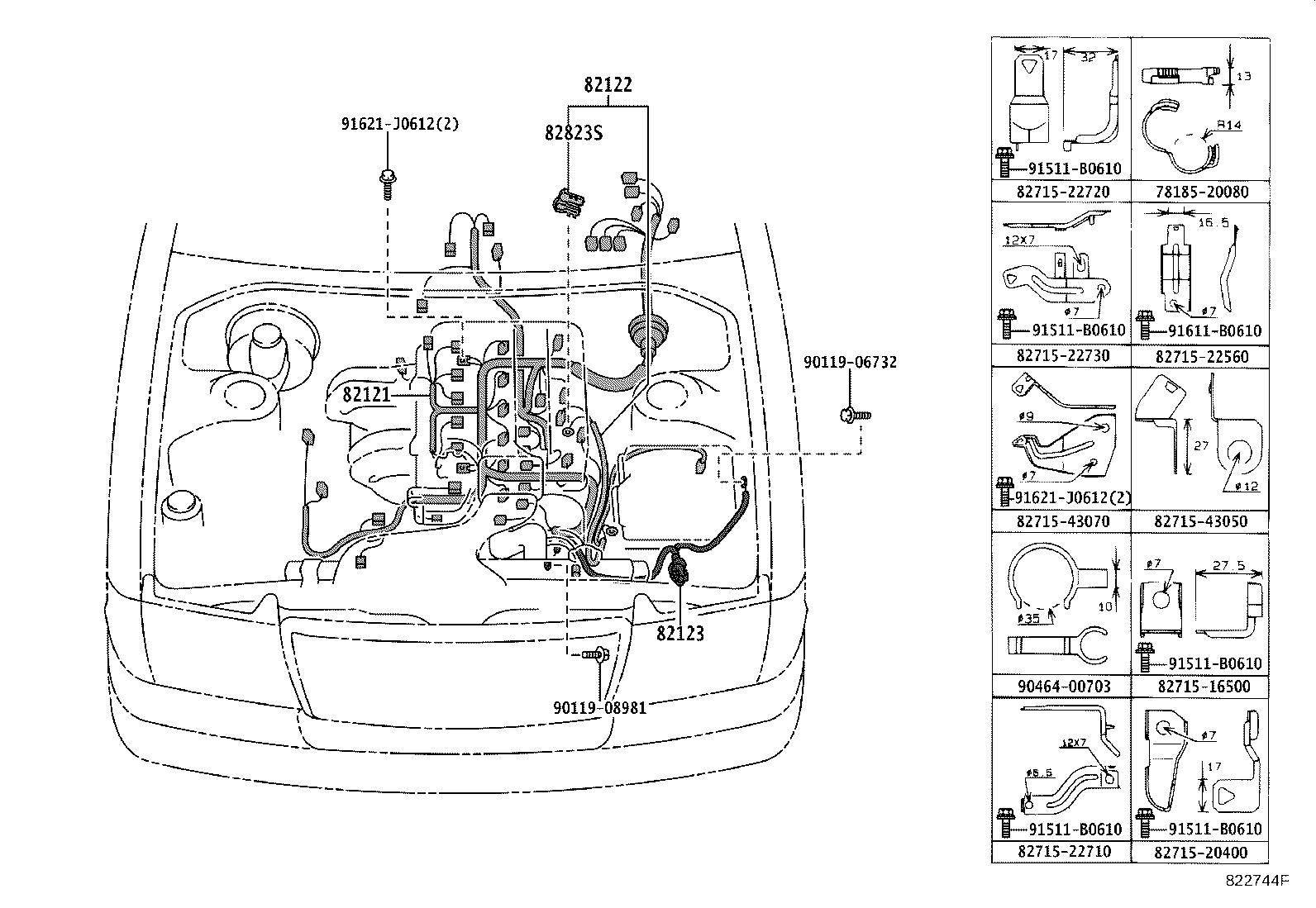

ILLUST NO. 2 OF10(0108- )GXS12

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 7818520080 82121 82122 82123 8271516500 8271520400 8271522560 8271522710 8271522720 8271522730 8271543050 8271543070 82823S 9011906732 9011908981 9046400703 91511B0610 91511B0610 91511B0610 91511B0610 91511B0610 91611B0610 91621J0612 91621J0612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-43120

GXS12

 1
82122 - WIRE, ENGINE, NO.2
82122-43060

GXS12

 1
82123 - WIRE, ENGINE, NO.3
82123-43060

GXS12

 1
82123-43050

GXS12

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23R)

 1
Common parts
78185-20080
82715-16500
82715-20400
82715-22560
82715-22710
82715-22720
82715-22730
82715-43050
82715-43070
90119-06732
90119-08981
90464-00703
91511-B0610
91611-B0610
91621-J0612
