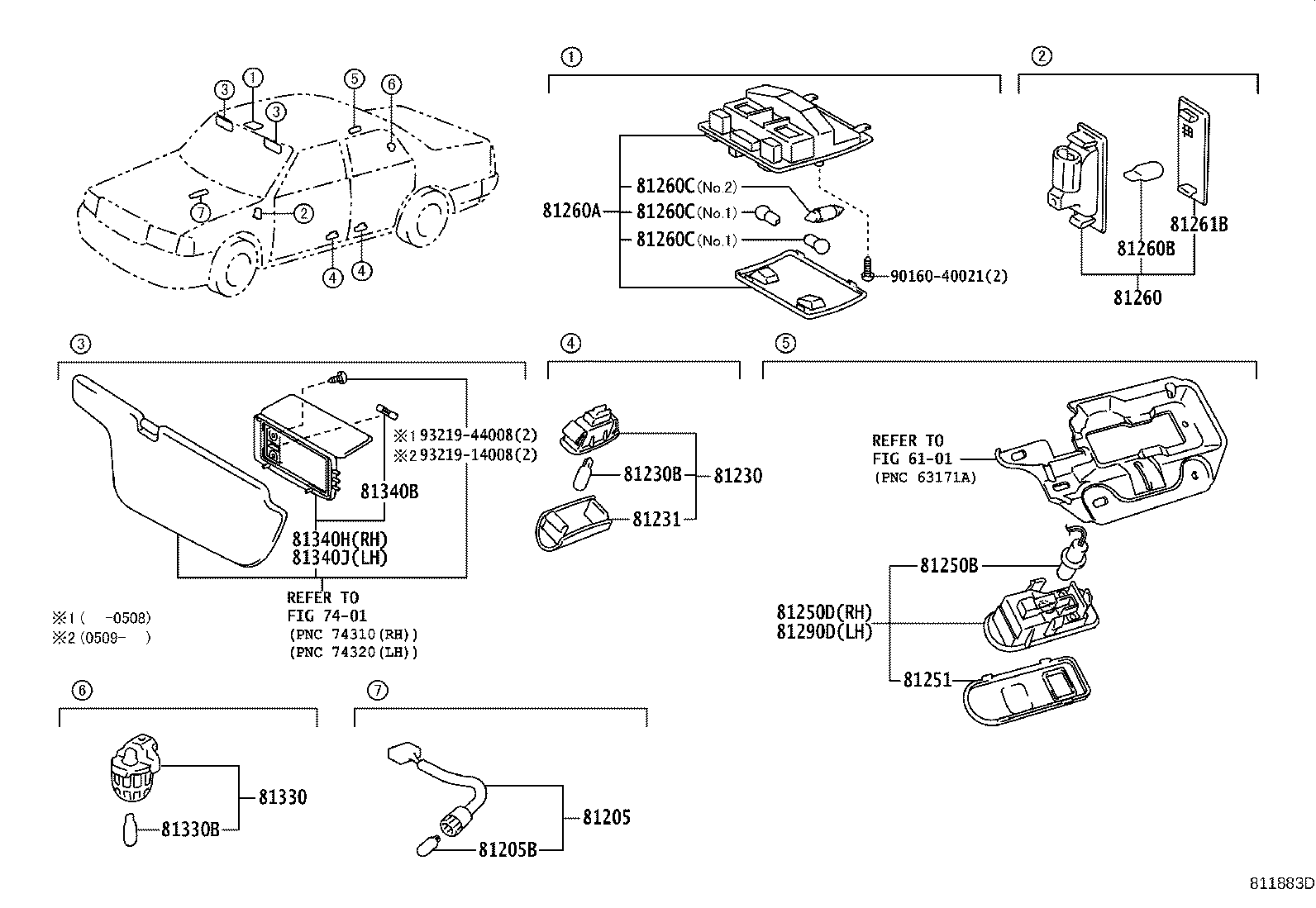

Toyota Crown comfort/sed GXS12 INTERIOR LAMP

Part #	Description	Period	Qty
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81850-33010	GXS12	08/2001 - 08/2007	1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014	GXS12 14V 1.4W	08/2001 - 08/2007	1
81230 - LAMP ASSY, COURTESY
81230-30150	GXS12	08/2001 - 08/2007	4
81230B - BULB(FOR COURTESY LAMP)
90981-11020	GXS12 12V 3.8W	08/2001 - 08/2007	4
81231 - LENS, COURTESY LAMP
81231-30150	GXS12	08/2001 - 08/2007	4
81250B - BULB, ROOM LAMP, NO.2
99132-12050	GXS12 12V 5W	08/2001 - 08/2007	2
81251 - LENS, ROOM LAMP, NO.2
81251-30120	GXS12	08/2001 - 08/2007	2
81260 - LAMP ASSY, GLOVE BOX
81260-50010	GXS12	08/2001 - 08/2007	1
81260B - BULB(FOR GLOVE BOX)
90981-11018	GXS12 12V 1.2W ｿｹｯﾄ無し	08/2001 - 08/2007	1
81261B - LENS,GLOVE BOX LAMP
81261-50010	GXS12	08/2001 - 08/2007	1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090	GXS12	08/2001 - 08/2007	1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020	GXS12 12V 3.8W	08/2001 - 08/2007	1
81340B - BULB (FOR VANITY LAMP)
90981-14003	GXS12 12V 1.5W	08/2001 - 08/2007	2
Common parts
90160-40021
93219-14008
93219-44008
Linked diagrams
6101
7401

GXS12-CEPFK (2001)
