GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

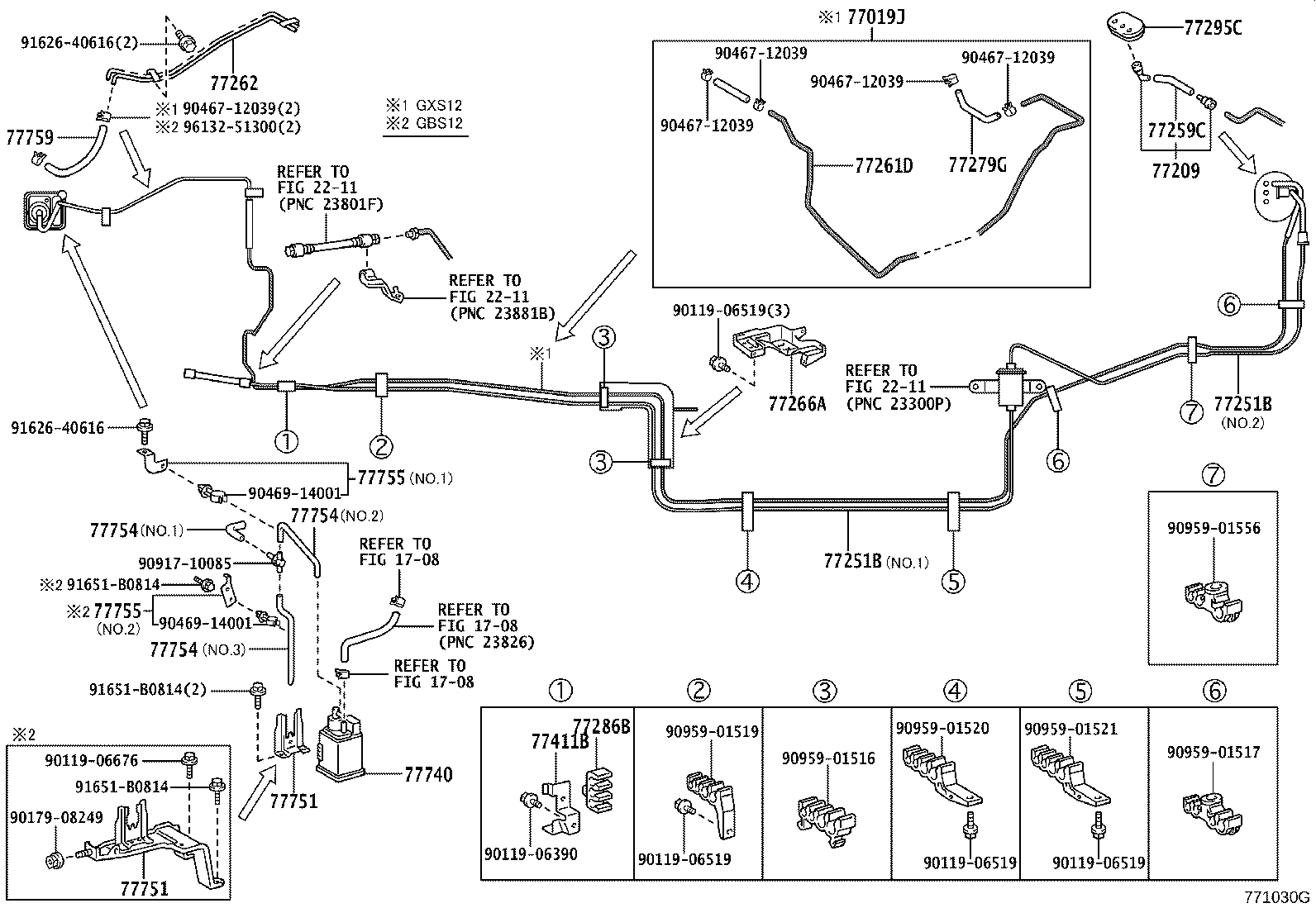

ILLUST NO. 2 OF 2(0108- )GBS12,GXS12
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-43040 |
GXS12 |
1 | ||
| 77019-43030 |
GXS12 |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-43010 |
GXS12 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-43070 |
GXS12 NO.1 |
1 | ||
| 77252-43031 |
GXS12 NO.2 |
1 | ||
| 77252-43030 |
GXS12 NO.2 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-43070 |
GXS12 NO.1 |
1 | ||
| 77252-43031 |
GXS12 NO.2 |
1 | ||
| 77252-43030 |
GXS12 NO.2 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-43040 |
GXS12 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-43030 |
GXS12 |
1 | ||
| 77261-43020 |
GXS12 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77026-43010 |
GXS12 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-43020 |
GXS12 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-43030 |
GXS12 |
1 | ||
| 77279-43040 |
GXS12 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-30060 |
GXS12 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-43030 |
GXS12 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22020 |
GXS12 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48090 |
GXS12 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-43020 |
GXS12 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-43020 |
GXS12 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-43020 |
GXS12 NO.1 |
1 | ||
| 77754-43030 |
GXS12 NO.2 |
1 | ||
| 77754-43040 |
GXS12 NO.3 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-43020 |
GXS12 NO.1 |
1 | ||
| 77754-43030 |
GXS12 NO.2 |
1 | ||
| 77754-43040 |
GXS12 NO.3 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-43020 |
GXS12 NO.1 |
1 | ||
| 77754-43030 |
GXS12 NO.2 |
1 | ||
| 77754-43040 |
GXS12 NO.3 |
1 | ||
| 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-43010 |
GXS12 NO.1 |
1 | ||
| 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-43010 |
GXS12 NO.1 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-43010 |
GXS12 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06519 | ||||
| 90119-06676 | ||||
| 90179-08249 | ||||
| 90467-12039 | ||||
| 90469-14001 | ||||
| 90917-10085 | ||||
| 90959-01516 | ||||
| 90959-01517 | ||||
| 90959-01519 | ||||
| 90959-01520 | ||||
| 90959-01521 | ||||
| 90959-01556 | ||||
| 91626-40616 | ||||
| 91651-B0814 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

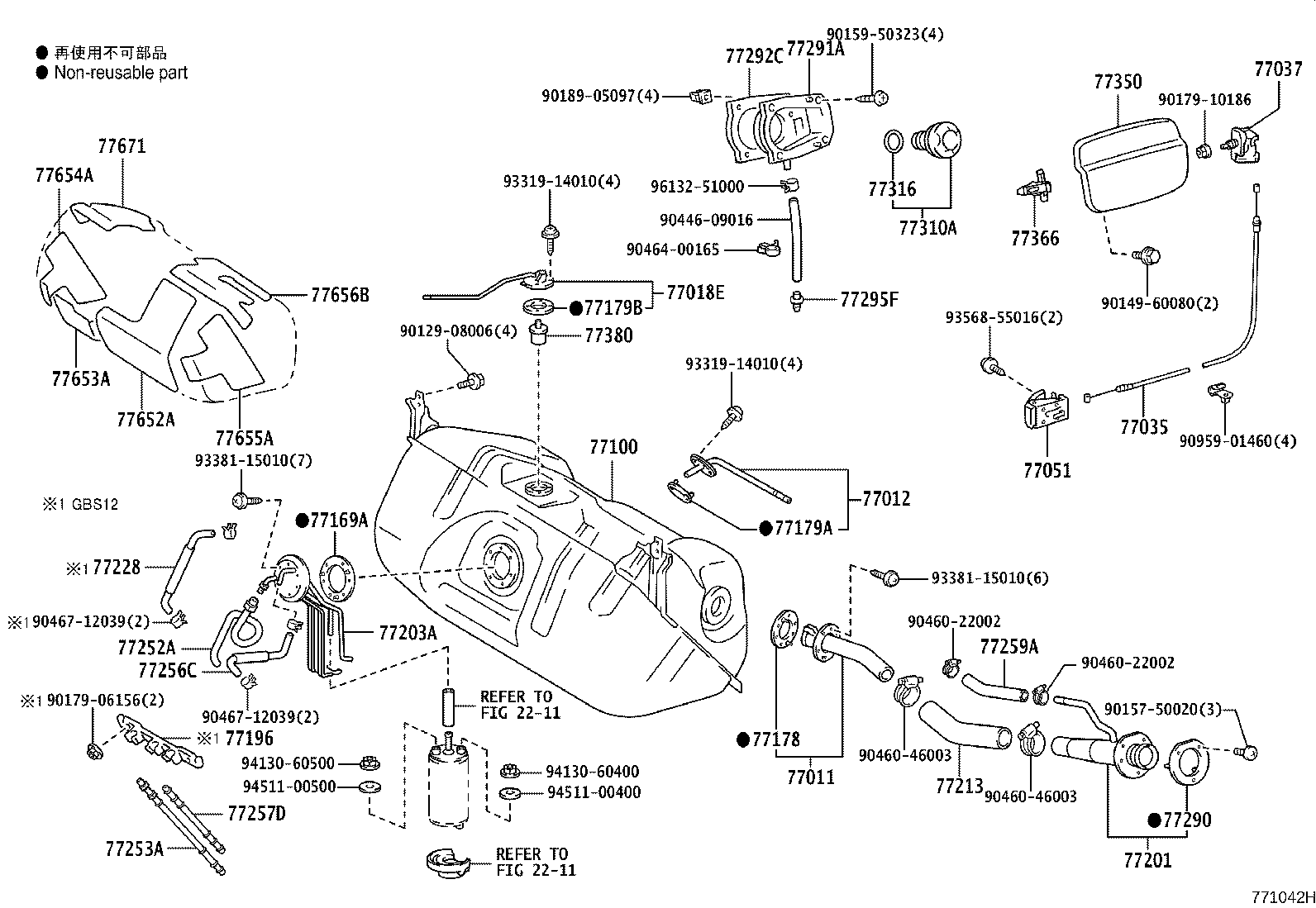

ILLUST NO. 1 OF 2(0108- )GBS12,GXS12
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-43010 |
GXS12 |
2 | ||
| 77011-43010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-43010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77012-43010 |
GXS12 |
2 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-43010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77018-43010 |
GXS12 |
2 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-43010 |
GXS12 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
GXS12 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-43021 |
GXS12 |
1 | ||
| 77001-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
GXS12 |
1 | ||
| 77169-14010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
GXS12 |
2 | ||
| 77178-20010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
GXS12 |
2 | ||
| 77179-20040 |
GBS12,GXS12,SXS13 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
GXS12 |
2 | ||
| 77179-26010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-43010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77196-43010 |
GXS12 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-43020 |
GXS12 |
1 | ||
| 77201-43060 |
GXS12 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-43020 |
GBS12,GXS12 |
1 | ||
| 77203-43020 |
GXS12 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-43020 |
GXS12 |
1 | ||
| 77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2 | ||||
| 77228-43010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77228-43010 |
GXS12 |
2 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77252-43020 |
GXS12 |
2 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-43020 |
GXS12 |
2 | ||
| 77253-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77256-43020 |
GXS12 |
2 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 77257-43010 |
GBS12,GXS12 |
1 | ||
| 77257-43010 |
GXS12 |
2 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 95311-13019 |
GXS12 長さ=190 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30050 |
GXS12 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-30040 |
GXS12 |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77292-30030 |
GXS12 |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-43020 |
GXS12 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
GXS12 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GXS12 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-43010 |
GXS12 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77380-26010 |
GXS12 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77652-43020 |
GXS12 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77653-43020 |
GXS12 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77654-43020 |
GXS12 |
1 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77655-43020 |
GXS12 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-43020 |
GXS12 |
1 | ||
| 77656-43020 |
GBS12,GXS12,SXS13 |
1 | ||
| 77671 - CUSHION, FUEL TANK TO COVER | ||||
| 77671-43010 |
GBS12,GXS12,SXS13 |
1 | ||
| 77671-43010 |
GXS12 |
1 | ||
| Common parts | ||||
| 90129-08006 | ||||
| 90149-60080 | ||||
| 90157-50020 | ||||
| 90159-50323 | ||||
| 90179-06156 | ||||
| 90179-10186 | ||||
| 90189-05097 | ||||
| 90446-09016 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00165 | ||||
| 90467-12039 | ||||
| 90959-01460 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93568-55016 | ||||
| 94130-60400 | ||||
| 94130-60500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 2211 | ||||
