GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0108- )YXS10 ; (0108- )GBS12,GXS1#,TSS10,YXS11..SED,TAX..SAL,SDX,STD

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ

diagram 74230A 74240A 74270 74280 74620C 74630C 74630E 74640C 9015960281 9015960281 9015960281 9018906030 9018906030 9018906030 9046804160 9046804160 9046804160
Part # Description Qty Price
74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH
74230-43020

GXS12

 1
74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH
74240-43020

GXS12

 1
74240-43010

GXS12

ﾓｸﾒ

 1
74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH
74270-43010

GXS12

ﾓｸﾒ

 1
74270-43020

GXS12

 1
74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH
74280-43010

GXS12

ﾓｸﾒ

 1
74280-43020

GXS12

 1
Common parts
90159-60281
90189-06030
90468-04160

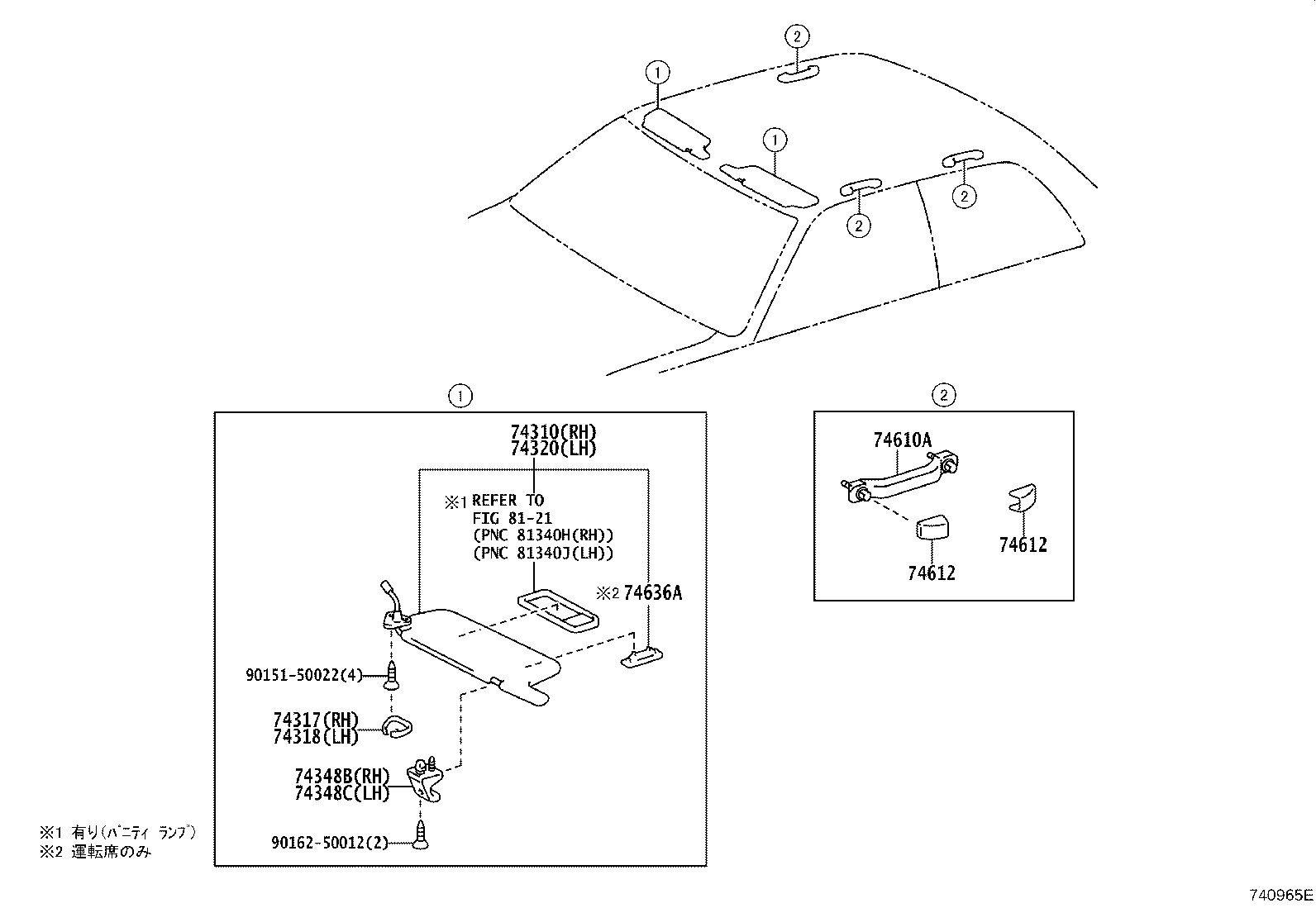

ILLUST NO. 2 OF 2(0108- )SED

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 74310 74317 74318 74320 74348B 74348C 74610A 74612 74612 74636A 8121 9015150022 9016250012
Part # Description Qty Price
74320 - VISOR ASSY, LH
74320-43050B1

GXS12

LIGHT GRAY,TRIM1#

 1
Common parts
90151-50022
90162-50012
Linked diagrams
8121
