GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

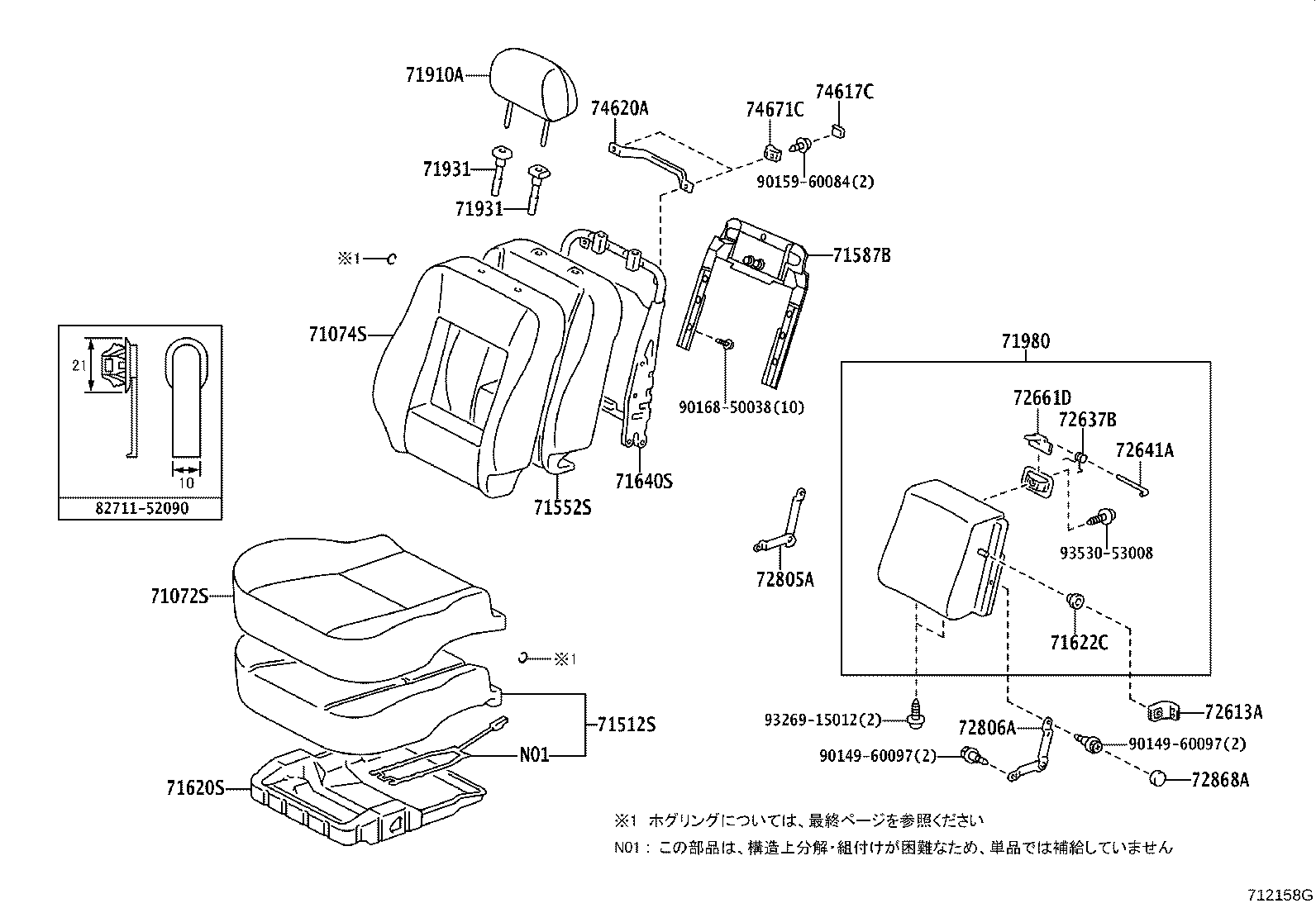

ILLUST NO. 1 OF 3(0108- )SED..4FC

Click highlighted areas on diagram

ｱﾘ(ｼ-ﾄ ﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ)

diagram 71072S 71074S 71512S 71552S 71587B 71620S 71622C 71640S 71910A 71931 71931 71980 72613A 72637B 72641A 72661D 72805A 72806A 72868A 74617C 74620A 74671C 8271152090 9014960097 9014960097 9015960084 9016850038 9326915012 9353053008
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-43300B1

GBS12,GXS12,YXS10..SED..4FC

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM10

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-43190B1

GBS12,GXS12,YXS10..SED..4FC

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-43010

GXS12

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-43071

GXS12

 1
71552-43050

GBS12,GXS12,YXS10..4FC..SDX

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ)

 1
71552-43051

GXS12

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ)

 1
71552-43070

GBS12,GXS12,YXS10..4FC..SDX

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-43010

GXS12

 1
71587-43030

GXS12

ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ)

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71012-43080

GXS12

 1
71622C - BUSH, FRONT SEAT BACK PROTECTOR SHAFT
72622-91401B5

GBS12,GXS12,YXS10..SED..4FC

DK.GRAY,TRIM1#

 2
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-43110

GBS12,GXS12,YXS10..4FC..SDX

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ)

 1
71013-43070

GBS12,GXS12,YXS10..4FC..SDX

 1
71013-43100

GXS12

 1
71014-43111

GXS12

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ)

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-3A240B2

GBS12,GXS1#,YXS10..4FC..SDX

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ) & ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#,助手席

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-30030B6

GBS12,GXS1#,YXS10..SED

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71931-47010B2

GXS12,SXS13

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-44020B0

GXS12,SXS13

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71930-30110B6

GBS12,GXS1#,YXS10..SED

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-30030B6

GBS12,GXS1#,YXS10..SED

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71931-47010B2

GXS12,SXS13

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71930-44020B0

GXS12,SXS13

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71930-30110B6

GBS12,GXS1#,YXS10..SED

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71980 - FOOTREST ASSY, FRONT SEAT, NO.1
71980-43020B1

GBS12,GXS12,YXS10..SED..4FC

DK.GRAY,TRIM1#

 1
71980-43020B0

GBS12,GXS12,YXS10..SED..4FC

DK.GRAY,TRIM10

 1
72613A - STRIKER, FRONT SEAT LOCK
72613-91401B6

GBS12,GXS12,YXS10..SED..4FC

DK.GRAY,TRIM1#

 2
72637B - SPRING, FRONT SEAT BACK LOCK, RH
72637-91401

GBS12,GXS12,YXS10..SED..4FC

 1
72637-91401

GXS12

 1
72641A - PIN, FRONT SEAT BACK LOCK
72641-91401

GBS12,GXS12,YXS10..SED..4FC

 1
72641-91401

GXS12

 1
72661D - LEVER, FRONT SEAT BACK LOCK
72661-91401B2

GBS12,GXS12,YXS10..SED..4FC

DK.GRAY,TRIM1#

 1
72805A - LINK SUB-ASSY, FRONT SEAT FOOTREST, RH
72805-30060

GBS12,GXS12,YXS10..SED..4FC

 1
72805-40020

GXS12

 1
72806A - LINK SUB-ASSY, FRONT SEAT FOOTREST, LH
72806-40010

GXS12

 1
72806-30060

GBS12,GXS12,YXS10..SED..4FC

 1
72868A - COVER, CENTER ARMREST HINGE
72868-40010

GXS12

 4
72868-30030

GBS12,GXS12,YXS10..SED..4FC

 2
74617C - PLUG, ASSIST GRIP
74617-30020B4

GBS12,GXS1#,SXS13,YXS1#

DK.GRAY,TRIM1#

 4
74620A - GRIP ASSY, ASSIST, REAR
74620-30050B4

GBS12,GXS1#,SXS13,YXS1#

DK.GRAY,TRIM1#

 2
74671C - SUPPORT, ASSIST GRIP
74671-30010

GBS12,GXS12,SXS13,YXS1#

 4
74671-40010

GXS12

 4
Common parts
82711-52090
90149-60097
90159-60084
90168-50038
93269-15012
93530-53008
