GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

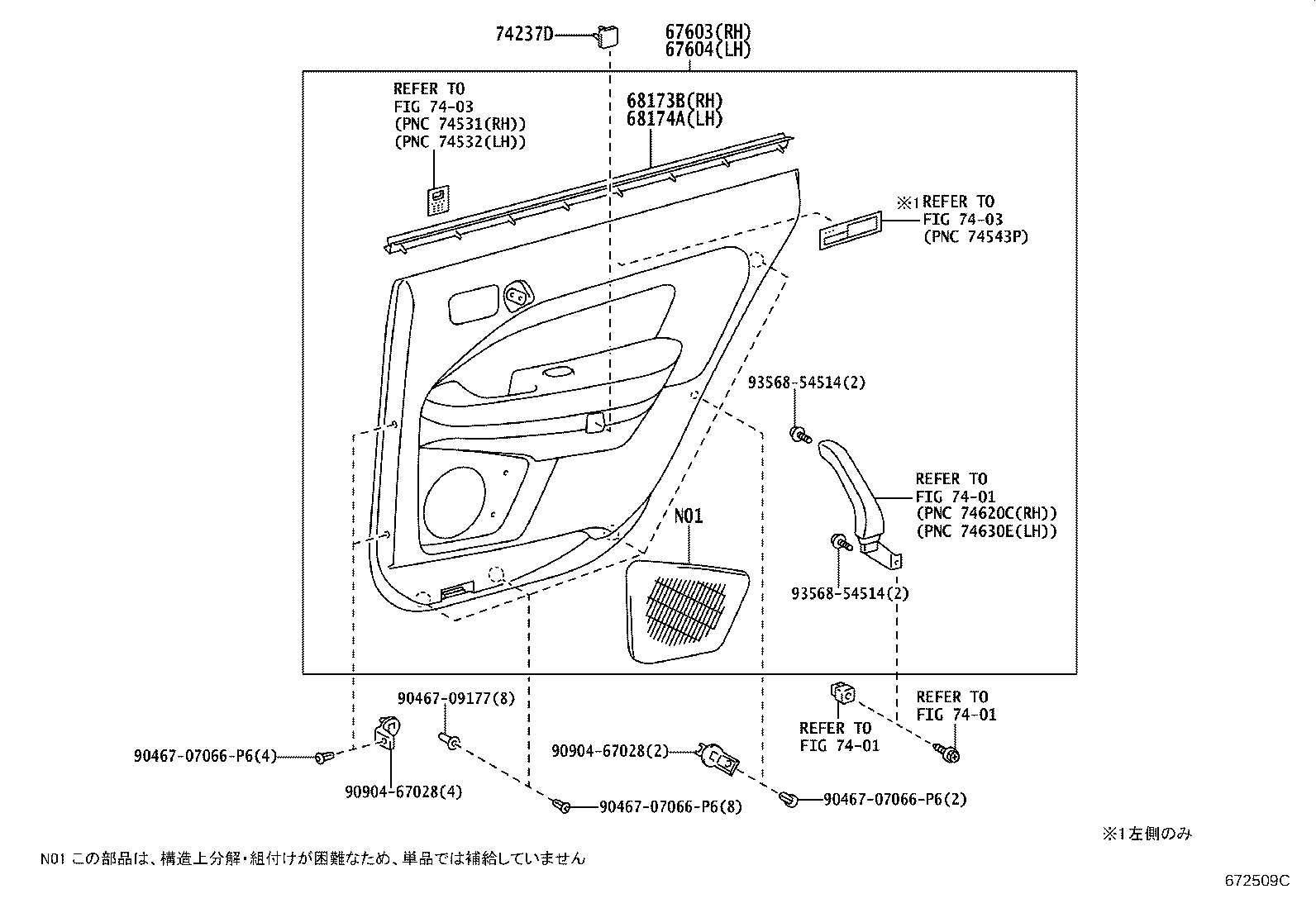

ILLUST NO. 2 OF 2(0108- )SED

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 67603 67604 68173B 68174A 7401 7401 7401 7403 7403 74237D 9046707066P6 9046707066P6 9046707066P6 9046709177 9090467028 9090467028 9356854514 9356854514
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-43070B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM1#

 1
67630-43070B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-43220B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104 & ｸﾗｳﾝｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2,DARK GRAY,TRIM1#

 1
67640-43170B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM10

 1
67640-43170B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM1#

 1
67640-43220B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104 & ｸﾗｳﾝｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2,DARK GRAY,TRIM1#

 1
Common parts
90467-07066P6
90467-09177
90904-67028
93568-54514
Linked diagrams
7401
7403
