GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

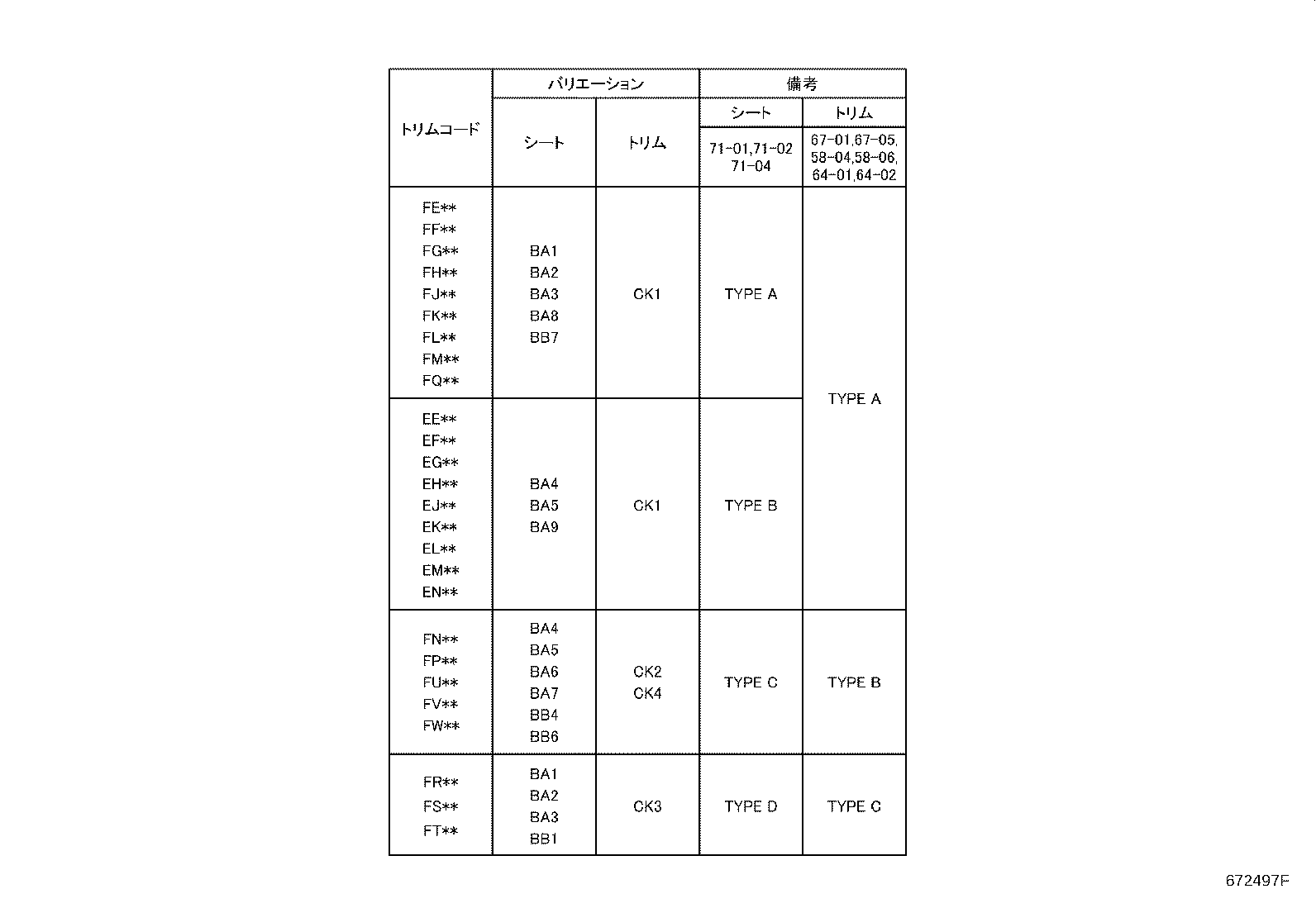

ILLUST NO. 3 OF 3(0108-0706)4H ; (0108-0706)YXS10..SED..4HC ; (0108-0708)GXS12,SXS13 ; (0108-0808)CR

Click highlighted areas on diagram

ﾄﾘﾑｺｰﾄﾞ

diagram
Part # Description Qty Price

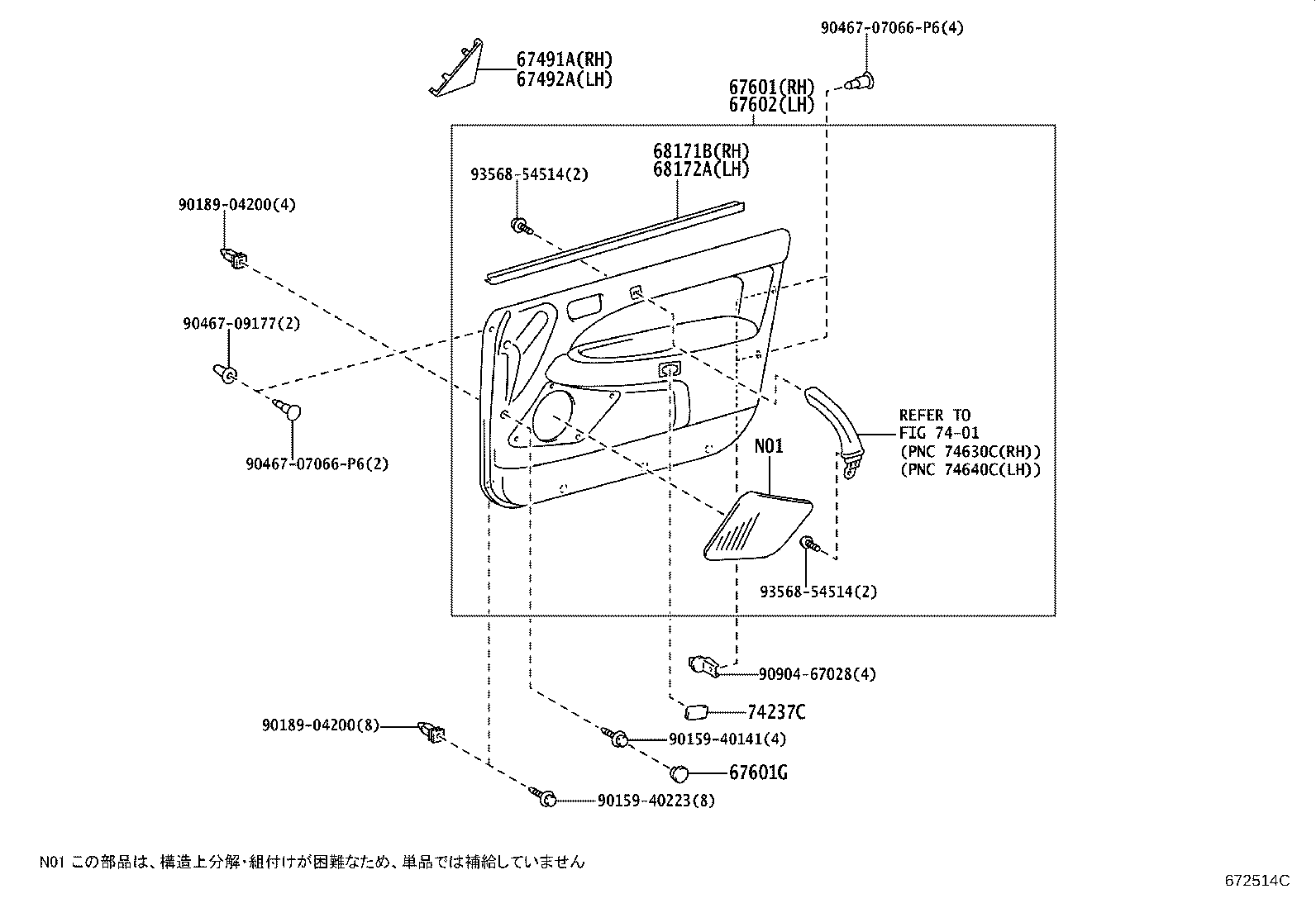

ILLUST NO. 2 OF 3(0108- )SED

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 67491A 67492A 67601 67601G 67602 68171B 68172A 7401 74237C 9015940141 9015940223 9018904200 9018904200 9046707066P6 9046707066P6 9046709177 9090467028 9356854514 9356854514
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-43020

GXS12

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-43020

GXS12

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-43100B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM1#

 1
67610-43100B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-43140B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM1#

 1
67620-43140B1

GXS12

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DARK GRAY,TRIM1#

 1
Common parts
90159-40141
90159-40223
90189-04200
90467-07066P6
90467-09177
90904-67028
93568-54514
Linked diagrams
7401
