GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )GXS1#,TSS10,YXS10..SED

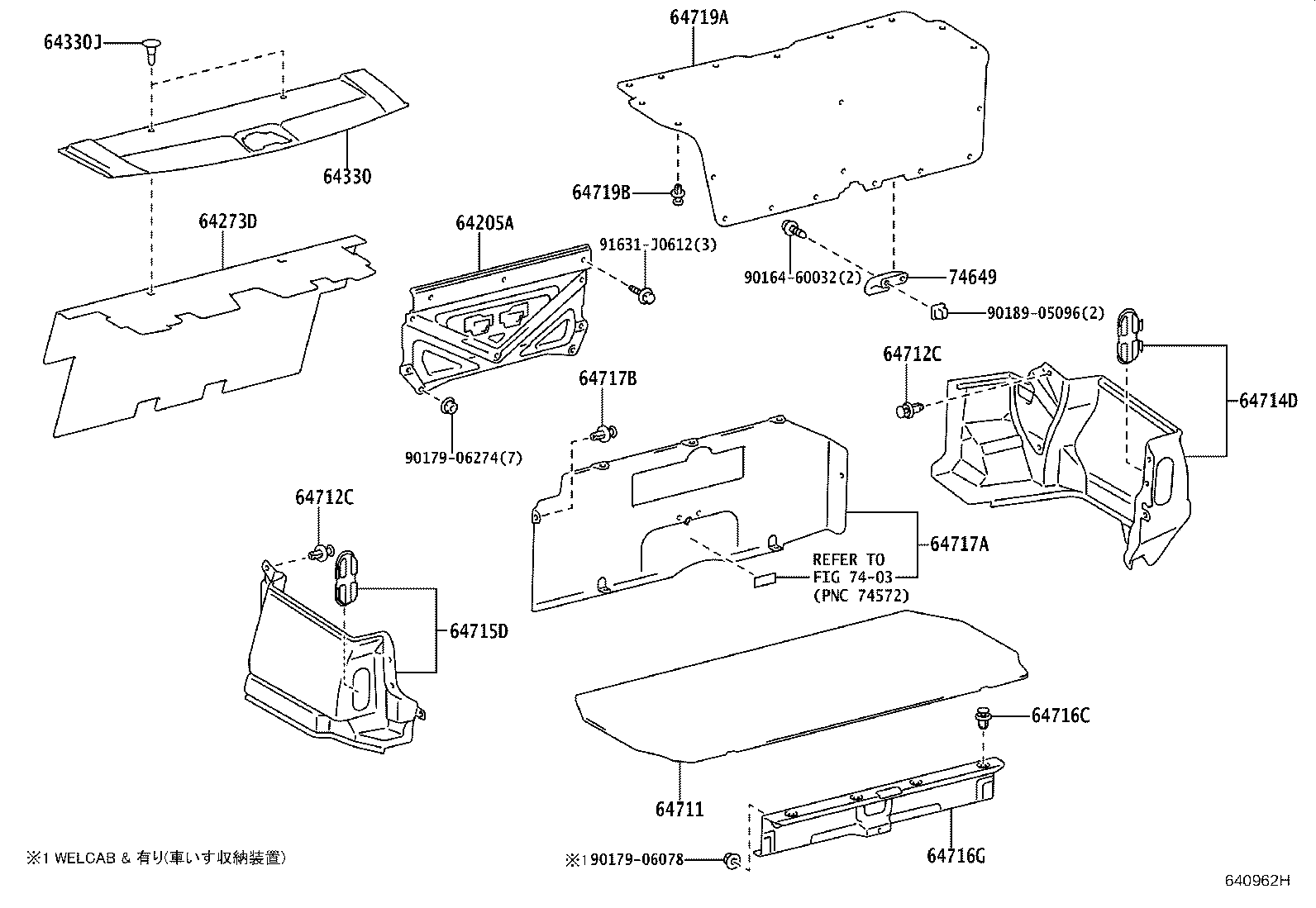

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64205A - COVER SUB-ASSY, ROOM PARTITION | ||||
| 64275-43010 |
GXS12 |
1 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-43020 |
GXS12 |
1 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-07117 |
GXS12 |
2 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-43050C0 |
GXS12 ｳｴﾙｷﾔﾌﾞ & ｱﾘ(ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ),BLACK,TRIM1# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08185 |
GXS12 ｳｴﾙｷﾔﾌﾞ & ｱﾘ(ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ) |
6 | ||
| 90467-08185 |
GXS12 |
7 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08185 |
GXS12 ｳｴﾙｷﾔﾌﾞ & ｱﾘ(ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ) |
6 | ||
| 90467-08185 |
GXS12 |
7 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-43040C0 |
GXS12 BLACK,TRIM1# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-08185 |
GXS12 ｳｴﾙｷﾔﾌﾞ & ｱﾘ(ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ) |
6 | ||
| 90467-08185 |
GXS12 |
7 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-43040C1 |
GXS12 BLACK,TRIM1# |
1 | ||
| 64717-43040C1 |
GXS12 BLACK,TRIM10 |
1 | ||
| 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-08185 |
GXS12 |
7 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
GXS12 BLACK,TRIM1# |
22 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010 |
GXS12 |
1 | ||
| Common parts | ||||
| 90164-60032 | ||||
| 90179-06078 | ||||
| 90179-06274 | ||||
| 90189-05096 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 7403 | ||||
