GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )SED

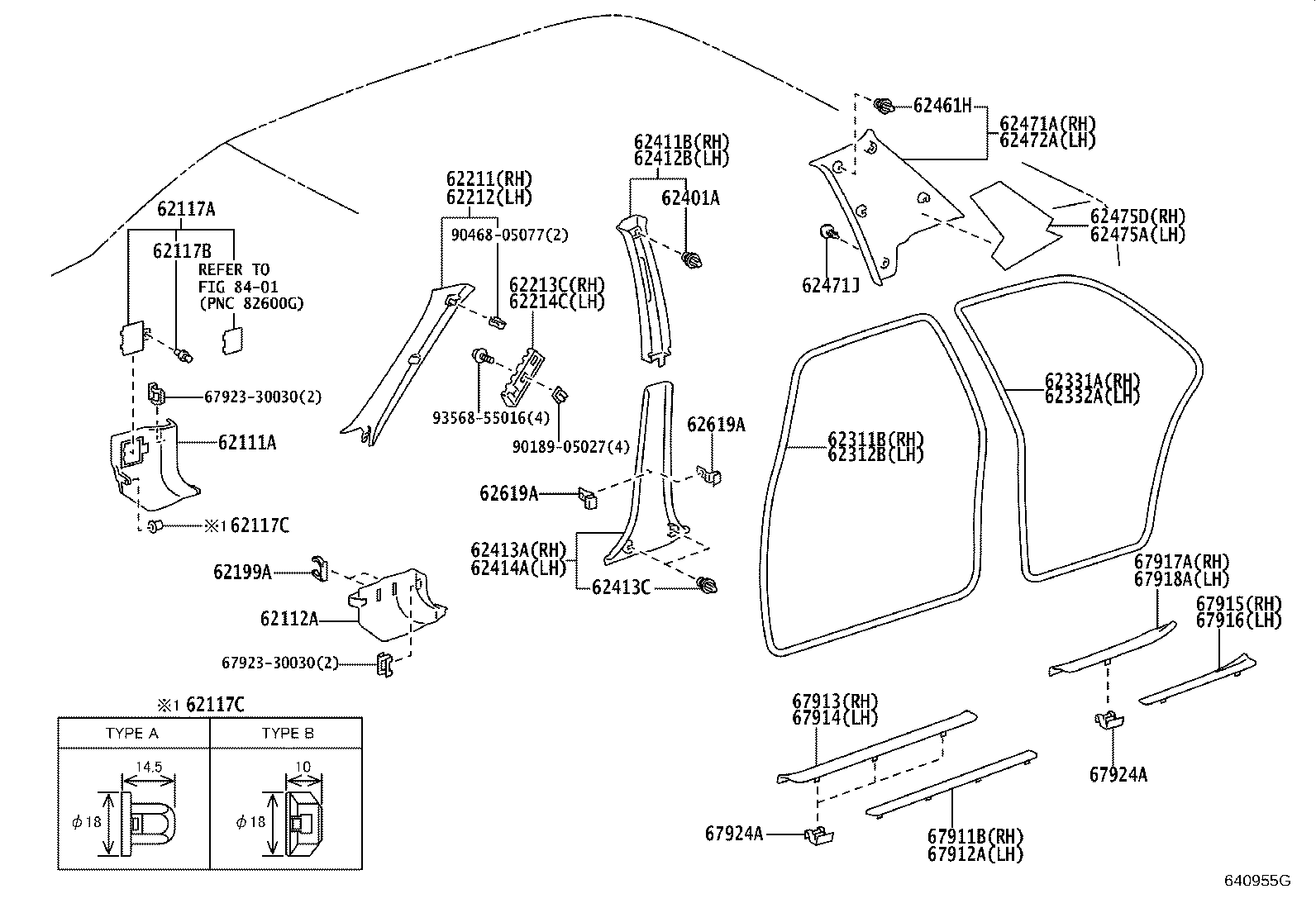

Click highlighted areas on diagram

diagram 62111A 62112A 62117A 62117B 62117C 62117C 62199A 62211 62212 62213C 62214C 62311B 62312B 62331A 62332A 62401A 62411B 62412B 62413A 62413C 62414A 62461H 62471A 62471J 62472A 62475A 62475D 62619A 62619A 67911B 67912A 67913 67914 67915 67916 67917A 67918A 6792330030 6792330030 67924A 67924A 8401 9018905027 9046805077 9356855016
Part # Description Qty Price
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
62117-43030B0

GXS12

DK.GRAY,TRIM1#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-08149

GXS12

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-05111

GXS12

右側

 1
90467-05050

GXS12

左側

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-05111

GXS12

右側

 1
90467-05050

GXS12

左側

 1
62213C - PAD, FRONT PILLAR GARNISH, RH
62213-43010

GXS12

 1
62214C - PAD, FRONT PILLAR GARNISH, LH
62214-43010

GXS12

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-10161

GXS12

 2
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10188

GXS12

 4
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-10161

GXS12

 8
62475A - PAD, ROOF SIDE INNER GARNISH, NO.2
62475-43030

GXS12

 1
62475D - PAD, ROOF SIDE INNER GARNISH, RH
62475-43020

GXS12

 1
62619A - PLATE, SIDE TRIM SET
62619-30010

GXS12

 8
62619A - PLATE, SIDE TRIM SET
62619-30010

GXS12

 8
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-43010

GXS12

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-43010

GXS12

 1
67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67915-43010

GXS12

 1
67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67916-43010

GXS12

 1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67923-30030

GXS12

 8
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67923-30030

GXS12

 8
Common parts
67923-30030
90189-05027
90468-05077
93568-55016
Linked diagrams
8401
