GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )SED

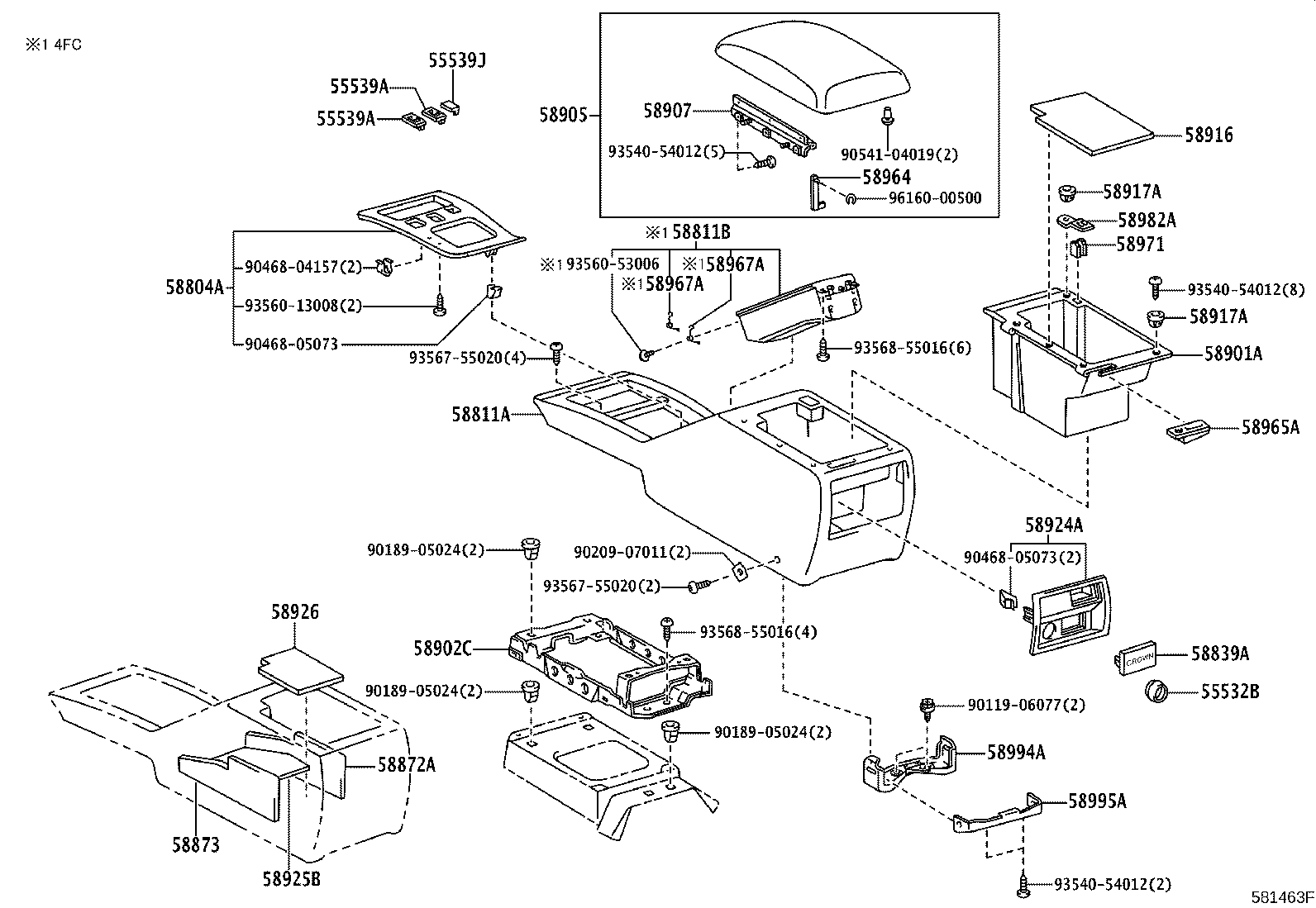

Click highlighted areas on diagram

diagram 55532B 55539A 55539A 55539J 58804A 58811A 58811B 58839A 58872A 58873 58901A 58902C 58905 58907 58916 58917A 58917A 58924A 58925B 58926 58964 58965A 58967A 58967A 58971 58982A 58994A 58995A 9011906077 9018905024 9018905024 9018905024 9020907011 9046804157 9046805073 9046805073 9054104019 9354054012 9354054012 9354054012 9356013008 9356053006 9356755020 9356755020 9356855016 9356855016 9616000500
Part # Description Qty Price
55532B - COVER, CIGAR LIGHTER HOLE
55477-12020

GXS12

 1
58872A - CUSHION, CONSOLE BOX, NO.2
58872-43010

GXS12

 1
58873 - CUSHION, CONSOLE BOX, NO.3
58873-43010

GXS12

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-43010

GXS12

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-30060

GXS12

 1
58916 - MAT, BOX BOTTOM
58916-30090

GXS12

 1
58917A - COVER, CONSOLE BOX, REAR
58917-30090

GXS12

 2
58917A - COVER, CONSOLE BOX, REAR
58917-30090

GXS12

 2
58924A - PANEL, CONSOLE REAR END, NO.2
58924-30030

GXS12

ｱﾘ(ﾘﾔ ﾗｼﾞｵ ｺﾝﾄﾛ-ﾗ)

 1
58924-30040

GXS12

 1
58925B - INSULATOR, CONSOLE BOX, UPPER
58925-43010

GXS12

 1
58926 - INSULATOR, CONSOLE BOX, LOWER
58926-43010

GXS12

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30070

GXS12

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-30020

GXS12

 1
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58971-30041

GXS12

 1
58982A - RETAINER, CONSOLE COMPARTMENT DOOR LOCK
58982-30050

GXS12

 1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-43010

GXS12

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-43010

GXS12

 1
Common parts
90119-06077
90189-05024
90209-07011
90468-04157
90468-05073
90541-04019
93540-54012
93560-13008
93560-53006
93567-55020
93568-55016
96160-00500
