GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )SED

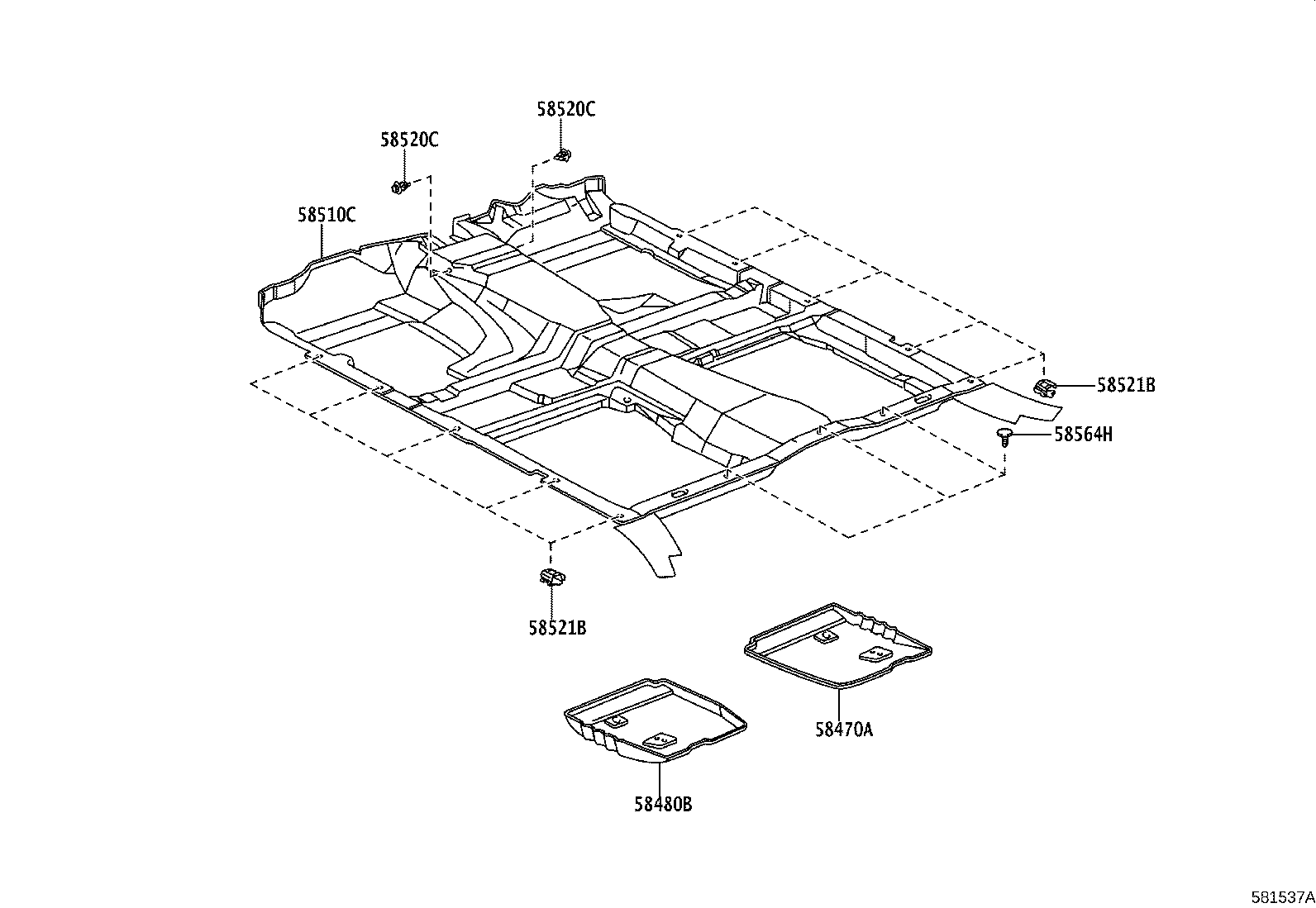

Click highlighted areas on diagram

diagram 58470A 58480B 58510C 58520C 58520C 58521B 58521B 58564H
Part # Description Qty Price
58470A - BOARD ASSY, REAR FLOOR, NO.1
58470-43020

GXS12

 1
58480B - BOARD ASSY, REAR FLOOR, NO.2
58480-43020

GXS12

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-43500B1

GXS12

ﾄﾘﾑ = TYPE C-*104 & ｱﾘ(ｵﾙｶﾞﾝｼｷ ｱｸｾﾙﾍﾟﾀﾞﾙ & ｶｲﾃﾝ ｼｷ ﾘﾔ ｼ-ﾄ),MD.GRAY,TRIM1#

 1
58510-43520B1

GXS12

ﾄﾘﾑ = TYPE C-*104 & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔ ｼ-ﾄ),MD.GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-08185

GXS12

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-08185

GXS12

 2
58521B - HOOK, FLOOR CARPET
58521-12120

GXS12

 10
58521B - HOOK, FLOOR CARPET
58521-12120

GXS12

 10
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-11025

GXS12

 3
