GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

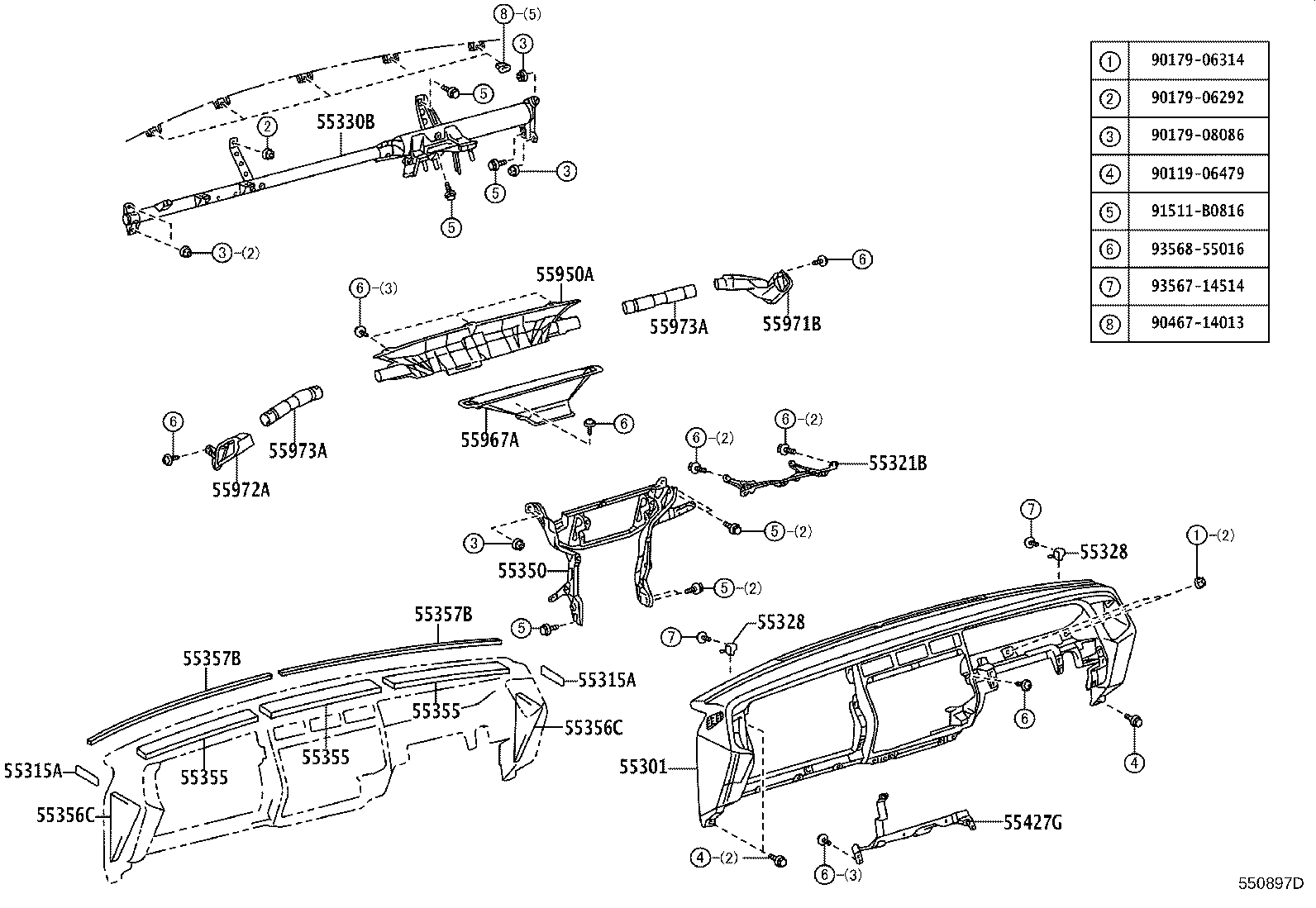

ILLUST NO. 1 OF 2(0108- )SED

Click highlighted areas on diagram

diagram 55301 55315A 55315A 55321B 55328 55328 55330B 55350 55355 55355 55355 55356C 55356C 55357B 55357B 55427G 55950A 55967A 55971B 55972A 55973A 55973A 9011906479 9017906292 9017906314 9017908086 9046714013 91511B0816 9356714514 9356855016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-43050B0

GBS12,GXS1#,YXS10..SED

DK.GRAY,TRIM1#

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-43021

GXS12

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)

 1
55350 - BRACE ASSY, INSTRUMENT PANEL
55350-43030

GXS12

 1
55950A - NOZZLE ASSY, DEFROSTER
55950-43010

GXS12

 1
55967A - NOZZLE, DEFROSTER, LOWER
55967-43010

GXS12

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-43010

GXS12

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-43010

GXS12

 1
55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-43010

GXS12

 2
55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3
55973-43010

GXS12

 2
Common parts
90119-06479
90179-06292
90179-06314
90179-08086
90467-14013
91511-B0816
93567-14514
93568-55016

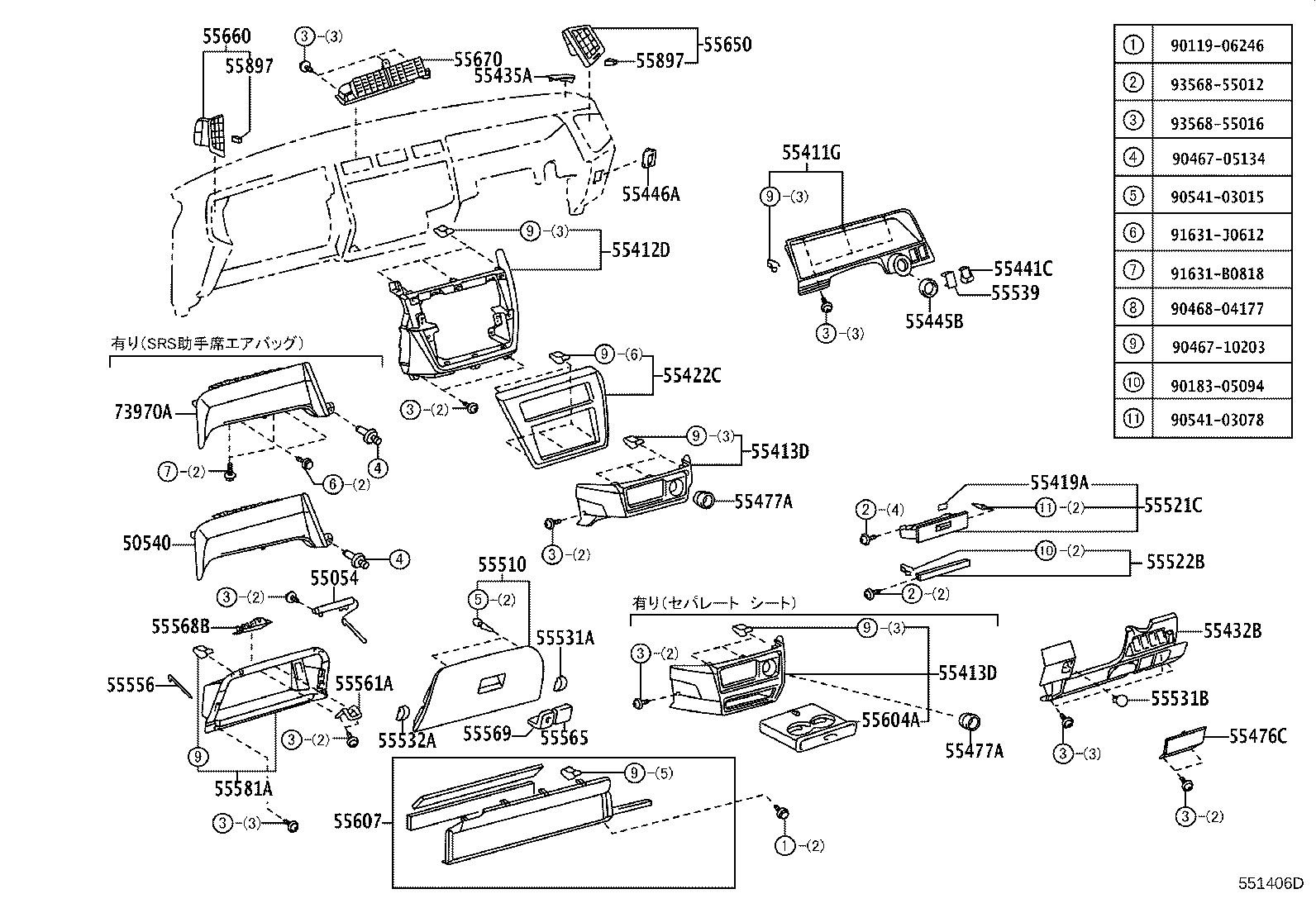

ILLUST NO. 2 OF 2(0108- )SED

Click highlighted areas on diagram

diagram 50540 55054 55411G 55412D 55413D 55413D 55419A 55422C 55432B 55435A 55441C 55445B 55446A 55476C 55477A 55477A 55510 55521C 55522B 55531A 55531B 55532A 55539 55556 55561A 55565 55568B 55569 55581A 55604A 55607 55650 55660 55670 55897 55897 73970A 9011906246 9018305094 9046705134 9046710203 9046804177 9054103015 9054103078 91631B0818 91631J0612 9356855012 9356855016
Part # Description Qty Price
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-43010

GXS12

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-43020

GXS12

 1
55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL
55419-32020

GXS12

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-32050

GXS12

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-32050

GXS12

 1
55521C - COVER, STEREO OPENING
55521-43010

GXS12

 1
55531A - PANEL, GLOVE COMPARTMENT, NO.1
55531-30160

GXS12

 1
55532A - PANEL, GLOVE COMPARTMENT, NO.2
55532-30050

GXS12

 1
55556 - ARM, GLOVE COMPARTMENT DOOR CHECK
55556-30050

GXS12

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-17020

GXS12

 1
55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH
55568-24020

GXS12

 1
55581A - COMPARTMENT, GLOVE
55581-43030

GXS12

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-43010B0

GXS1#,YXS10..SDX

DK.GRAY,TRIM1#

 1
Common parts
90119-06246
90183-05094
90467-05134
90467-10203
90468-04177
90541-03015
90541-03078
91631-B0818
91631-J0612
93568-55012
93568-55016
