GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )GBS12,GXS1#,YXS10..SDX ; (0210- )SAL

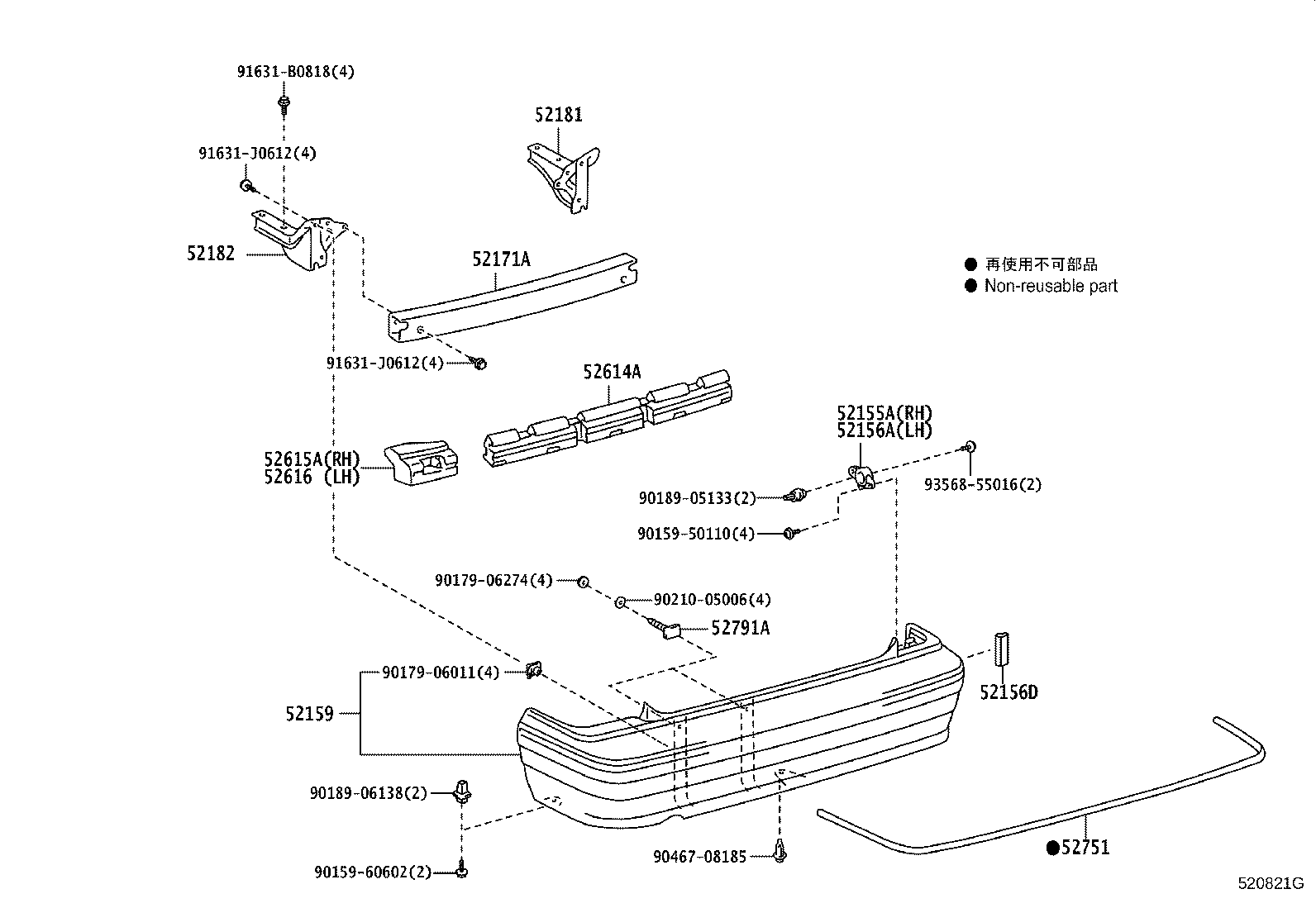

Click highlighted areas on diagram

3 ﾅﾝﾊﾞ-ｶ-

diagram 52155A 52156A 52156D 52159 52171A 52181 52182 52614A 52615A 52616 52751 52791A 9015950110 9015960602 9017906011 9017906274 9018905133 9018906138 9021005006 9046708185 91631B0818 91631J0612 91631J0612 9356855016
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-43040

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52155-43020

GXS12

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-43040

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52155-43020

GXS12

 1
52156D - SUPPORT, REAR BUMPER SIDE, LWR
52156-43010

GXS1#,YXS10..SDX

 2
52159 - COVER, REAR BUMPER
52159-43040A0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,SUPER WHITE 2,040

 1
52159-43040J0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,DARK BLUE MC.,8P8

 1
52159-43040A1

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,WHITE PEARL CS.,065

 1
52159-43040B0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,SILVER ME.,1C0

 1
52159-43040C0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,BLACK,202

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-43010

GXS12

 1
52181 - ARM, REAR BUMPER, RH
52015-43010

GXS12

 1
52182 - ARM, REAR BUMPER, LH
52016-43010

GXS12

 1
52614A - ABSORBER, REAR BUMPER ENERGY, NO.2
52614-43030

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52615A - ABSORBER, REAR BUMPER ENERGY, RH
52615-43030

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52615-43020

GXS12

 1
52616 - ABSORBER, REAR BUMPER ENERGY, LH
52616-43030

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52616-43020

GXS12

 1
52751 - MOULDING, REAR BUMPER
52751-43020

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52751-43010

GXS12

 1
52791A - BOLT, BUMPER MOULDING SET, NO.2
90109-06354

GXS1#,YXS10..SDX

外側

 2
52791-12040

GXS1#,YXS10..SDX

ｾﾝﾀ

 2
Common parts
90159-50110
90159-60602
90179-06011
90179-06274
90189-05133
90189-06138
90210-05006
90467-08185
91631-B0818
91631-J0612
93568-55016
