GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )SDX

Click highlighted areas on diagram

diagram 5102 52021 52115A 52116A 52119A 52125A 52126A 52129B 52144E 52535 52536 52611 52711 5302 8102 8102 8102 9011910192 9011910919 9016860023 9017906011 9017906127 9046708217 9046708217 9046708217 91631J0612
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-43040

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52021-43030

GXS12

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-43010

GXS12

 1
52115-43020

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-43020

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52115-43010

GXS12

 1
52119A - COVER, FRONT BUMPER
52119-43040A1

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,WHITE PEARL CS.,065

 1
52119-43040B0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,SILVER ME.,1C0

 1
52119-43040J0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,DARK BLUE MC.,8P8

 1
52119-43040A0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,SUPER WHITE 2,040

 1
52119-43040C0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,BLACK,202

 1
52125A - BRACKET, FOG LAMP MOUNTING, RH
52125-43010

GXS12

 1
52126A - BRACKET, FOG LAMP MOUNTING, LH
52126-43010

GXS12

 1
52144E - STAY, FRONT BUMPER, CENTER
52144-43010

GXS12

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30150

GXS12

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-30150

GXS12

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-43040

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52611-43030

GXS12

 1
52711 - MOULDING, FRONT BUMPER
52711-43010

GXS12

ﾒｯｷ

 1
Common parts
90119-10192
90119-10919
90168-60023
90179-06011
90179-06127
90467-08217
91631-J0612
Linked diagrams
5102
5302
8102

(0201- )GBS12,GXS1#,YXS10..SDX ; (0210- )SAL

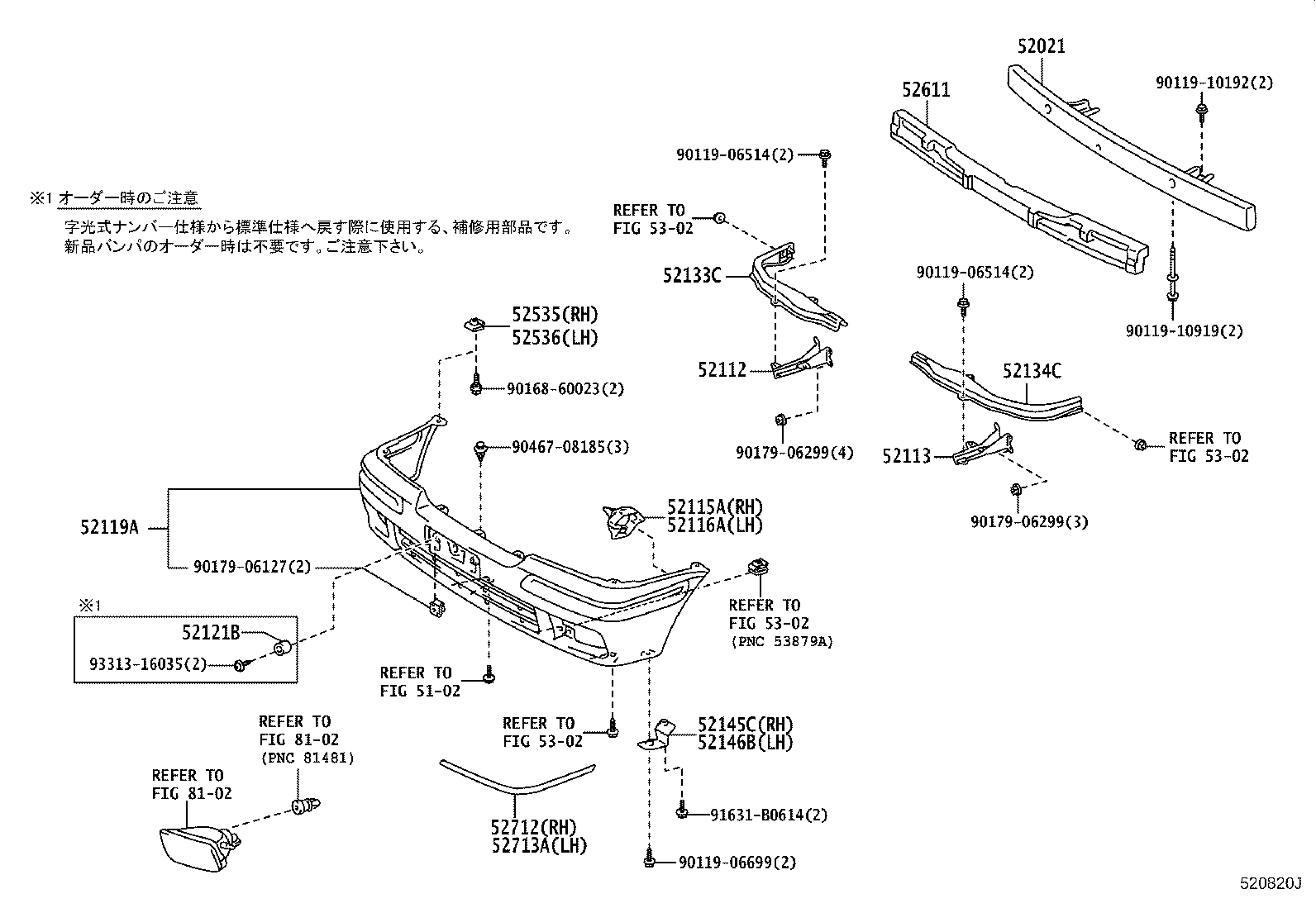

Click highlighted areas on diagram

3ﾅﾝﾊﾞ-ｶ-

diagram 5102 52021 52112 52113 52115A 52116A 52119A 52121B 52133C 52134C 52145C 52146B 52535 52536 52611 52712 52713A 5302 5302 5302 5302 8102 8102 9011906514 9011906514 9011906699 9011910192 9011910919 9016860023 9017906127 9017906299 9017906299 9046708185 91631B0614 9331316035
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-43040

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52021-43030

GXS12

 1
52112 - BAR, FRONT BUMPER, RH
52112-43010

GXS1#,YXS10..SDX

 1
52113 - BAR, FRONT BUMPER, LH
52113-43010

GXS1#,YXS10..SDX

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-43010

GXS12

 1
52115-43020

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-43020

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52115-43010

GXS12

 1
52119A - COVER, FRONT BUMPER
52119-43040A1

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,WHITE PEARL CS.,065

 1
52119-43040B0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,SILVER ME.,1C0

 1
52119-43040J0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,DARK BLUE MC.,8P8

 1
52119-43040A0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,SUPER WHITE 2,040

 1
52119-43040C0

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-,BLACK,202

 1
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-43020

GXS1#,YXS10..SDX

 1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-43020

GXS1#,YXS10..SDX

 1
52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH
52145-43010

GXS1#,YXS10..SDX

 1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-43010

GXS1#,YXS10..SDX

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30150

GXS12

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-30150

GXS12

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-43040

GXS1#,YXS10..SDX

3 ﾅﾝﾊﾞ-ｶ-

 1
52611-43030

GXS12

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-43010

GXS1#,YXS10..SDX

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-43010

GXS1#,YXS10..SDX

 1
Common parts
90119-06514
90119-06699
90119-10192
90119-10919
90168-60023
90179-06127
90179-06299
90467-08185
91631-B0614
93313-16035
Linked diagrams
5102
5302
8102
