GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

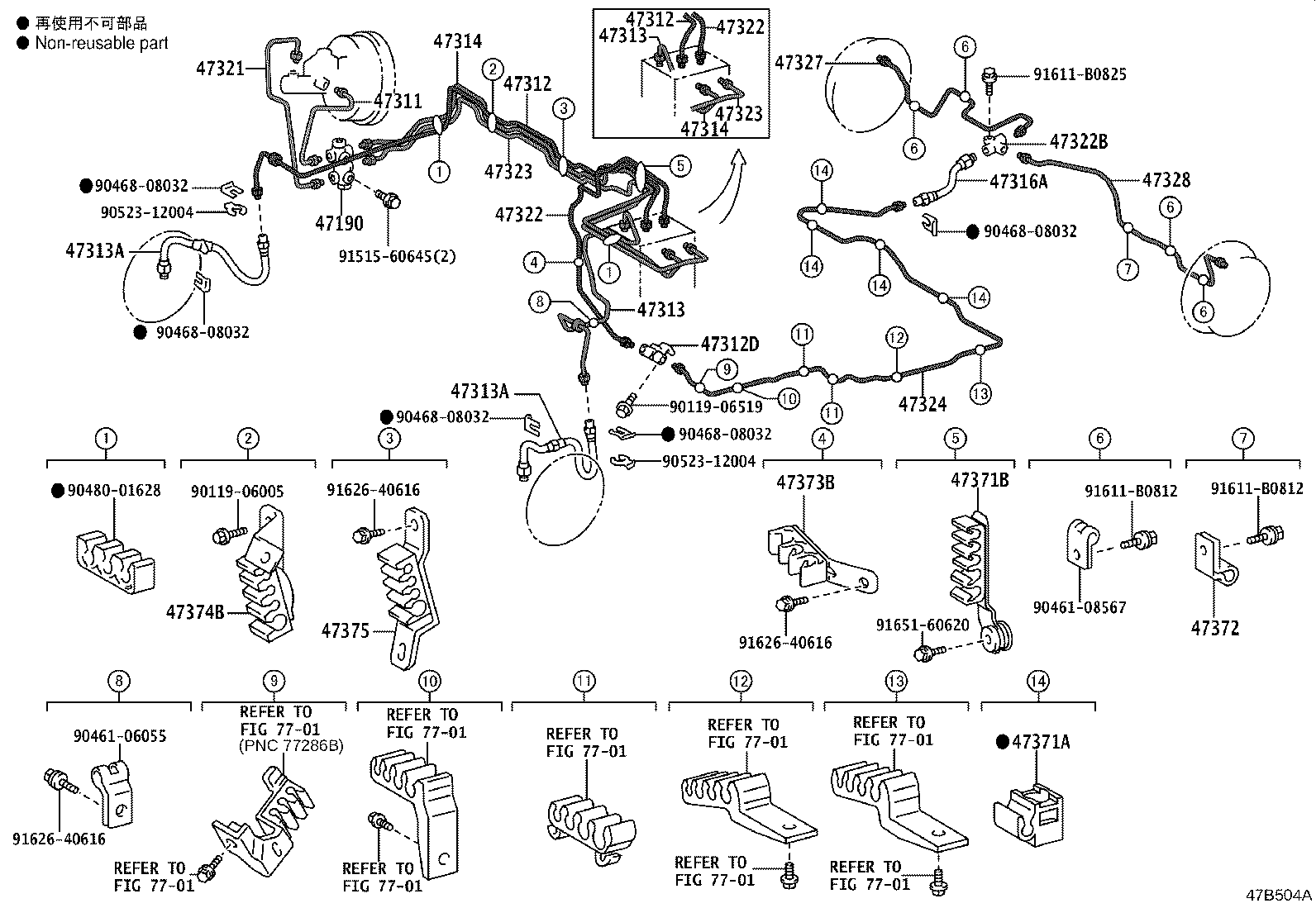

ILLUST NO. 1 OF 2(0108- )GBS12,GXS12

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47190 47311 47312 47312 47312D 47313 47313 47313A 47313A 47314 47314 47316A 47321 47322 47322 47322B 47323 47323 47324 47327 47328 47371A 47371B 47372 47373B 47374B 47375 7701 7701 7701 7701 7701 7701 7701 7701 7701 9011906005 9011906519 9046106055 9046108567 9046808032 9046808032 9046808032 9046808032 9046808032 9048001628 9052312004 9052312004 9151560645 91611B0812 91611B0812 91611B0825 9162640616 9162640616 9162640616 9165160620
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-43020

GXS12

ｱﾘ(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-43030

GXS12

ｱﾘ(ABS)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-43041

GXS12

 1
47312-43040

GXS12

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-43041

GXS12

 1
47312-43040

GXS12

 1
47312D - WAY, 2(FOR REAR BRAKE TUBE)
90412-10118

GXS12

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-43040

GXS12

ｱﾘ(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-43040

GXS12

ｱﾘ(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D13

GXS12

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D13

GXS12

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-43021

GXS12

 1
47314-43020

GXS12

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-43021

GXS12

 1
47314-43020

GXS12

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02D14

GXS12

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-43030

GXS12

ｱﾘ(ABS)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-43050

GXS12

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-43050

GXS12

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

GXS12

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-43020

GXS12

 1
47323-43021

GXS12

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-43020

GXS12

 1
47323-43021

GXS12

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-43011

GXS12

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-43011

GXS12

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-43090

GXS12

ｱﾘ(ABS)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90461-06113

GXS12

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-43080

GXS12

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-43010

GXS12

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-43030

GXS12

 1
Common parts
90119-06005
90119-06519
90461-06055
90461-08567
90468-08032
90480-01628
90523-12004
91515-60645
91611-B0812
91611-B0825
91626-40616
91651-60620
Linked diagrams
7701
