GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )GBS12,GXS12

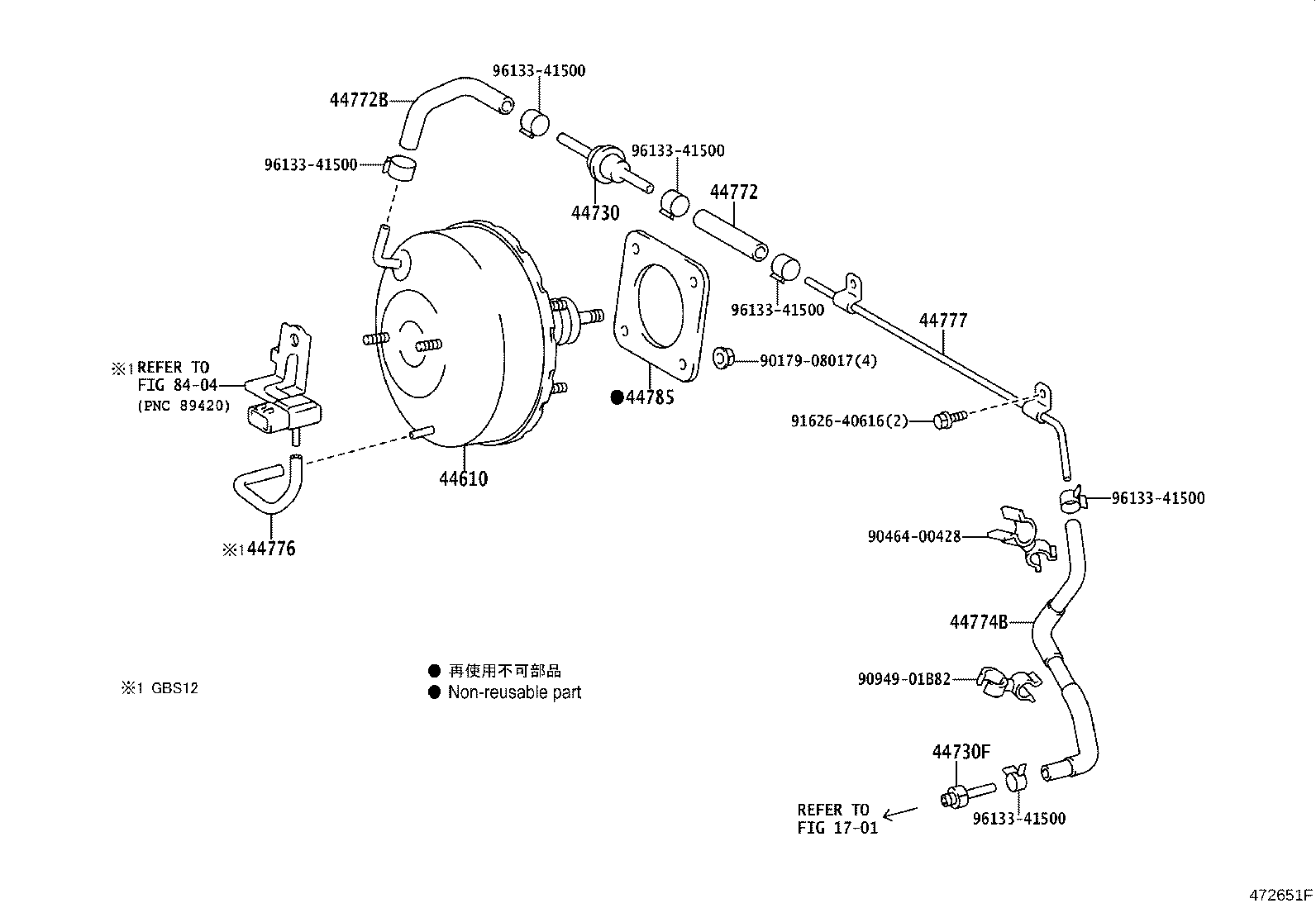

Click highlighted areas on diagram

diagram 1701 44610 44730 44730F 44772 44772B 44774B 44776 44777 44785 8404 9017908017 9046400428 9094901B82 9162640616 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-43090

GXS12

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

GXS12

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GXS12

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-22300

GXS12

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-43010

GXS12

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-43070

GXS12

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44770-43020

GXS12

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GXS12

 1
Common parts
90179-08017
90464-00428
90949-01B82
91626-40616
96133-41500
Linked diagrams
1701
8404
