GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )SED

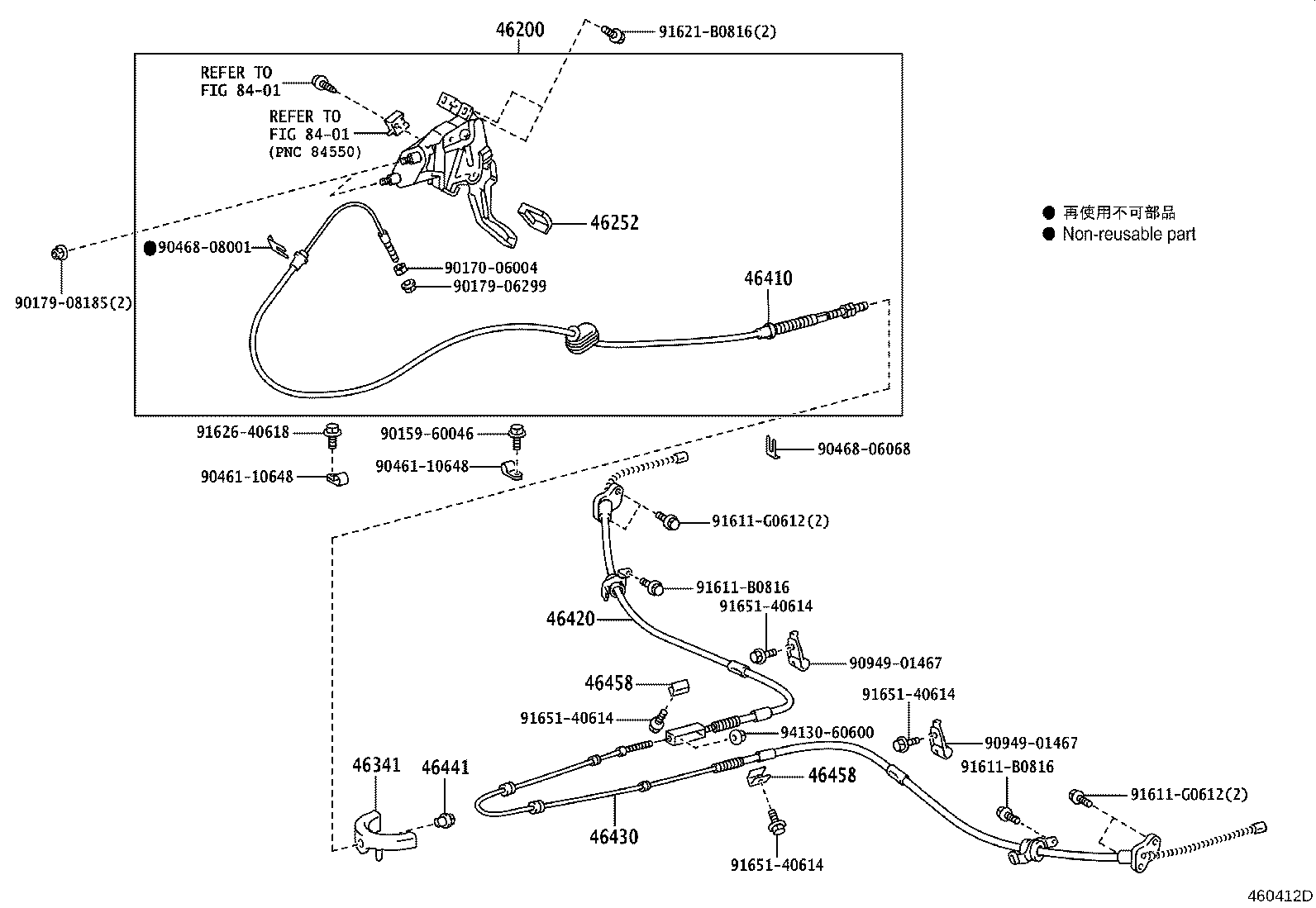

Click highlighted areas on diagram

diagram 46200 46252 46341 46410 46420 46430 46441 46458 46458 8401 8401 9015960046 9017006004 9017906299 9017908185 9046110648 9046110648 9046806068 9046808001 9094901467 9094901467 91611B0816 91611B0816 91611G0612 91611G0612 91621B0816 9162640618 9165140614 9165140614 9165140614 9165140614 9413060600
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-43010

GXS12

 1
46252 - PAD, PARKING PEDAL
46252-63010

GXS12

 1
46341 - EQUALIZER, PARKING BRAKE
46341-22040

GXS12

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-43020

GXS12

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-08013

GXS12

 1
46458 - RETAINER, CABLE
46458-28010

GXS12

 2
46458 - RETAINER, CABLE
46458-28010

GXS12

 2
Common parts
90159-60046
90170-06004
90179-06299
90179-08185
90461-10648
90468-06068
90468-08001
90949-01467
91611-B0816
91611-G0612
91621-B0816
91626-40618
91651-40614
94130-60600
Linked diagrams
8401
