GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0708)GXS12

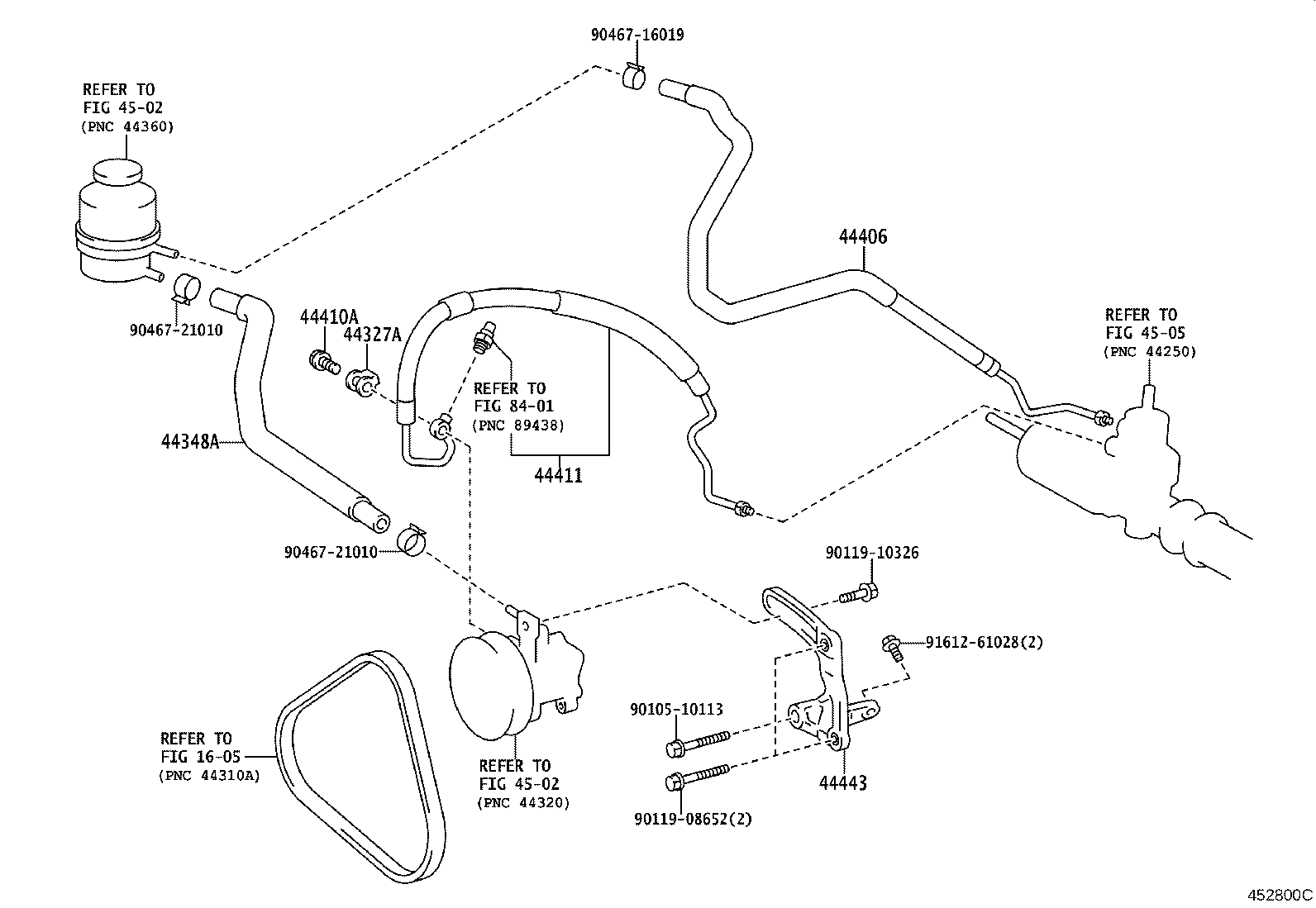

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44406 44410A 44411 44443 4502 4502 4505 8401 9010510113 9011908652 9011910326 9046716019 9046721010 9046721010 9161261028
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GXS12

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-43020

GXS12

 1
44406 - TUBE SUB-ASSY, RETURN
44406-43011

GXS12

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16024

GXS12

 1
44411 - HOSE, PRESSURE FEED
44411-43030

GXS12

 1
44443 - BRACKET, PUMP
44443-22150

GXS12

 1
Common parts
90105-10113
90119-08652
90119-10326
90467-16019
90467-21010
91612-61028
Linked diagrams
1605
4502
4505
8401
