GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )GXS12

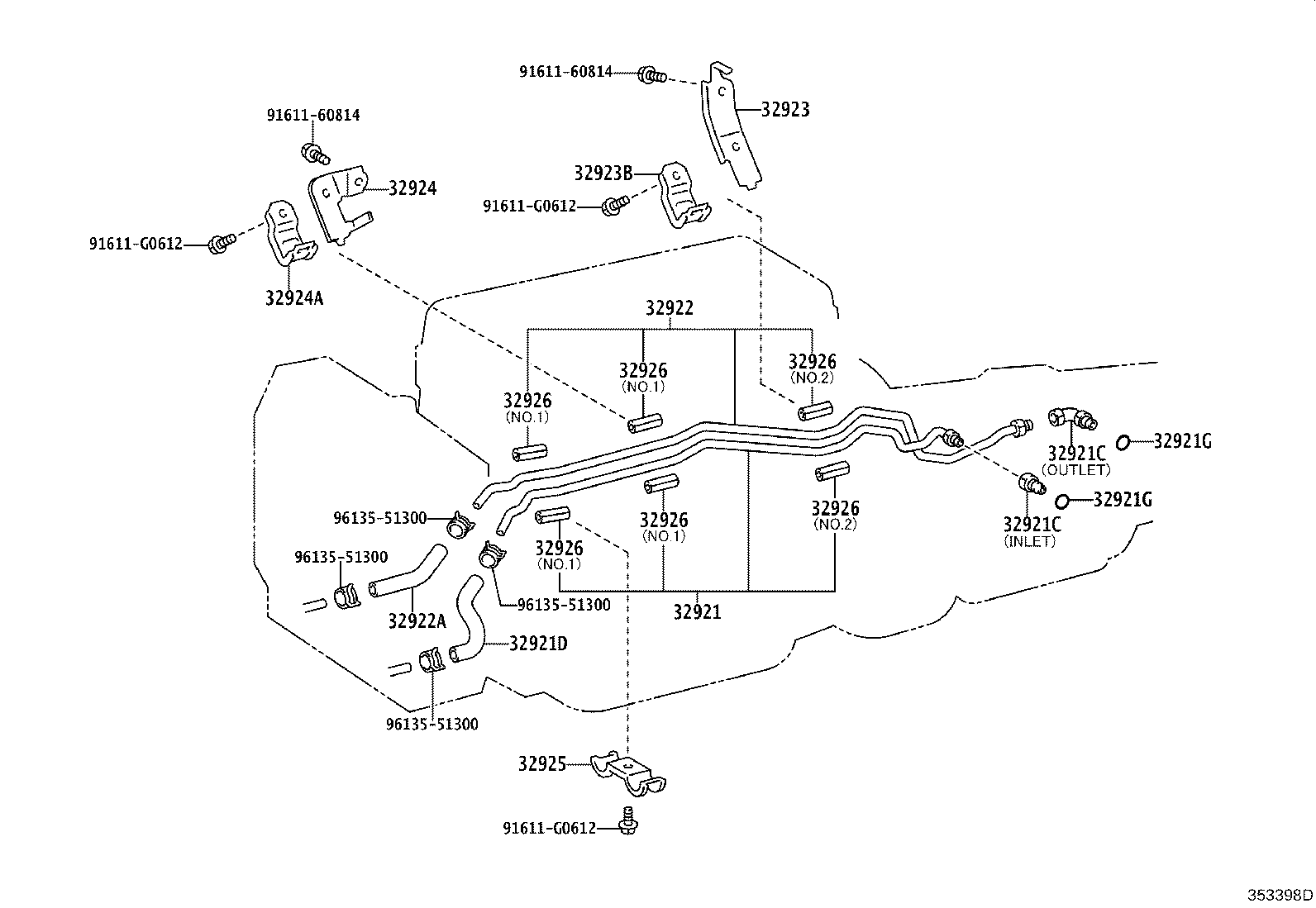

Click highlighted areas on diagram
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-43050 |
GXS12 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
GXS12 ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
GXS12 ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
GXS12 ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
GXS12 ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15047 |
GXS12 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GXS12 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GXS12 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-43050 |
GXS12 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15014 |
GXS12 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-43040 |
GXS12 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-22050 |
GXS12 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-43020 |
GXS12 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-22050 |
GXS12 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12047 |
GXS12 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GXS12 長さ=35,内径=10,NO.1 |
4 | ||
| 32926-30030 |
GXS12 長さ=35,内径=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GXS12 長さ=35,内径=10,NO.1 |
4 | ||
| 32926-30030 |
GXS12 長さ=35,内径=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GXS12 長さ=35,内径=10,NO.1 |
4 | ||
| 32926-30030 |
GXS12 長さ=35,内径=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GXS12 長さ=35,内径=10,NO.1 |
4 | ||
| 32926-30030 |
GXS12 長さ=35,内径=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GXS12 長さ=35,内径=10,NO.1 |
4 | ||
| 32926-30030 |
GXS12 長さ=35,内径=10,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GXS12 長さ=35,内径=10,NO.1 |
4 | ||
| 32926-30030 |
GXS12 長さ=35,内径=10,NO.2 |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-G0612 | ||||
| 96135-51300 | ||||
