GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108-0708)GXS12

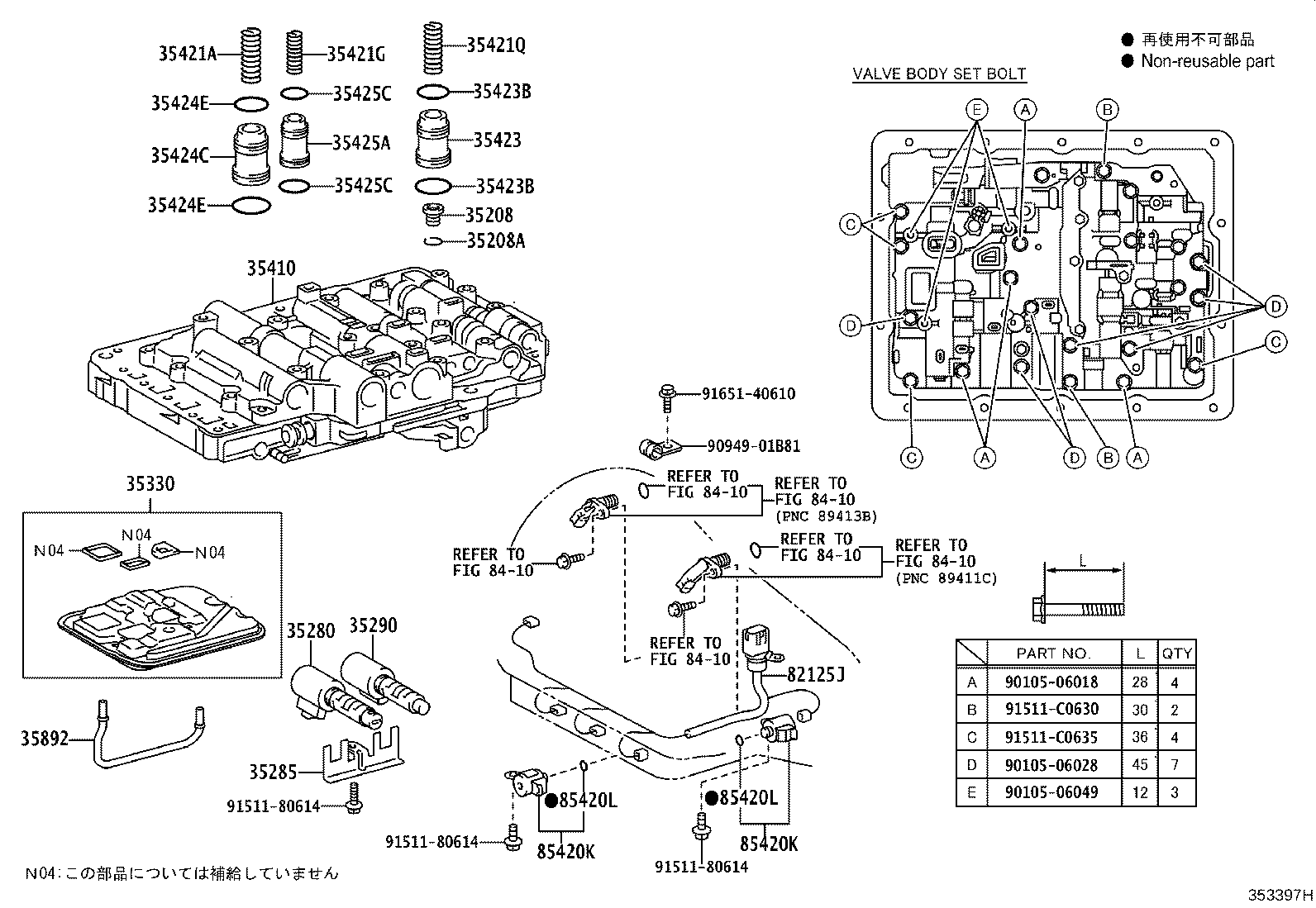

Click highlighted areas on diagram
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-28010 |
GXS12 |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GXS12 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-22010 |
GXS12 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-22010 |
GXS12 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-22010 |
GXS12 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-22032 |
GXS12 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-22730 |
GXS12 |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-20162 |
GXS12 |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-26092 |
GXS12 |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-23147 |
GXS12 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35421-26010 |
GXS12 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
GXS12 上側 |
1 | ||
| 90301-29011 |
GXS12 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
GXS12 上側 |
1 | ||
| 90301-29011 |
GXS12 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35421-22030 |
GXS12 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
GXS12 上側 |
1 | ||
| 90301-26012 |
GXS12 下側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
GXS12 上側 |
1 | ||
| 90301-26012 |
GXS12 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35441-30010 |
GXS12 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-26012 |
GXS12 下側 |
1 | ||
| 90301-18010 |
GXS12 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-26012 |
GXS12 下側 |
1 | ||
| 90301-18010 |
GXS12 上側 |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-22010 |
GXS12 |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-22250 |
GXS12 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
GXS12 |
2 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-30030 |
GXS12 |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GXS12 |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GXS12 |
2 | ||
| Common parts | ||||
| 90105-06018 | ||||
| 90105-06028 | ||||
| 90105-06049 | ||||
| 90949-01B81 | ||||
| 91511-80614 | ||||
| 91511-C0630 | ||||
| 91511-C0635 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8410 | ||||
