GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )GXS12

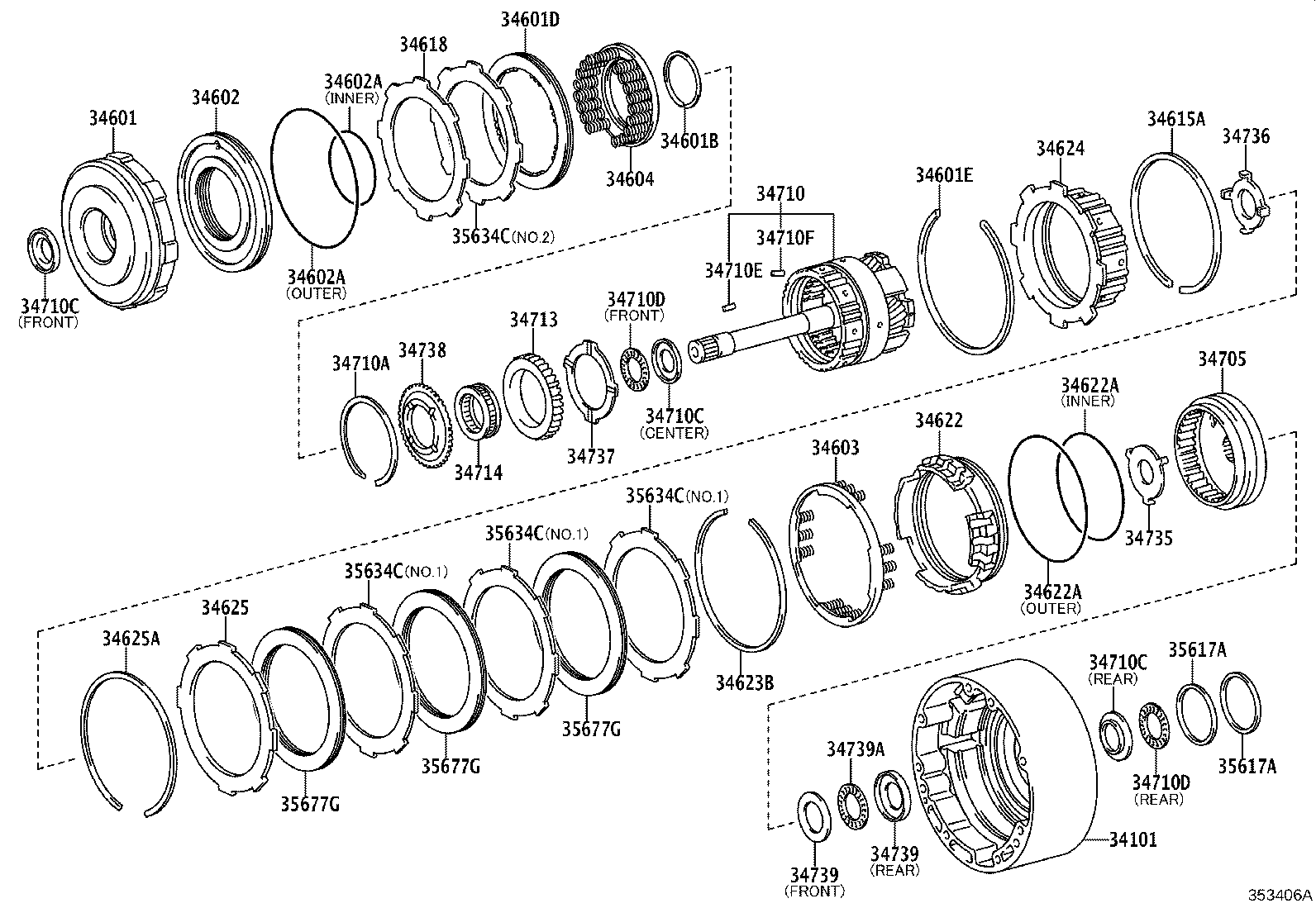

Click highlighted areas on diagram
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-22020 |
GXS12 |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30022 |
GXS12 |
1 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
GXS12 |
1 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30140 |
GXS12 |
1 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
GXS12 |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-22010 |
GXS12 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99058 |
GXS12 外側 |
1 | ||
| 90301-56007 |
GXS12 内側 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99058 |
GXS12 外側 |
1 | ||
| 90301-56007 |
GXS12 内側 |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-22010 |
GXS12 |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-22010 |
GXS12 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99001 |
GXS12 |
1 | ||
| 34618 - PLATE, OVERDRIVE DIRECT CLUTCH CUSHION | ||||
| 34618-30010 |
GXS12 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-22020 |
GXS12 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99111 |
GXS12 外側 |
1 | ||
| 90301-99103 |
GXS12 内側 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99111 |
GXS12 外側 |
1 | ||
| 90301-99103 |
GXS12 内側 |
1 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
GXS12 |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-26010 |
GXS12 |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-22020 |
GXS12 厚さ=4.0 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99004 |
GXS12 |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30021 |
GXS12 |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-22040 |
GXS12 |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
GXS12 |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
GXS12 ﾘﾔ |
1 | ||
| 34739-30031 |
GXS12 ｾﾝﾀ |
1 | ||
| 34739-30041 |
GXS12 ﾌﾛﾝﾄ |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
GXS12 ﾘﾔ |
1 | ||
| 34739-30031 |
GXS12 ｾﾝﾀ |
1 | ||
| 34739-30041 |
GXS12 ﾌﾛﾝﾄ |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-22010 |
GXS12 ﾘﾔ |
1 | ||
| 34739-30031 |
GXS12 ｾﾝﾀ |
1 | ||
| 34739-30041 |
GXS12 ﾌﾛﾝﾄ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
GXS12 ﾘﾔ |
1 | ||
| 90374-24001 |
GXS12 ﾌﾛﾝﾄ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-23012 |
GXS12 ﾘﾔ |
1 | ||
| 90374-24001 |
GXS12 ﾌﾛﾝﾄ |
1 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
GXS12 |
4 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
GXS12 |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
GXS12 |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-30030 |
GXS12 |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30020 |
GXS12 |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
GXS12 |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30020 |
GXS12 |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30020 |
GXS12 |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
GXS12 ﾌﾛﾝﾄ |
1 | ||
| 35789-22030 |
GXS12 ﾘﾔ |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
GXS12 ﾌﾛﾝﾄ |
1 | ||
| 35789-22030 |
GXS12 ﾘﾔ |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
GXS12 |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-43010 |
GXS12 |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-43010 |
GXS12 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-30070 |
GXS12 厚さ=2.0,NO.2 |
1 | ||
| 35634-30080 |
GXS12 厚さ=1.95−2.05,NO.1 |
1 | ||
| 34634-30010 |
GXS12 厚さ=2.25−2.35,NO.1 |
1 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-30070 |
GXS12 厚さ=2.0,NO.2 |
1 | ||
| 35634-30080 |
GXS12 厚さ=1.95−2.05,NO.1 |
1 | ||
| 34634-30010 |
GXS12 厚さ=2.25−2.35,NO.1 |
1 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-30070 |
GXS12 厚さ=2.0,NO.2 |
1 | ||
| 35634-30080 |
GXS12 厚さ=1.95−2.05,NO.1 |
1 | ||
| 34634-30010 |
GXS12 厚さ=2.25−2.35,NO.1 |
1 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-30070 |
GXS12 厚さ=2.0,NO.2 |
1 | ||
| 35634-30080 |
GXS12 厚さ=1.95−2.05,NO.1 |
1 | ||
| 34634-30010 |
GXS12 厚さ=2.25−2.35,NO.1 |
1 | ||
| 35677G - DISC, CLUTCH, NO.3 (FOR OVERDRIVE) | ||||
| 35677-43010 |
GXS12 |
3 | ||
| 35677G - DISC, CLUTCH, NO.3 (FOR OVERDRIVE) | ||||
| 35677-43010 |
GXS12 |
3 | ||
| 35677G - DISC, CLUTCH, NO.3 (FOR OVERDRIVE) | ||||
| 35677-43010 |
GXS12 |
3 | ||
