GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1G#

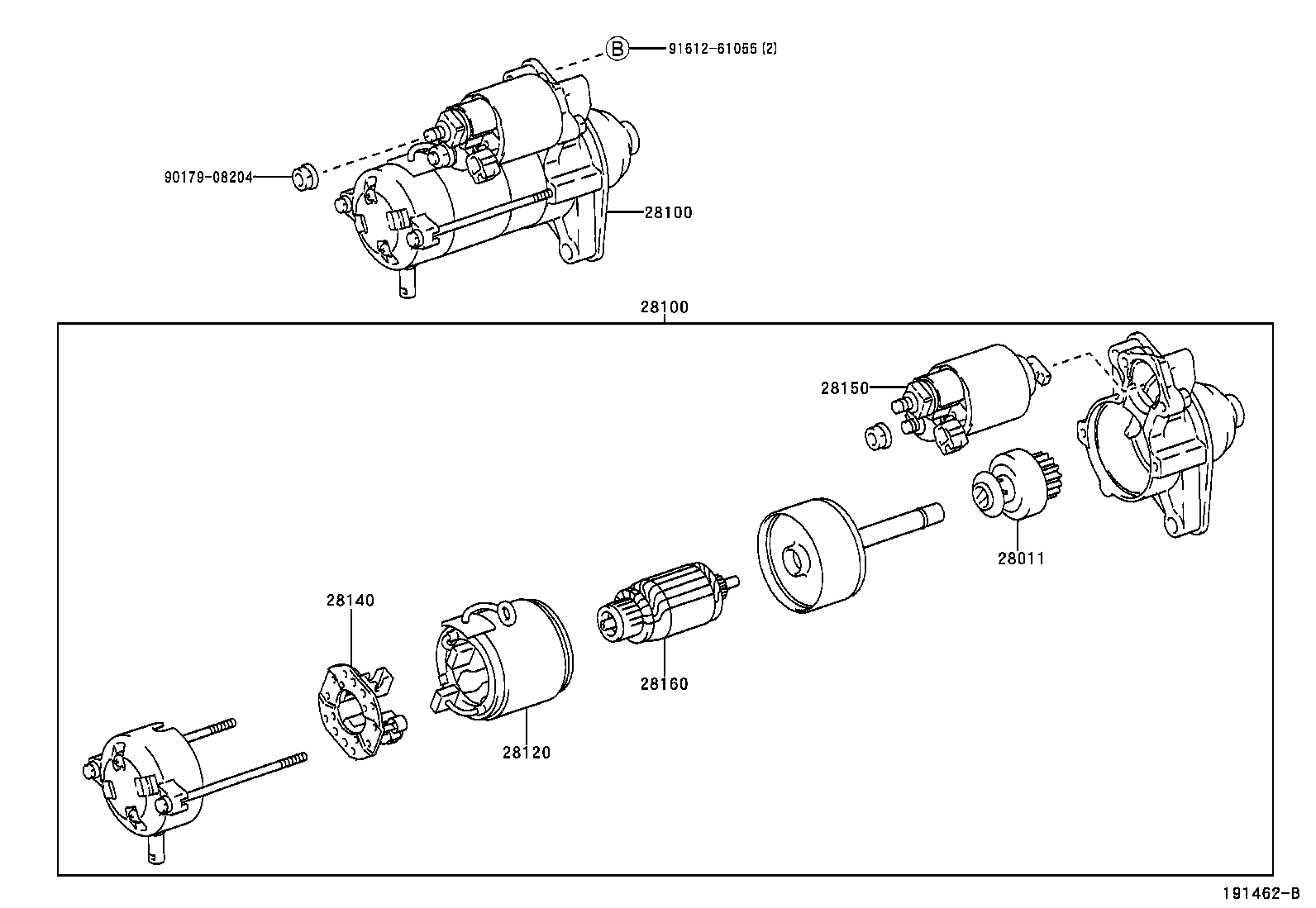

Click highlighted areas on diagram

12V 0.8KW,12V 1.0KW

diagram 28011 28100 28100 28120 28140 28150 28160 9017908204 9161261055
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1GFE..GXS12

 1
28100 - STARTER ASSY
28100-70050

1GFE..GXS12

12V 1.0KW

 1
28100-70030

1GFE..GXS12

12V 0.8KW

 1
28100 - STARTER ASSY
28100-70050

1GFE..GXS12

12V 1.0KW

 1
28100-70030

1GFE..GXS12

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

1GFE..GXS12

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-22100

1GFE..GXS12

 1
28150-70030

1GFE..GBS12,GXS12

 1
28160 - ARMATURE ASSY, STARTER
28160-70021

1GFE..GXS12

12V 0.8KW

 1
28160-70050

1GFE..GXS12

12V 1.0KW

 1
Common parts
90179-08204
91612-61055
