GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1GFE..GXS12

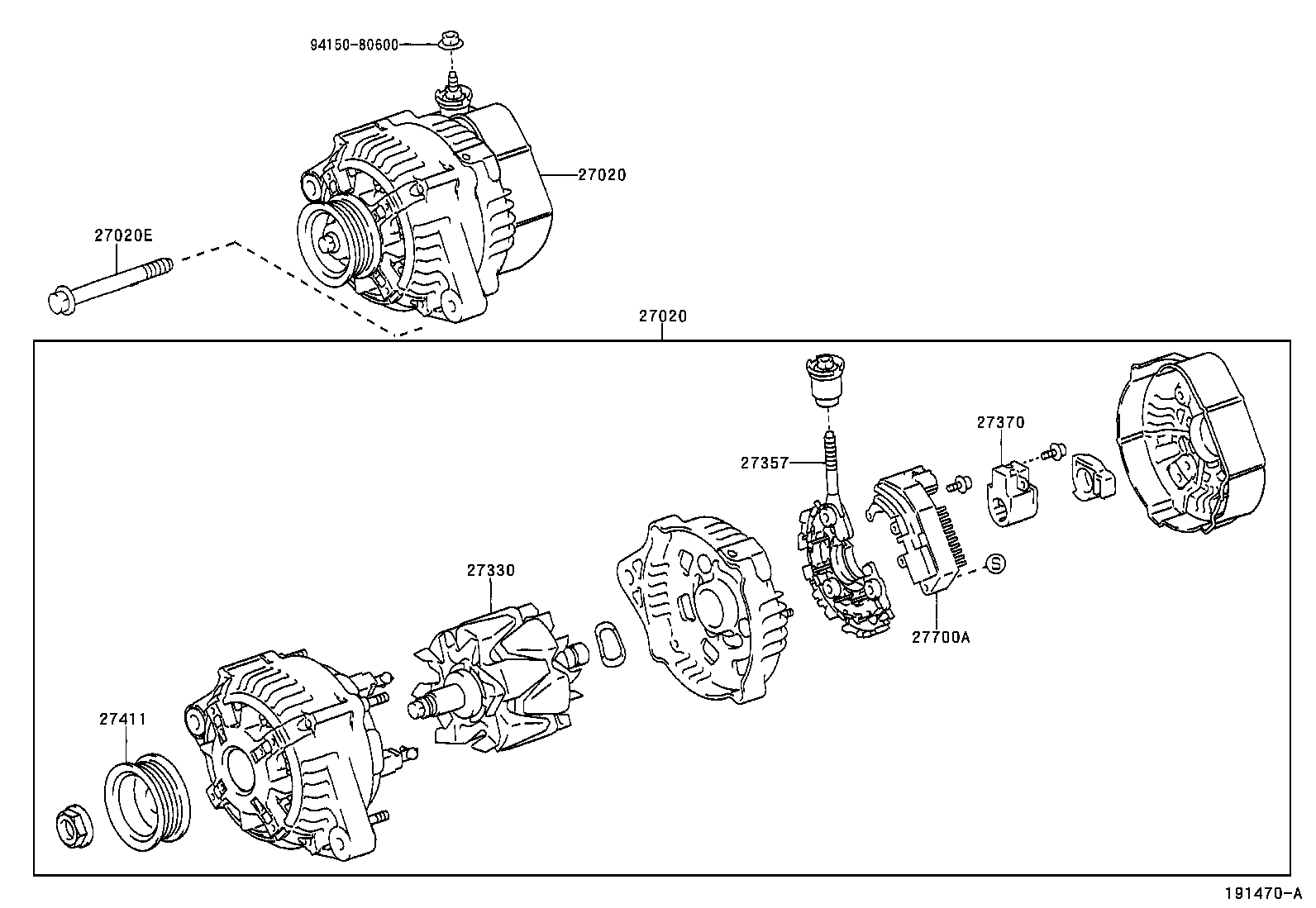

Click highlighted areas on diagram

12V 80A

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-70520

1GFE..GXS12

12V 80A

 1
27020 - ALTERNATOR ASSY
27060-70520

1GFE..GXS12

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10499

1GFE..GXS12

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-70470

1GFE..GXS12

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

1GFE..GXS12

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1GFE..GXS12

 1
27411 - PULLEY, ALTERNATOR
27411-70330

1GFE..GXS12

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46050

1GFE..GXS12

 1
Common parts
94150-80600
