GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1GFE..GXS12

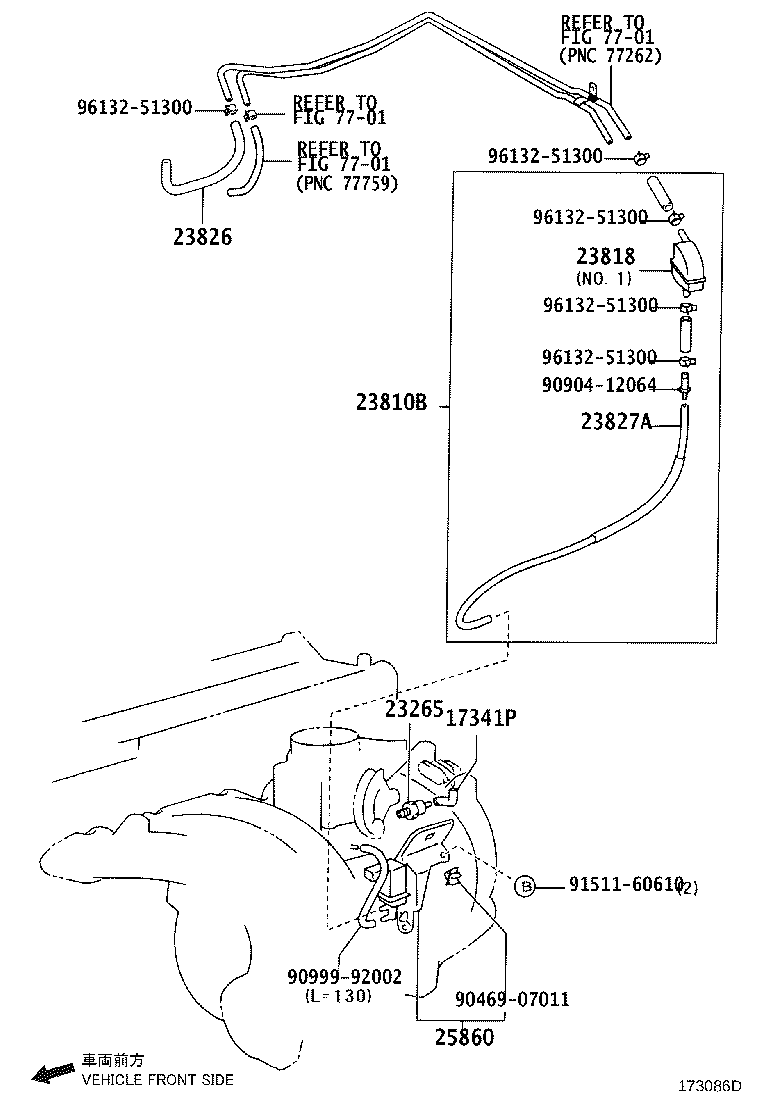

Click highlighted areas on diagram

diagram 17341P 23265 23810B 23818 23826 23827A 25860 7701 7701 7701 9046907011 9090412064 9099992002 9151160610 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
17341P - HOSE, AIR
17341-70260

1GFE..GXS12

 1
23265 - FILTER, GAS, NO.1
90917-11022

1GFE..GXS12

 1
23810B - PIPE ASSY, FUEL VAPOR FEED
23810-70040

1GFE..GBS12,GXS12

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-70040

1GFE..GXS12

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-70040

1GFE..GBS12,GXS12

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-70020

1GFE..GXS12

 1
Common parts
90469-07011
90904-12064
90999-92002
91511-60610
96132-51300
Linked diagrams
7701
