GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1GFE..GXS12

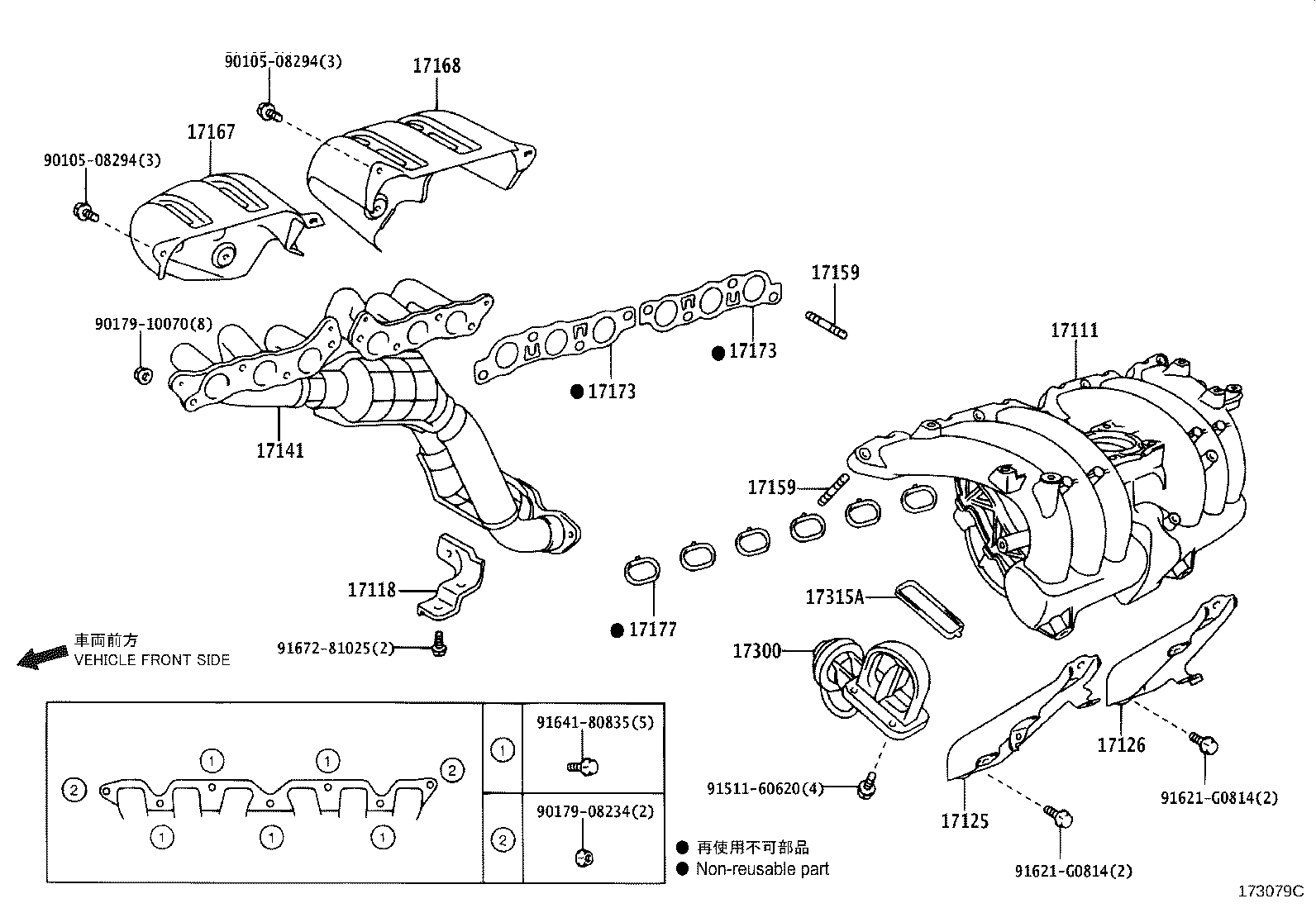

Click highlighted areas on diagram

diagram 17111 17118 17125 17126 17141 17159 17159 17167 17168 17173 17173 17177 17300 17315A 9010508294 9010508294 9017908234 9017910070 9151160620 91621G0814 91621G0814 9164180835 9167281025
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-70100

1GFE..GBS12,GXS12

 1
17118 - STAY, MANIFOLD
17118-70160

1GFE..GXS12

 1
17125 - STAY, SURGE TANK, NO.1
17125-70040

1GFE..GXS12

 1
17126 - STAY, SURGE TANK, NO.2
17126-70040

1GFE..GBS12,GXS12

 1
17141 - MANIFOLD, EXHAUST
17140-70060

1GFE..GXS12

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-C0832

1GFE..GBS12,GXS12

ｲﾝﾃｰｸ ﾏﾆﾎﾙﾄﾞ

 2
90116-10205

1GFE..GBS12,GXS12

ｴｷｿﾞｰｽﾄ ﾏﾆﾎﾙﾄﾞ

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-C0832

1GFE..GBS12,GXS12

ｲﾝﾃｰｸ ﾏﾆﾎﾙﾄﾞ

 2
90116-10205

1GFE..GBS12,GXS12

ｴｷｿﾞｰｽﾄ ﾏﾆﾎﾙﾄﾞ

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-70070

1GFE..GXS12

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-70050

1GFE..GXS12

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70050

1GFE..GBS12,GXS12

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70050

1GFE..GBS12,GXS12

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-70050

1GFE..GBS12,GXS12

 6
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-70010

1GFE..GBS12,GXS12

 1
17315A - GASKET, INTAKE AIR CONTROL VALVE
17315-70010

1GFE..GBS12,GXS12

 1
Common parts
90105-08294
90179-08234
90179-10070
91511-60620
91621-G0814
91641-80835
91672-81025
