GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed

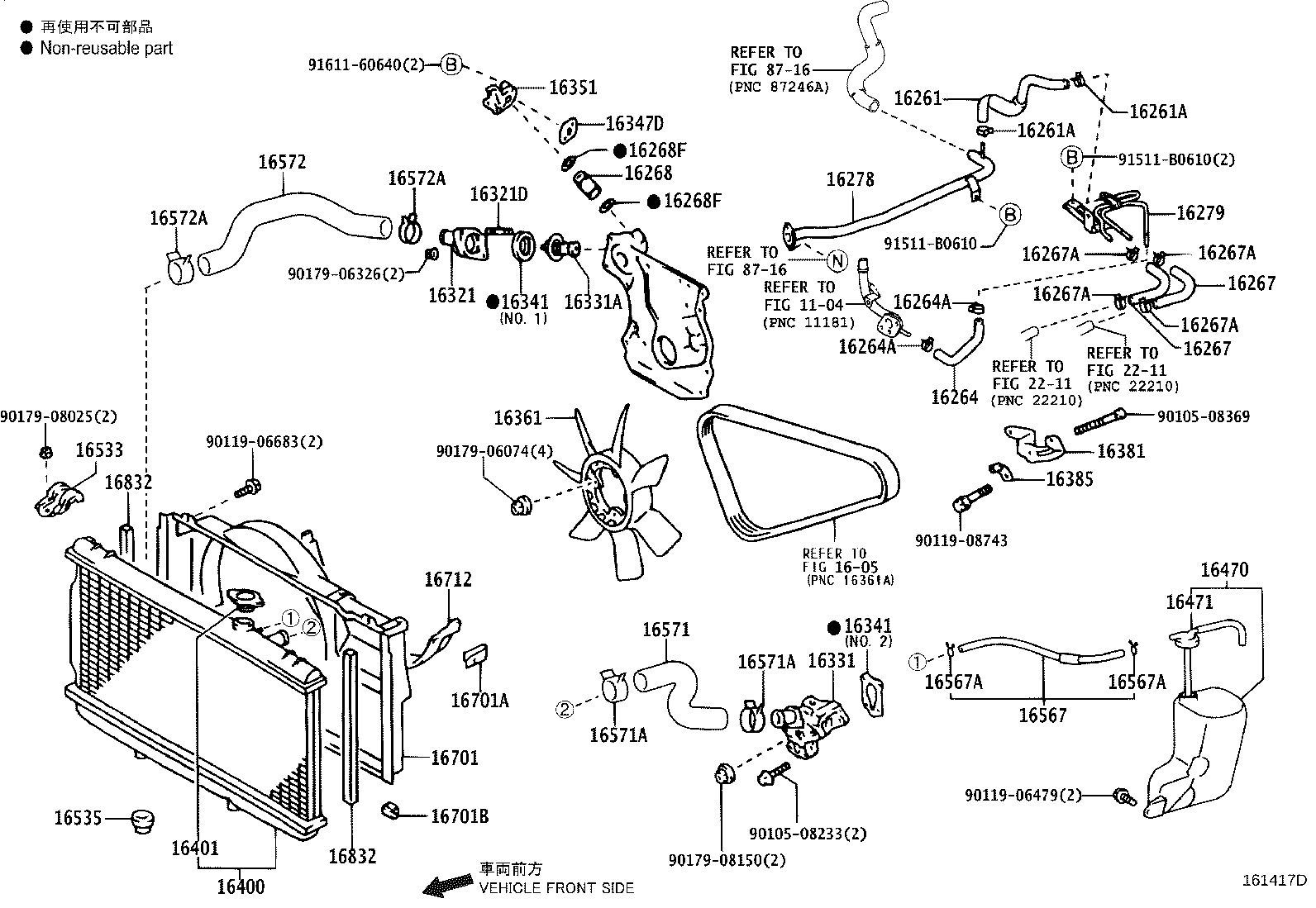

ILLUST NO. 1 OF 2(0108- )1GFE..GXS12
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70090 |
1GFE..GBS12,GXS12 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-10200 |
1GFE..GBS12,GXS12 *H,L=140 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-70060 |
1GFE..GXS12 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-70060 |
1GFE..GXS12 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
1GFE..GBS12,GXS12 |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-70031 |
1GFE..GBS12,GXS12 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-17009 |
1G#..GXS1# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 90301-17009 |
1G#..GXS1# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70080 |
1GFE..GBS12,GXS12 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-70080 |
1GFE..GBS12,GXS12 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-70030 |
1GFE..GXS12 |
1 | ||
| 16321D - BOLT, STUD(FOR WATER INLET) | ||||
| 16193-63010 |
1GFE..GXS12 |
2 | ||
| 16193-63010 |
1GFE..GXS12 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-70020 |
1GFE..GXS12 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03081 |
1GFE..GBS12,GXS12 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1GFE..GBS12,GXS12 NO.1 |
1 | ||
| 16341-70040 |
1GFE..GBS12,GXS12 NO.2 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1GFE..GBS12,GXS12 NO.1 |
1 | ||
| 16341-70040 |
1GFE..GBS12,GXS12 NO.2 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-70021 |
1GFE..GBS12,GXS12 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-70011 |
1GFE..GBS12,GXS12 |
1 | ||
| 16351-70010 |
1GFE..GXS12 |
1 | ||
| 16361 - FAN | ||||
| 16361-70040 |
1GFE..GXS12 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-70060 |
1GFE..GXS12 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70030 |
1GFE..GXS12 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70560 |
1GFE..GXS12 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54320 |
1G#..GBS12,GXS1# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54290 |
1G#..GBS12,GXS1# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70050 |
1G#..GBS12,GXS1# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40010 |
1G#..GBS12,GXS1# |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54140 |
1G#..GXS1# |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GXS1# |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GXS1# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70370 |
1GFE..GXS12 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1G#..GBS12,GXS1# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37006 |
1G#..GBS12,GXS1# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70300 |
1GFE..GXS12 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37006 |
1G#..GBS12,GXS1# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37006 |
1G#..GBS12,GXS1# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-70200 |
1GFE..GXS12 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06070 |
1G#..GXS1# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1G#..GXS1# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70080 |
1GFE..GXS12 |
1 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-70020 |
1G#..GXS1# |
2 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-70020 |
1G#..GXS1# |
2 | ||
| Common parts | ||||
| 90105-08233 | ||||
| 90105-08369 | ||||
| 90119-06479 | ||||
| 90119-06683 | ||||
| 90119-08743 | ||||
| 90179-06074 | ||||
| 90179-06326 | ||||
| 90179-08025 | ||||
| 90179-08150 | ||||
| 91511-B0610 | ||||
| 91611-60640 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1605 | ||||
| 2211 | ||||
| 8716 | ||||
