GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1GFE

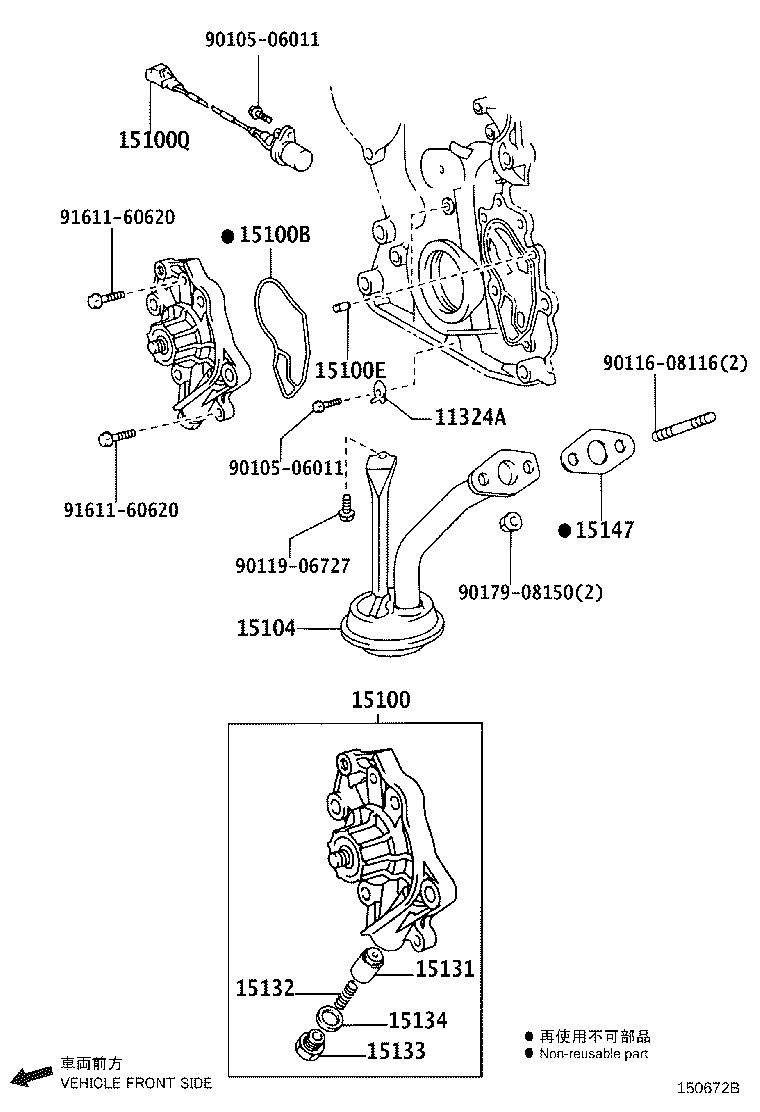

Click highlighted areas on diagram

diagram 11324A 15100 15100B 15100E 15100Q 15104 15131 15132 15133 15134 15147 9010506011 9010506011 9011608116 9011906727 9017908150 9161160620 9161160620
Part # Description Qty Price
11324A - PLATE, TIMING BELT
11324-70020

1GFE..GBS12,GXS12

 1
15100 - PUMP ASSY, OIL
15100-70050

1GFE..GXS12

 1
15100B - RING, O(FOR OIL PUMP)
15188-70060

1GFE..GXS12

 1
15188-70060

1GFE..GXS12

 1
15100E - PIN, STRAIGHT (FOR OIL PUMP SET)
15181-70010

1GFE..GXS12

 2
15181-70010

1GFE..GXS12

 1
15100Q - SENSOR, CRANK POSITION
90919-05023

1GFE..GBS12,GXS12

 1
15104 - STRAINER SUB-ASSY, OIL
15104-70080

1GFE..GBS12,GXS12

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

1G#..GBS12,GXS1#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

1G#..GBS12,GXS1#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1G#..GBS12,GXS1#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67010

1GFE..GBS12,GXS12

 1
15147 - GASKET, OIL STRAINER
15147-70030

1G#..GBS12,GXS1#

 1
Common parts
90105-06011
90116-08116
90119-06727
90179-08150
91611-60620
