GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
(0108- )1GFE

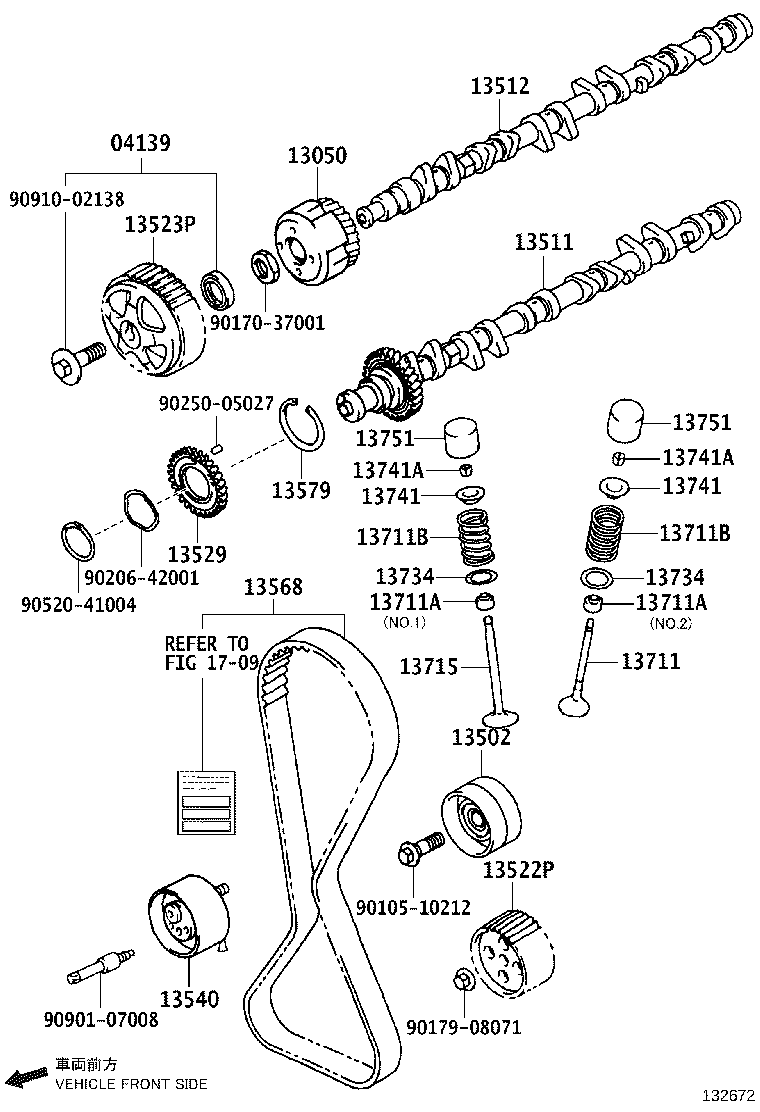

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04139 - BOLT KIT, CAMSHAFT TIMING PULLEY | ||||
| 04139-70010 |
1GFE..GBS12,GXS12 |
1 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-70010 |
1GFE..GBS12,GXS12 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-70080 |
1GFE..GBS12,GXS12 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-70110 |
1GFE..GBS12,GXS12 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-70060 |
1GFE..GBS12,GXS12 |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-70050 |
1GFE..GBS12,GXS12 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-70050 |
1GFE..GBS12,GXS12 |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-70010 |
1GFE..GBS12,GXS12 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-70020 |
1GFE..GBS12,GXS12 |
1 | ||
| 13540-70021 |
1GFE..GBS12,GXS12 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-79235 |
1GFE..GBS12,GXS12 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-70010 |
1GFE..GBS12,GXS12 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-70060 |
1GFE..GBS12,GXS12 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02093 |
1GFE..GBS12,GXS12 NO.2 |
12 | ||
| 90913-02092 |
1GFE..GBS12,GXS12 NO.1 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02093 |
1GFE..GBS12,GXS12 NO.2 |
12 | ||
| 90913-02092 |
1GFE..GBS12,GXS12 NO.1 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-28029 |
1GFE..GBS12,GXS12 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-28029 |
1GFE..GBS12,GXS12 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-70070 |
1GFE..GBS12,GXS12 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-20010 |
1GFE..GBS12,GXS12 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-20010 |
1GFE..GBS12,GXS12 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1GFE..GBS12,GXS12 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
1GFE..GBS12,GXS12 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1GFE..GBS12,GXS12 |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03031 |
1GFE..GBS12,GXS12 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46050 |
1GFE..GBS12,GXS12 厚さ=5.10 |
1 | ||
| 13751-46060 |
1GFE..GBS12,GXS12 厚さ=5.12 |
1 | ||
| 13751-46040 |
1GFE..GBS12,GXS12 厚さ=5.08 |
1 | ||
| 13751-46080 |
1GFE..GBS12,GXS12 厚さ=5.16 |
1 | ||
| 13751-46030 |
1GFE..GBS12,GXS12 厚さ=5.06 |
1 | ||
| 13751-46100 |
1GFE..GBS12,GXS12 厚さ=5.20 |
1 | ||
| 13751-46130 |
1GFE..GBS12,GXS12 厚さ=5.26 |
1 | ||
| 13751-46190 |
1GFE..GBS12,GXS12 厚さ=5.38 |
1 | ||
| 13751-46090 |
1GFE..GBS12,GXS12 厚さ=5.18 |
1 | ||
| 13751-46150 |
1GFE..GBS12,GXS12 厚さ=5.30 |
1 | ||
| 13751-46240 |
1GFE..GBS12,GXS12 厚さ=5.48 |
1 | ||
| 13751-46140 |
1GFE..GBS12,GXS12 厚さ=5.28 |
1 | ||
| 13751-46070 |
1GFE..GBS12,GXS12 厚さ=5.14 |
1 | ||
| 13751-46250 |
1GFE..GBS12,GXS12 厚さ=5.50 |
1 | ||
| 13751-46180 |
1GFE..GBS12,GXS12 厚さ=5.36 |
1 | ||
| 13751-46230 |
1GFE..GBS12,GXS12 厚さ=5.46 |
1 | ||
| 13751-46160 |
1GFE..GBS12,GXS12 厚さ=5.32 |
1 | ||
| 13751-46280 |
1GFE..GBS12,GXS12 厚さ=5.56 |
1 | ||
| 13751-46120 |
1GFE..GBS12,GXS12 厚さ=5.24 |
1 | ||
| 13751-46270 |
1GFE..GBS12,GXS12 厚さ=5.54 |
1 | ||
| 13751-46110 |
1GFE..GBS12,GXS12 厚さ=5.22 |
1 | ||
| 13751-46300 |
1GFE..GBS12,GXS12 厚さ=5.60 |
1 | ||
| 13751-46310 |
1GFE..GBS12,GXS12 厚さ=5.62 |
1 | ||
| 13751-46200 |
1GFE..GBS12,GXS12 厚さ=5.40 |
1 | ||
| 13751-46320 |
1GFE..GBS12,GXS12 厚さ=5.64 |
1 | ||
| 13751-46210 |
1GFE..GBS12,GXS12 厚さ=5.42 |
1 | ||
| 13751-46350 |
1GFE..GBS12,GXS12 厚さ=5.70 |
1 | ||
| 13751-46290 |
1GFE..GBS12,GXS12 厚さ=5.58 |
1 | ||
| 13751-46370 |
1GFE..GBS12,GXS12 厚さ=5.74 |
1 | ||
| 13751-46330 |
1GFE..GBS12,GXS12 厚さ=5.66 |
1 | ||
| 13751-46220 |
1GFE..GBS12,GXS12 厚さ=5.44 |
1 | ||
| 13751-46340 |
1GFE..GBS12,GXS12 厚さ=5.68 |
1 | ||
| 13751-46170 |
1GFE..GBS12,GXS12 厚さ=5.34 |
1 | ||
| 13751-46260 |
1GFE..GBS12,GXS12 厚さ=5.52 |
1 | ||
| 13751-46360 |
1GFE..GBS12,GXS12 厚さ=5.72 |
1 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46050 |
1GFE..GBS12,GXS12 厚さ=5.10 |
1 | ||
| 13751-46060 |
1GFE..GBS12,GXS12 厚さ=5.12 |
1 | ||
| 13751-46040 |
1GFE..GBS12,GXS12 厚さ=5.08 |
1 | ||
| 13751-46080 |
1GFE..GBS12,GXS12 厚さ=5.16 |
1 | ||
| 13751-46030 |
1GFE..GBS12,GXS12 厚さ=5.06 |
1 | ||
| 13751-46100 |
1GFE..GBS12,GXS12 厚さ=5.20 |
1 | ||
| 13751-46130 |
1GFE..GBS12,GXS12 厚さ=5.26 |
1 | ||
| 13751-46190 |
1GFE..GBS12,GXS12 厚さ=5.38 |
1 | ||
| 13751-46090 |
1GFE..GBS12,GXS12 厚さ=5.18 |
1 | ||
| 13751-46150 |
1GFE..GBS12,GXS12 厚さ=5.30 |
1 | ||
| 13751-46240 |
1GFE..GBS12,GXS12 厚さ=5.48 |
1 | ||
| 13751-46140 |
1GFE..GBS12,GXS12 厚さ=5.28 |
1 | ||
| 13751-46070 |
1GFE..GBS12,GXS12 厚さ=5.14 |
1 | ||
| 13751-46250 |
1GFE..GBS12,GXS12 厚さ=5.50 |
1 | ||
| 13751-46180 |
1GFE..GBS12,GXS12 厚さ=5.36 |
1 | ||
| 13751-46230 |
1GFE..GBS12,GXS12 厚さ=5.46 |
1 | ||
| 13751-46160 |
1GFE..GBS12,GXS12 厚さ=5.32 |
1 | ||
| 13751-46280 |
1GFE..GBS12,GXS12 厚さ=5.56 |
1 | ||
| 13751-46120 |
1GFE..GBS12,GXS12 厚さ=5.24 |
1 | ||
| 13751-46270 |
1GFE..GBS12,GXS12 厚さ=5.54 |
1 | ||
| 13751-46110 |
1GFE..GBS12,GXS12 厚さ=5.22 |
1 | ||
| 13751-46300 |
1GFE..GBS12,GXS12 厚さ=5.60 |
1 | ||
| 13751-46310 |
1GFE..GBS12,GXS12 厚さ=5.62 |
1 | ||
| 13751-46200 |
1GFE..GBS12,GXS12 厚さ=5.40 |
1 | ||
| 13751-46320 |
1GFE..GBS12,GXS12 厚さ=5.64 |
1 | ||
| 13751-46210 |
1GFE..GBS12,GXS12 厚さ=5.42 |
1 | ||
| 13751-46350 |
1GFE..GBS12,GXS12 厚さ=5.70 |
1 | ||
| 13751-46290 |
1GFE..GBS12,GXS12 厚さ=5.58 |
1 | ||
| 13751-46370 |
1GFE..GBS12,GXS12 厚さ=5.74 |
1 | ||
| 13751-46330 |
1GFE..GBS12,GXS12 厚さ=5.66 |
1 | ||
| 13751-46220 |
1GFE..GBS12,GXS12 厚さ=5.44 |
1 | ||
| 13751-46340 |
1GFE..GBS12,GXS12 厚さ=5.68 |
1 | ||
| 13751-46170 |
1GFE..GBS12,GXS12 厚さ=5.34 |
1 | ||
| 13751-46260 |
1GFE..GBS12,GXS12 厚さ=5.52 |
1 | ||
| 13751-46360 |
1GFE..GBS12,GXS12 厚さ=5.72 |
1 | ||
| Common parts | ||||
| 90105-10212 | ||||
| 90170-37001 | ||||
| 90179-08071 | ||||
| 90206-42001 | ||||
| 90250-05027 | ||||
| 90520-41004 | ||||
| 90901-07008 | ||||
| 90910-02138 | ||||
| Linked diagrams | ||||
| 1709 | ||||
