GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1GFE

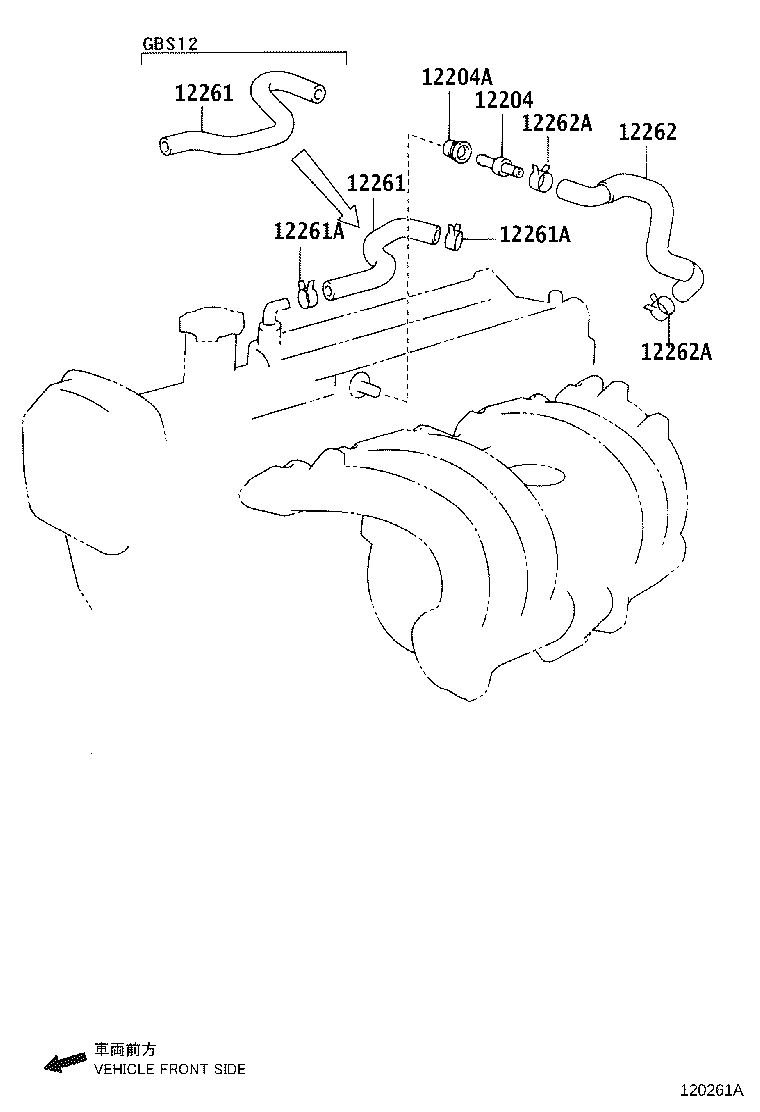

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-70020

1GFE..GBS12,GXS12

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1GFE..GBS12,GXS12

 1
12261 - HOSE, VENTILATION
12261-70080

1GFE..GXS12

 1
12261 - HOSE, VENTILATION
12261-70080

1GFE..GXS12

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

1GFE..GBS12,GXS12

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

1GFE..GBS12,GXS12

 2
12262 - HOSE, VENTILATION, NO.2
12262-70050

1GFE..GBS12,GXS12

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

1GFE..GBS12,GXS12

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

1GFE..GBS12,GXS12

 2
