GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1GFE

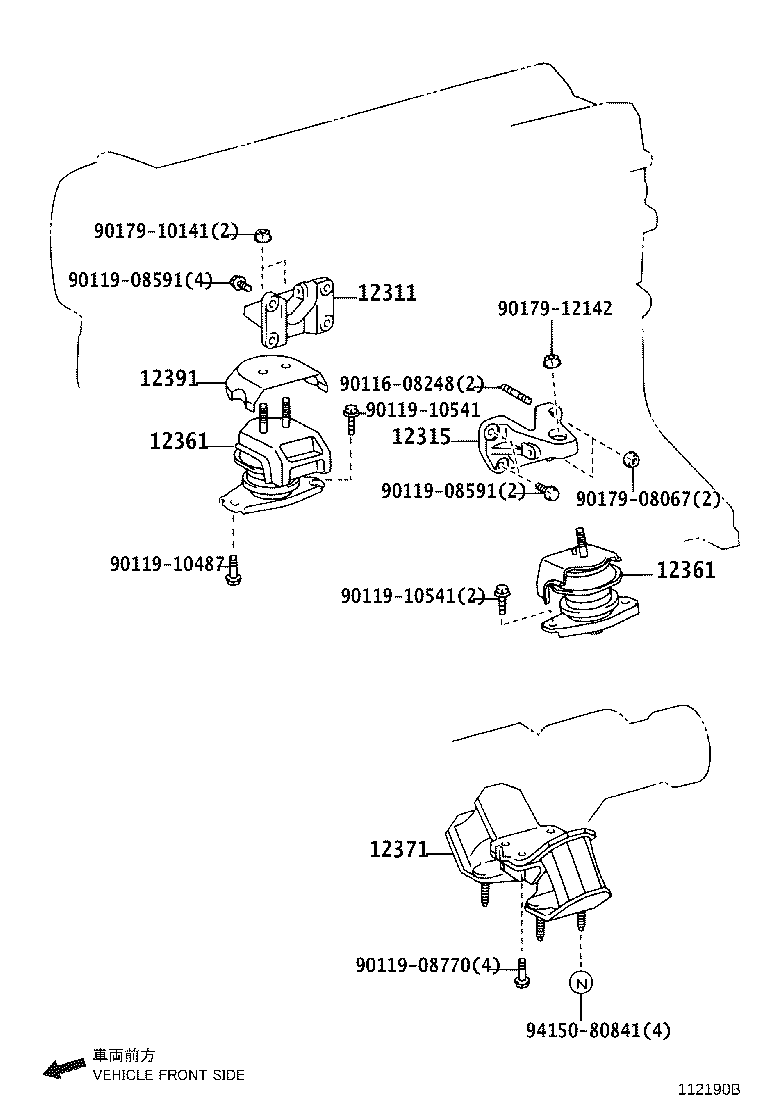

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12391 9011608248 9011908591 9011908591 9011908770 9011910487 9011910541 9011910541 9017908067 9017910141 9017912142 9415080841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70160

1GFE..GBS12,GXS12

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70061

1GFE..GBS12,GXS12

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12360-70050

1GFE..GXS12

右側

 1
12360-70060

1GFE..GBS12,GXS12

右側

 1
12380-70010

1GFE..GBS12,GXS12

左側

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12360-70050

1GFE..GXS12

右側

 1
12360-70060

1GFE..GBS12,GXS12

右側

 1
12380-70010

1GFE..GBS12,GXS12

左側

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46050

1GFE..GBS12,GXS12

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-88341

1GFE..GBS12,GXS12

 1
Common parts
90116-08248
90119-08591
90119-08770
90119-10487
90119-10541
90179-08067
90179-10141
90179-12142
94150-80841
