GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )1GFE..GXS12

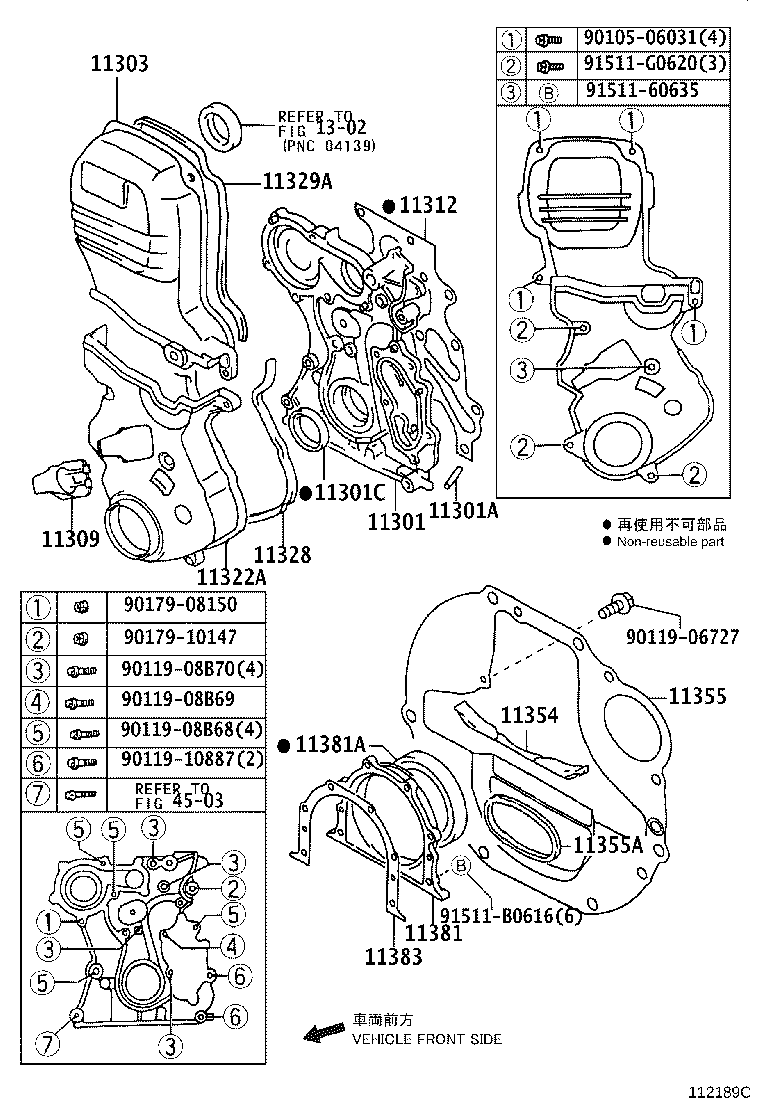

Click highlighted areas on diagram

diagram 11301 11301A 11301C 11303 11309 11312 11322A 11328 11329A 11354 11355 11355A 11381 11381A 11383 1302 4503 9010506031 9011906727 9011908B68 9011908B69 9011908B70 9011910887 9017908150 9017910147 9151160635 91511B0616 91511G0620
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-70060

1GFE..GXS12

 1
11311-70061

1GFE..GXS12

 1
11311-70062

1GFE..GXS12

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-06058

1GFE..GXS12

長さ=38,外径=5.93−6.0

 1
90250-06058

1GFE..GXS12

長さ=38,外径=5.93−6.0

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45015

1GFE..GXS12

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-70030

1GFE..GXS12

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-70020

1GFE..GXS12

 1
11312 - GASKET, FRONT END PLATE
11312-70020

1G#..GBS12,GXS1#

 1
11322A - COVER, TIMING BELT, NO.1
11302-70030

1GFE..GXS12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70050

1GFE..GXS12

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-70030

1GFE..GBS12,GXS12

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1G#..GBS12,GXS1#

 1
11355 - PLATE, REAR END
11355-70020

1G#..GBS12,GXS1#

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01307

1G#..GBS12,GXS1#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1G#..GBS12,GXS1#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75007

1G#..GBS12,GXS1#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70011

1G#..GBS12,GXS1#

 1
Common parts
90105-06031
90119-06727
90119-08B68
90119-08B69
90119-08B70
90119-10887
90179-08150
90179-10147
91511-60635
91511-B0616
91511-G0620
Linked diagrams
1302
4503
