GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )1GFE

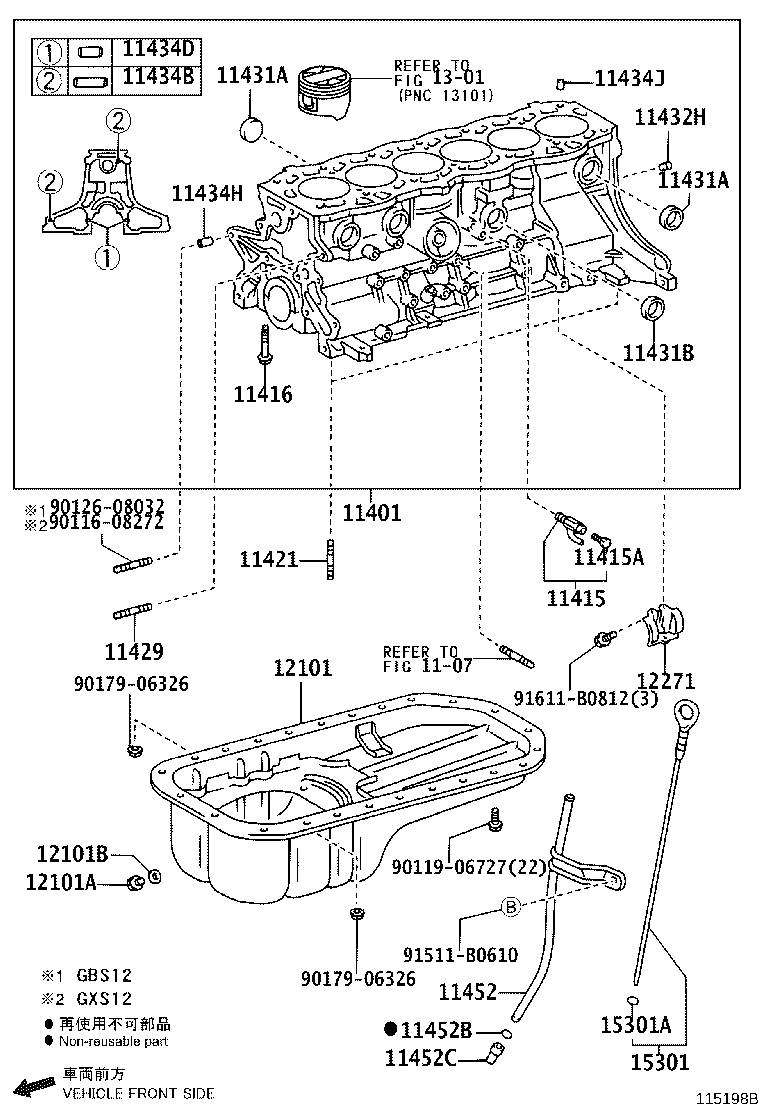

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-80711 |
1GFE..GBS12,GXS12 |
1 | ||
| 11401-80017 |
1GFE..GXS12 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09075 |
1G#..GBS12,GXS1# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1G#..GBS12,GXS1# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10028 |
1G#..GBS12,GXS1# |
14 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06014 |
1G#..GBS12,GXS1# |
2 | ||
| 11429 - BOLT, STUD(FOR ALTERNATOR BRACKET) | ||||
| 90116-10051 |
1G#..GXS1# |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1G#..GBS12,GXS1# |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1G#..GBS12,GXS1# |
10 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
1G#..GBS12,GXS1# |
1 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-53015 |
1G#..GBS12,GXS1# |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1G#..GBS12,GXS1# 長さ=22,外径=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06015 |
1G#..GBS12,GXS1# 長さ=11,外径=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-11021 |
1G#..GBS12,GXS1# |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1G#..GBS12,GXS1# |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-70060 |
1GFE..GBS12,GXS12 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1G#..GBS12,GXS1# |
1 | ||
| 11452C - UNION(FOR OIL LEVEL GAGE GUIDE) | ||||
| 11459-70010 |
1G#..GBS12,GXS1# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-70090 |
1GFE..GBS12,GXS12 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1G#..GBS12,GXS1# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1G#..GBS12,GXS1# |
1 | ||
| 12271 - SCREEN, OIL SEPARATOR | ||||
| 12271-70010 |
1GFE..GBS12,GXS12 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-70100 |
1GFE..GBS12,GXS12 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
1GFE..GBS12,GXS12 |
1 | ||
| Common parts | ||||
| 90116-08272 | ||||
| 90119-06727 | ||||
| 90126-08032 | ||||
| 90179-06326 | ||||
| 91511-B0610 | ||||
| 91611-B0812 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1301 | ||||
