Toyota Crown comfort/sed GXS12 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-79245	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02133	1G#..GBS12,GXS1#	08/2001 - 12/2999	14
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10050	1G#..GBS12,GXS1#	08/2001 - 12/2999	14
11101D - BOLT, STUD(FOR WATER OUTLET)
90116-08304	1GFE..GBS12,GXS12	08/2001 - 12/2999	2
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-70010	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
11101W - SENSOR, CRANK POSITION, NO.1
90919-05026	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
11115 - GASKET, CYLINDER HEAD
11115-70062	1GFE..GBS12,GXS12	03/2003 - 12/2999	1
11115-70061	1GFE..GBS12,GXS12	08/2001 - 03/2003	1
11116A - PLUG, TIGHT, NO.1
96411-41800	1GFE..GBS12,GXS12	08/2001 - 12/2999	2
11116A - PLUG, TIGHT, NO.1
96411-41800	1GFE..GBS12,GXS12	08/2001 - 12/2999	2
11118A - PLUG, STRAIGHT, NO.1
90341-27003	1GFE..GBS12,GXS12	08/2001 - 12/2999	5
11126 - BUSH, EXHAUST VALVE GUIDE
11123-21010	1GFE..GBS12,GXS12 O/S 0.05	08/2001 - 12/2999	12
11122-21010	1GFE..GBS12,GXS12 STD	08/2001 - 12/2999	12
11131 - SEAT, INTAKE VALVE
11131-70030	1GFE..GBS12,GXS12 STD	08/2001 - 12/2999	12
11132-70030	1GFE..GBS12,GXS12 O/S 0.03	08/2001 - 12/2999	12
11135 - SEAT, EXHAUST VALVE
11135-70040	1GFE..GBS12,GXS12 STD	08/2001 - 12/2999	12
11136-70040	1GFE..GBS12,GXS12 O/S 0.03	08/2001 - 12/2999	12
11155A - PIN, RING W/HEAD
90253-10006	1GFE..GBS12,GXS12	08/2001 - 12/2999	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-06221	1GFE..GBS12,GXS12 NO.1	08/2001 - 12/2999	2
90105-07006	1GFE..GBS12,GXS12 NO.3	08/2001 - 12/2999	2
90119-07009	1GFE..GBS12,GXS12 NO.4	08/2001 - 12/2999	24
90105-07004	1GFE..GBS12,GXS12 NO.2	08/2001 - 12/2999	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-06221	1GFE..GBS12,GXS12 NO.1	08/2001 - 12/2999	2
90105-07006	1GFE..GBS12,GXS12 NO.3	08/2001 - 12/2999	2
90119-07009	1GFE..GBS12,GXS12 NO.4	08/2001 - 12/2999	24
90105-07004	1GFE..GBS12,GXS12 NO.2	08/2001 - 12/2999	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-06221	1GFE..GBS12,GXS12 NO.1	08/2001 - 12/2999	2
90105-07006	1GFE..GBS12,GXS12 NO.3	08/2001 - 12/2999	2
90119-07009	1GFE..GBS12,GXS12 NO.4	08/2001 - 12/2999	24
90105-07004	1GFE..GBS12,GXS12 NO.2	08/2001 - 12/2999	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-06221	1GFE..GBS12,GXS12 NO.1	08/2001 - 12/2999	2
90105-07006	1GFE..GBS12,GXS12 NO.3	08/2001 - 12/2999	2
90119-07009	1GFE..GBS12,GXS12 NO.4	08/2001 - 12/2999	24
90105-07004	1GFE..GBS12,GXS12 NO.2	08/2001 - 12/2999	2
11181 - PLATE, CYLINDER HEAD, REAR
11181-70050	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-70021	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
11183 - PLUG, SEMICIRCULAR
11183-70020	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
11191A - GASKET(FOR SPARK PLUG TUBE)
11193-70010	1GFE..GBS12,GXS12	08/2001 - 12/2999	6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-70030	1GFE..GBS12,GXS12 NO.2	08/2001 - 12/2999	1
11201-70080	1GFE..GBS12,GXS12 NO.1	08/2001 - 12/2999	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11202-70030	1GFE..GBS12,GXS12 NO.2	08/2001 - 12/2999	1
11201-70080	1GFE..GBS12,GXS12 NO.1	08/2001 - 12/2999	1
11213 - GASKET, CYLINDER HEAD COVER
11213-70040	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
11219 - COVER, CYLINDER HEAD, NO.3
11203-70010	1GFE..GXS12	08/2001 - 12/2999	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010	1GFE..GBS12,GXS12	08/2001 - 12/2999	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	1G#..GBS12,GXS1#	08/2001 - 12/2999	1
12281A - HANGER, ENGINE, NO.1
12281-70050	1GFE..GXS12	08/2001 - 12/2999	1
12282D - HANGER, ENGINE, NO.2
12282-70020	1GFE..GXS12	08/2001 - 12/2999	1
12631A - BRACKET, ENGINE COVER
12631-70010	1GFE..GXS12	08/2001 - 01/2002	1
12631-70011	1GFE..GBS12,GXS12	01/2002 - 12/2999	1
Common parts
90105-06011
90105-06221
90109-06338
90119-06712
90179-08150
90210-07003
91511-B0610
91511-G0622
91622-61022
91622-B1020
92122-40818

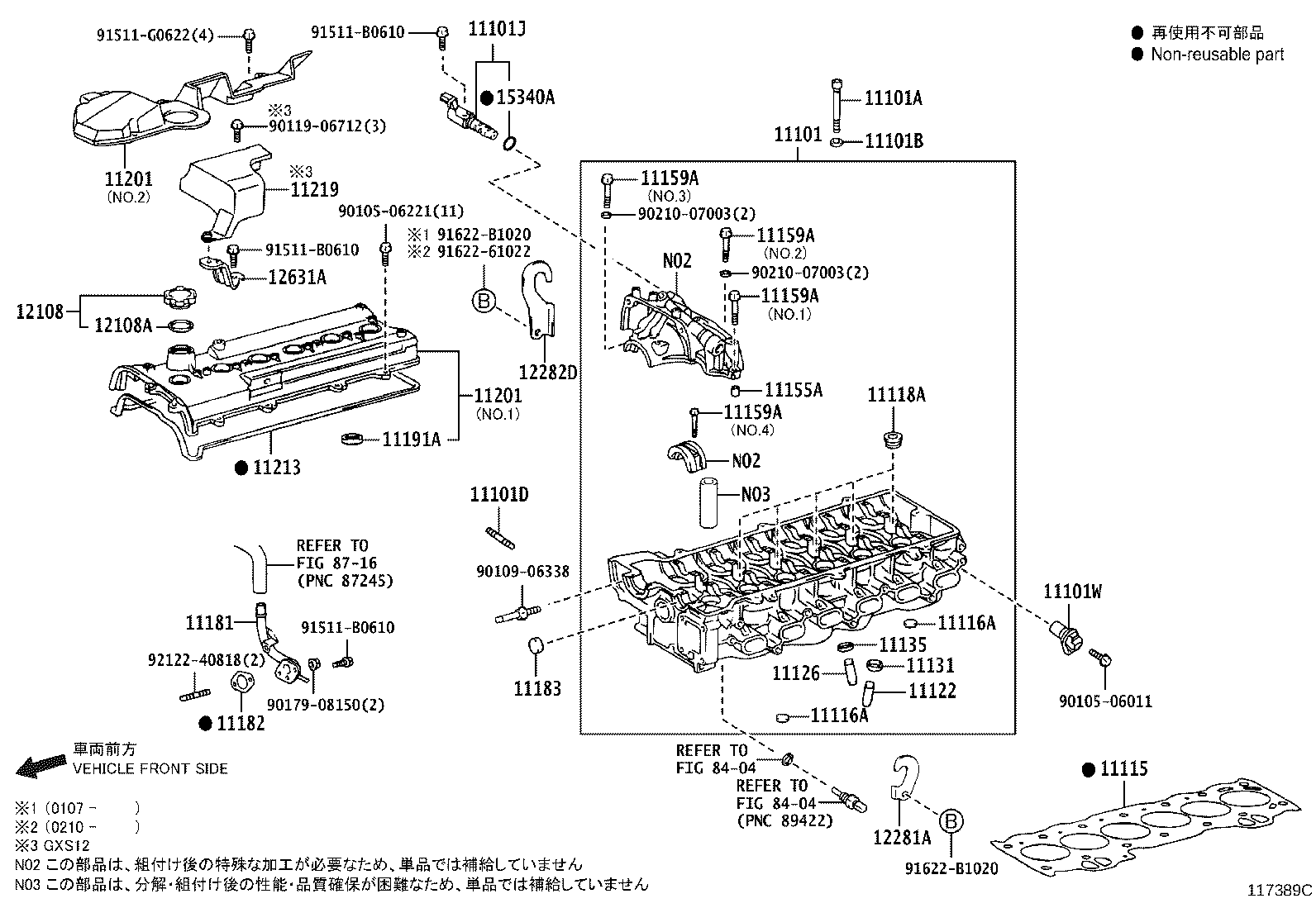

Linked diagrams
8404
8716

GXS12-CEPFK (2001)

(0108- )1GFE
