GXS10-CESFA (2001)

Toyota Crown Comfort/Sed

Production Oct 2001 - Oct 2002
Engine 1GGPE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0210)1GGPE

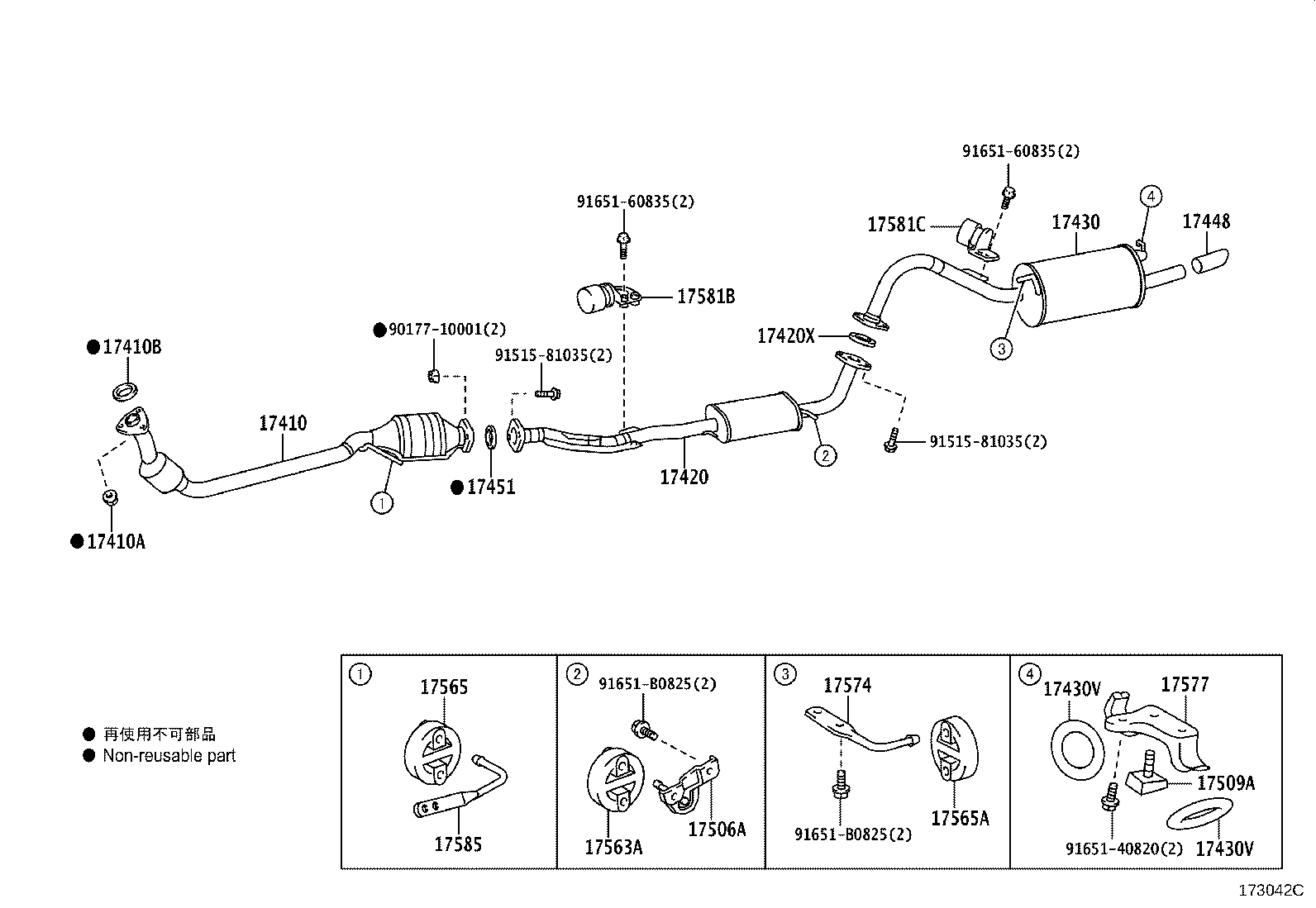

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17430V 17430V 17448 17451 17506A 17509A 17563A 17565 17565A 17574 17577 17581B 17581C 17585 9017710001 9151581035 9151581035 9165140820 9165160835 9165160835 91651B0825 91651B0825
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-43140

1GGPE..GXS10

 1
17410-70310

1GGPE..GXS10

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GGPE,2LTE,4SFE..GXS10,LXS11,SXS11

 3
17410B - GASKET, EXHAUST PIPE
90917-06059

1GGPE..GXS10

 1
90917-06061

1GGPE..GXS10

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-70400

1GGPE..GXS10

 1
17420-70270

1GGPE..GXS10

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

1GGPE,2LTE..GXS10,LXS11

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70610

1GGPE..GXS10

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-73010

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-73010

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 2
17451 - GASKET, EXHAUST PIPE
90917-06041

1GGPE..GXS10

ﾌﾛﾝﾄ

 1
90917-06045

1GGPE..GXS10

ﾘﾔ

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-74040

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-73020

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-46040

1GGPE..GXS10

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-73050

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-70060

1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-46070

1GGPE..GXS10

 1
17585 - HANGER, EXHAUST PIPE
17585-70090

1GGPE..GXS10

 1
17585-70090

1GGPE..GXS10

 1
Common parts
90177-10001
91515-81035
91651-40820
91651-60835
91651-B0825
