GXS10-AESFA (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Feb 2001
Engine 1GGPE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-0102)GXS10

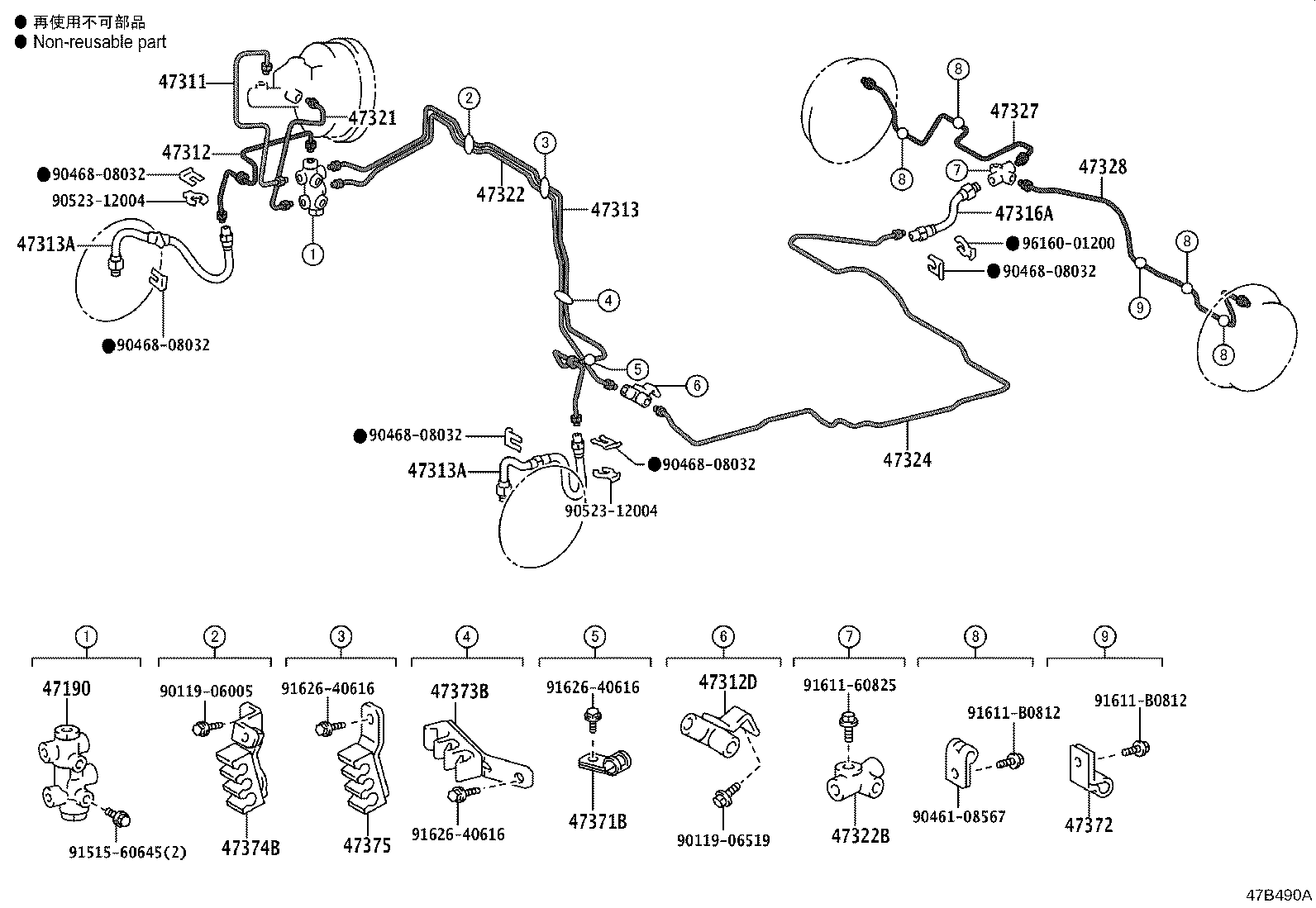

Click highlighted areas on diagram

diagram 47190 47311 47312 47312D 47313 47313A 47313A 47316A 47321 47322 47322B 47324 47327 47328 47371B 47372 47373B 47374B 47375 9011906005 9011906519 9046108567 9046808032 9046808032 9046808032 9046808032 9046808032 9052312004 9052312004 9151560645 9161160825 91611B0812 91611B0812 9162640616 9162640616 9162640616 9616001200
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22030

GXS10,SXS11,YXS1#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-43010

GXS10,LXS11,SXS11,YXS1#

 1
47312D - WAY, 2(FOR REAR BRAKE TUBE)
90412-10118

GXS10,LXS11

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-43020

GXS10,LXS11

 1
47313-43021

GXS10,LXS11

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02619

GXS10,LXS11,SXS11,YXS1#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-43011

GXS10,LXS11

 1
47322-43030

GXS10,LXS11

ｱﾘ(ABS)

 1
47322-43010

GXS10,LXS11

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

GXS10,LXS11,SXS11,YXS1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-43030

GXS10

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06055

GXS10,LXS11,SXS11,YXS1#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90461-06113

GXS10,LXS11,YXS1#..CRW,TAX

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22130

GXS10,LXS11,YXS1#..CRW,TAX

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-22240

GXS10

 1
47371-43010

GXS10,LXS11..CRW,TAX

ｱﾘ(ABS)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-22120

GXS10

 1
47371-22120

GXS10,LXS11..CRW,TAX

 1
47371-43020

GXS10,LXS11..CRW,TAX

ｱﾘ(ABS)

 1
Common parts
90119-06005
90119-06519
90461-08567
90468-08032
90523-12004
91515-60645
91611-60825
91611-B0812
91626-40616
96160-01200

ILLUST NO. 1 OF 2(9701-0102)GXS10

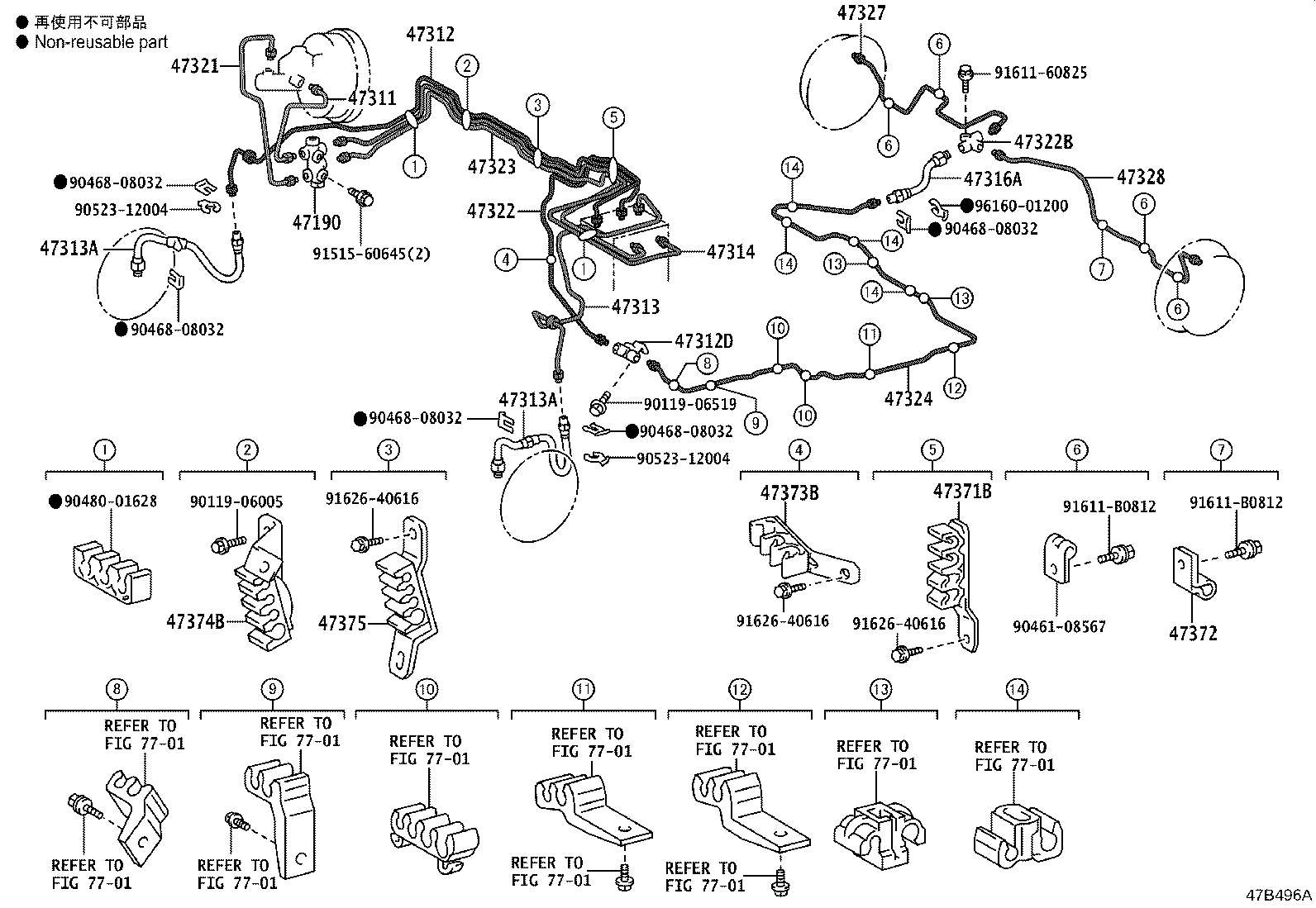

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47190 47311 47312 47312D 47313 47313A 47313A 47314 47316A 47321 47322 47322B 47323 47324 47327 47328 47371B 47372 47373B 47374B 47375 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 9011906005 9011906519 9046108567 9046808032 9046808032 9046808032 9046808032 9046808032 9048001628 9052312004 9052312004 9151560645 9161160825 91611B0812 91611B0812 9162640616 9162640616 9162640616 9616001200
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22030

GXS10,SXS11,YXS1#

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-43010

GXS10,LXS11,SXS11,YXS1#

 1
47312D - WAY, 2(FOR REAR BRAKE TUBE)
90412-10118

GXS10,LXS11

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-43020

GXS10,LXS11

 1
47313-43021

GXS10,LXS11

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02619

GXS10,LXS11,SXS11,YXS1#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-43011

GXS10,LXS11

 1
47322-43030

GXS10,LXS11

ｱﾘ(ABS)

 1
47322-43010

GXS10,LXS11

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

GXS10,LXS11,SXS11,YXS1#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-43030

GXS10

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-43010

GXS10,LXS11,YXS1#..CRW,TAX

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06055

GXS10,LXS11,SXS11,YXS1#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90461-06113

GXS10,LXS11,YXS1#..CRW,TAX

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22130

GXS10,LXS11,YXS1#..CRW,TAX

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-22240

GXS10

 1
47371-43010

GXS10,LXS11..CRW,TAX

ｱﾘ(ABS)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-22120

GXS10

 1
47371-22120

GXS10,LXS11..CRW,TAX

 1
47371-43020

GXS10,LXS11..CRW,TAX

ｱﾘ(ABS)

 1
Common parts
90119-06005
90119-06519
90461-08567
90468-08032
90480-01628
90523-12004
91515-60645
91611-60825
91611-B0812
91626-40616
96160-01200
Linked diagrams
7701
