GXS10-AESFA (1995)
Toyota Crown Comfort/Sed
Production
Dec 1995
-
Feb 2001
Engine
1GGPE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512-0108)GXS10

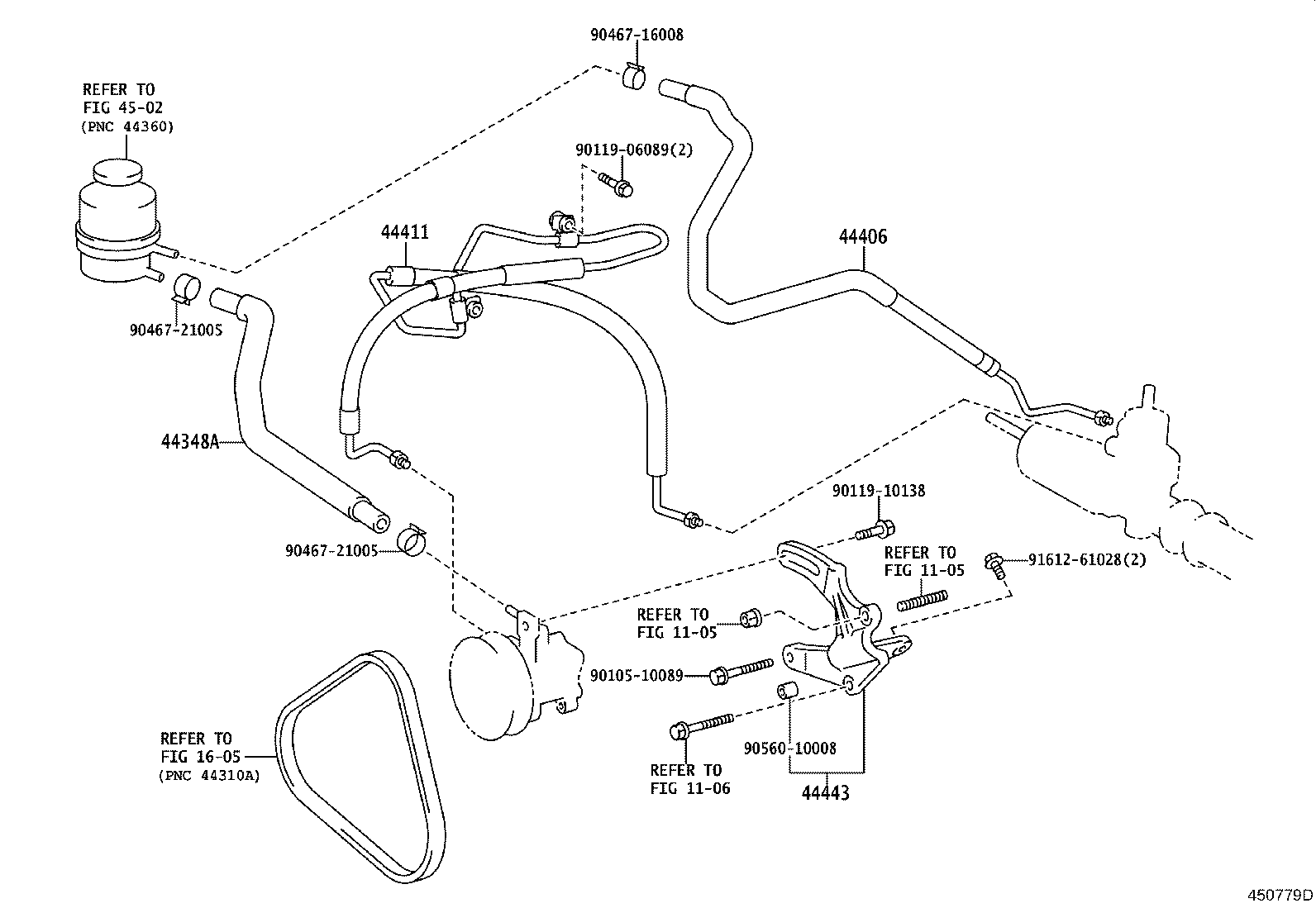

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-22161 |
GXS10 |
1 | ||
| 44348-22160 |
GXS10 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-43010 |
GXS10 |
1 | ||
| 44406-43011 |
GXS10 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-43010 |
GXS10 |
1 | ||
| 44411-43011 |
GXS10 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-30120 |
GXS10 |
1 | ||
| 44440-43010 |
GXS10 |
1 | ||
| Common parts | ||||
| 90105-10089 | ||||
| 90119-06089 | ||||
| 90119-10138 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90560-10008 | ||||
| 91612-61028 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1106 | ||||
| 1605 | ||||
| 4502 | ||||
