GXS10-AEPFA (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Feb 2001
Engine 1GGPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9512-0108)

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88688K 9009904349 9009907087 9009907114 9009907125 9009907131 9331915008 9411040800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22250

GXS10,YXS1#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-43010

GXS10

 1
88320 - COMPRESSOR ASSY, COOLER
88320-43010

GXS10

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

GXS10,LXS11,YXS1#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

GXS10,LXS11,YXS1#

 1
88410 - CLUTCH ASSY, MAGNET
88410-43010

GXS10

 1
Common parts
90099-04349
90099-07087
90099-07114
90099-07125
90099-07131
93319-15008
94110-40800

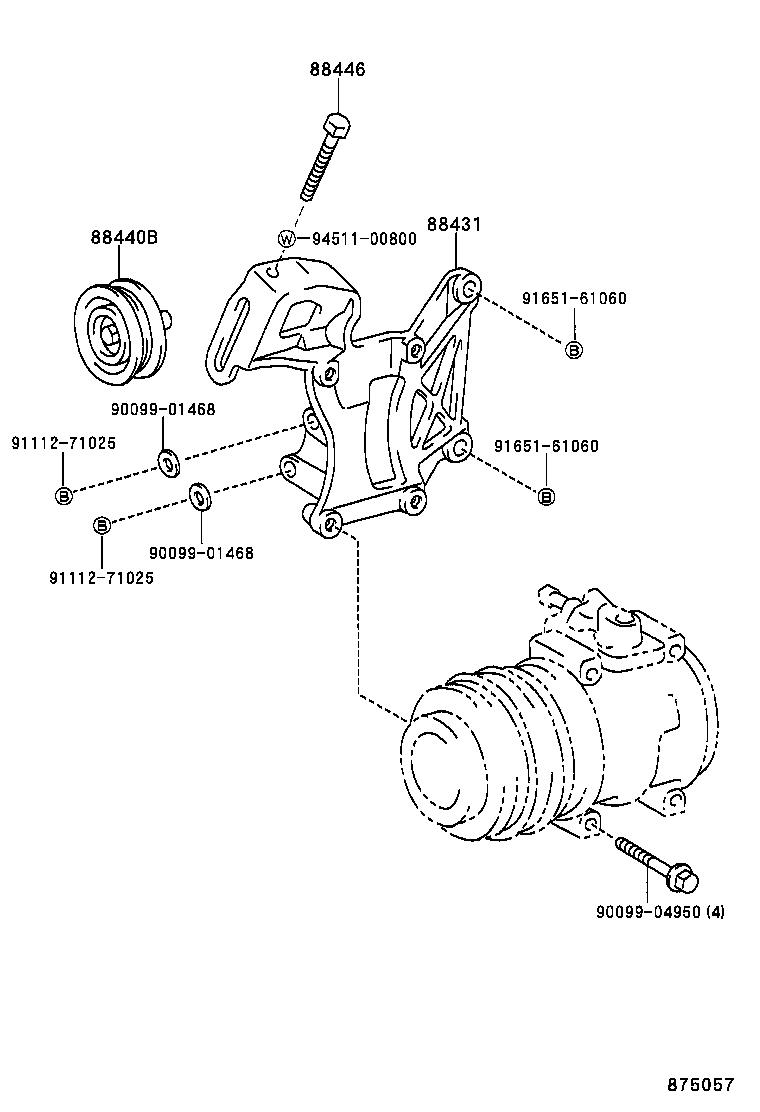

ILLUST NO. 1 OF 2(9512-0102)GXS10

Click highlighted areas on diagram

diagram 88431 88440B 88446 9009901468 9009901468 9009904950 9111271025 9111271025 9165161060 9165161060 9451100800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-43020

GXS10

 1
88440B - PULLEY ASSY, IDLE
88440-26100

GXS10,YXS1#

 1
88446 - BOLT, IDLE PULLEY
90099-04306

GXS10

 1
Common parts
90099-01468
90099-04950
91112-71025
91651-61060
94511-00800
