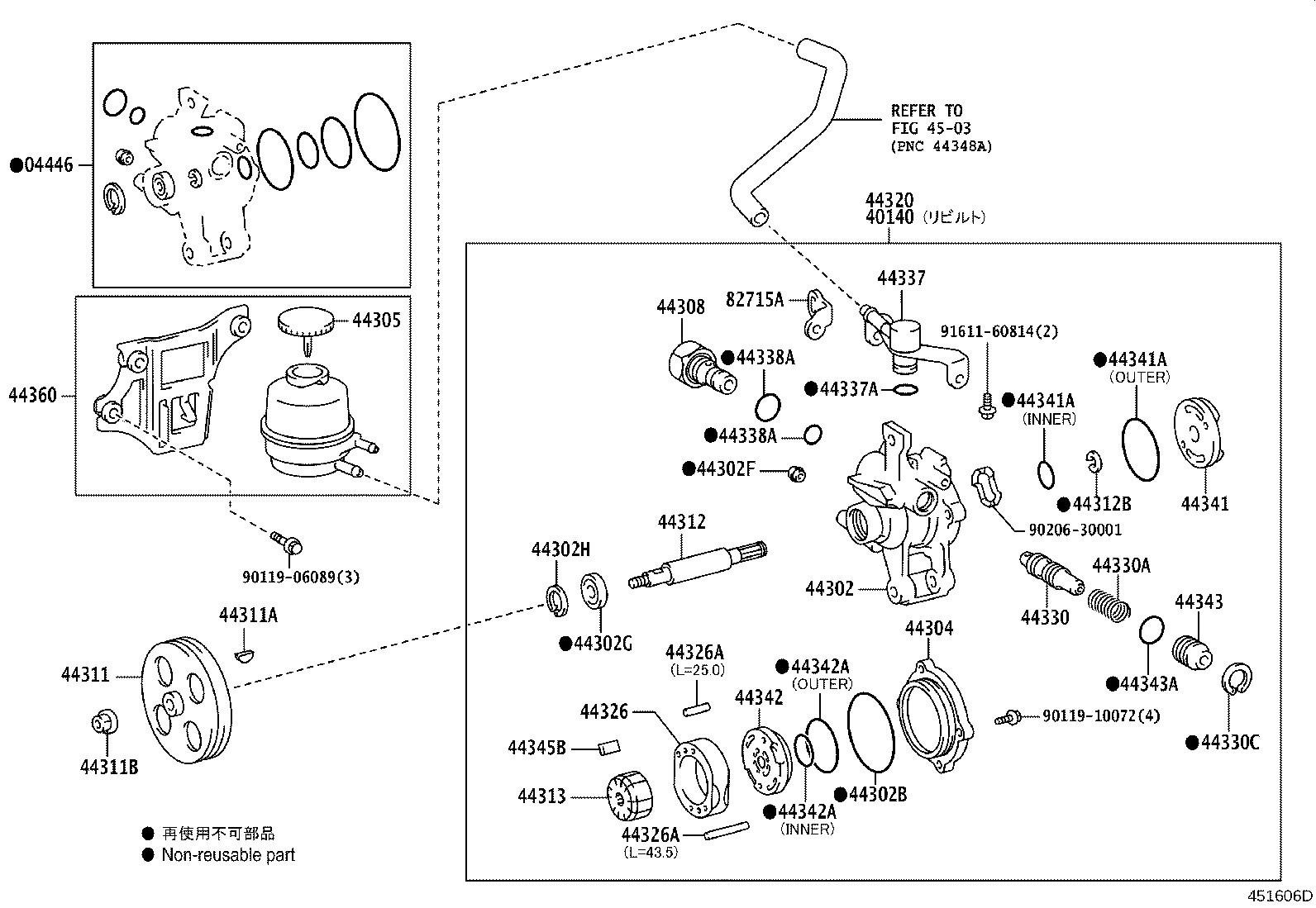

GXS10-AEPFA (1995)
Toyota Crown Comfort/Sed
(9512-9801)GXS10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-27020 |
GXS10,LXS11 |
1 | ||
| 04446-30161 |
GXS10 |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-30600 |
GXS10 TOYODA KOKI |
1 | ||
| 40140-30530 |
GXS10 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22031 |
GXS10 |
1 | ||
| 44302-30140 |
GXS10 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
GXS10 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GXS10,YXS1# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17005 |
GXS10 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
GXS10 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-22031 |
GXS10 |
1 | ||
| 44304-14031 |
GXS10 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28020 |
GXS10,LXS11,SXS11 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-14041 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30090 |
GXS10 |
1 | ||
| 44311-30190 |
GXS10 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GXS10 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12022 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12020 |
GXS10 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GXS10 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22060 |
GXS10,LXS11,SXS11,YXS1# ﾏｰｸ 2 |
1 | ||
| 44313-22040 |
GXS10,LXS11,SXS11,YXS1# ﾏｰｸ無し |
1 | ||
| 44313-22080 |
GXS10,LXS11,SXS11,YXS1# ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
GXS10,LXS11,SXS11,YXS1# ﾏｰｸ 1 |
1 | ||
| 44313-22070 |
GXS10,LXS11,SXS11,YXS1# ﾏｰｸ 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-30600 |
GXS10 |
1 | ||
| 44320-30530 |
GXS10 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-30150 |
GXS10 ﾏｰｸ無し |
1 | ||
| 44325-30160 |
GXS10 ﾏｰｸ 1 |
1 | ||
| 44325-30170 |
GXS10 ﾏｰｸ 2 |
1 | ||
| 44325-30190 |
GXS10 ﾏｰｸ 4 |
1 | ||
| 44325-30180 |
GXS10 ﾏｰｸ 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
GXS10 長さ=43.5,外径=5.0 |
1 | ||
| 90250-05008 |
GXS10 長さ=25,外径=5.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
GXS10 長さ=43.5,外径=5.0 |
1 | ||
| 90250-05008 |
GXS10 長さ=25,外径=5.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-40020 |
GXS10 ﾏｰｸ B |
1 | ||
| 44330-40030 |
GXS10 ﾏｰｸ C |
1 | ||
| 44330-40010 |
GXS10 ﾏｰｸ A |
1 | ||
| 44330-12171 |
GXS10,LXS11 ﾏｰｸ E |
1 | ||
| 44330-40060 |
GXS10 ﾏｰｸ F |
1 | ||
| 44330-12151 |
GXS10,LXS11 ﾏｰｸ C |
1 | ||
| 44330-12131 |
GXS10,LXS11 ﾏｰｸ A |
1 | ||
| 44330-12181 |
GXS10,LXS11 ﾏｰｸ F |
1 | ||
| 44330-40050 |
GXS10 ﾏｰｸ E |
1 | ||
| 44330-12141 |
GXS10,LXS11 ﾏｰｸ B |
1 | ||
| 44330-40040 |
GXS10 ﾏｰｸ D |
1 | ||
| 44330-12161 |
GXS10,LXS11 ﾏｰｸ D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
GXS10 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-30110 |
GXS10 |
1 | ||
| 44337-30020 |
GXS10 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
GXS10,LXS11,SXS11,YXS1# 外径=25.5,内径=22.5 |
1 | ||
| 96711-19014 |
GXS10,LXS11,SXS11,YXS1# 外径=17.0,内径=13.0 |
1 | ||
| 96711-19014 |
GXS10 外径=17.0,内径=13.0 |
2 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
GXS10,LXS11,SXS11,YXS1# 外径=25.5,内径=22.5 |
1 | ||
| 96711-19014 |
GXS10,LXS11,SXS11,YXS1# 外径=17.0,内径=13.0 |
1 | ||
| 96711-19014 |
GXS10 外径=17.0,内径=13.0 |
2 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30030 |
GXS10 |
1 | ||
| 44341-12010 |
GXS10 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-56002 |
GXS10 外側 |
1 | ||
| 90301-21001 |
GXS10 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-56002 |
GXS10 外側 |
1 | ||
| 90301-21001 |
GXS10 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-30020 |
GXS10 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-13004 |
GXS10 内側 |
1 | ||
| 90301-30004 |
GXS10 外側 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-13004 |
GXS10 内側 |
1 | ||
| 90301-30004 |
GXS10 外側 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
GXS10 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
GXS10 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12050 |
GXS10,LXS11,SXS11,YXS1# 長さ=14.989 |
10 | ||
| 44345-12020 |
GXS10,LXS11,SXS11,YXS1# 長さ=14.995 |
10 | ||
| 44345-12040 |
GXS10,LXS11,SXS11,YXS1# 長さ=14.991 |
10 | ||
| 44345-12030 |
GXS10,LXS11,SXS11,YXS1# 長さ=14.993 |
10 | ||
| 44345-12010 |
GXS10,LXS11,SXS11,YXS1# 長さ=14.997 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-22140 |
GXS10,SXS11 |
1 | ||
| 82715A - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-30470 |
GXS10 |
1 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-10072 | ||||
| 90206-30001 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 4503 | ||||
