Toyota Crown comfort/sed GBS12 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
CROWN COMFORT/SED
GBS12-CEPFK (2002)
8401 - SWITCH & RELAY & COMPUTER

GBS12-CEPFK (2002)

Toyota Crown Comfort/Sed

Production Oct 2002 - Aug 2008

Engine 1GFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF 6(9512- )

Click highlighted areas on diagram

ｺﾝﾋﾞﾈ-ｼﾖﾝｽｲﾂﾁ & ｺﾝｿ-ﾙ

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-30210	GBS12	10/2002 - 08/2008	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-33070	GBS12	10/2002 - 08/2008	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-43150	GBS12	10/2002 - 08/2008	1
Common parts
90149-40013
90463-12570
90464-00551
90464-00625
93315-14008
93319-13008
93319-15008
93319-15012
Linked diagrams
8414

ILLUST NO. 6 OF 6(9512- )

Click highlighted areas on diagram

ﾌﾛｱ,ﾙ-ﾌ,ﾄﾞｱ

Part #	Description	Period	Qty
28820 - BOX ASSY, BATTERY JUNCTION
28820-70010	1GFE..GBS12	10/2002 - 12/2999	1
28821 - COVER, BATTERY JUNCTION BOX, UPPER
28821-70010	1GFE..GBS12	10/2002 - 12/2999	1
28831 - PLUG, BATTERY JUNCTION BOX
28831-46010	1GFE..GBS12	10/2002 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09001	GBS12 5A	10/2002 - 05/2004	1
90982-09007	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,32V	10/2002 - 12/2999	1
90982-09002	GBS12,YXS1#..4FC,5F 10A	06/2004 - 12/2999	1
90982-09012	GBS12 25A,ﾐﾆﾋｭｰｽﾞ	10/2002 - 12/2999	1
90982-09005	GBS12,YXS1#..4FC,5F 7.5A	06/2004 - 12/2999	1
90982-09008	GBS12,YXS1#..4FC,5F 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 12/2999	1
90982-09004	GBS12,YXS1#..4FC,5F 20A,黄	06/2004 - 12/2999	1
90982-09018	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,58V	10/2002 - 12/2999	1
90982-09001	GBS12 5A	06/2004 - 12/2999	1
90982-09003	GBS12,YXS1#..4FC,5F 15A	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09001	GBS12 5A	10/2002 - 05/2004	1
90982-09007	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,32V	10/2002 - 12/2999	1
90982-09002	GBS12,YXS1#..4FC,5F 10A	06/2004 - 12/2999	1
90982-09012	GBS12 25A,ﾐﾆﾋｭｰｽﾞ	10/2002 - 12/2999	1
90982-09005	GBS12,YXS1#..4FC,5F 7.5A	06/2004 - 12/2999	1
90982-09008	GBS12,YXS1#..4FC,5F 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 12/2999	1
90982-09004	GBS12,YXS1#..4FC,5F 20A,黄	06/2004 - 12/2999	1
90982-09018	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,58V	10/2002 - 12/2999	1
90982-09001	GBS12 5A	06/2004 - 12/2999	1
90982-09003	GBS12,YXS1#..4FC,5F 15A	06/2004 - 12/2999	1
84231A - SWITCH, COURTESY LAMP
84231-12090	GBS12,YXS11..SDX,STD	06/2007 - 12/2999	1
89373 - SENSOR, LAMP FAILURE INDICATOR
89373-43010	GBS12	10/2002 - 06/2004	1
89373-33220	GBS12,GXS12,YXS10..SED	06/2004 - 08/2008	1
G4283B - SENSOR, BATTERY CURRENT
G4283-43010	GBS12	10/2002 - 12/2999	1
Common parts
90119-06601
90119-08A06
90178-06012
90980-10792
93219-15010
93269-15008
93381-15010
93540-44012
93560-55014
Linked diagrams
7402
8202

ILLUST NO. 3 OF 6(9512- )

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
82600F - FUSE, FUSE BLOCK
90982-09001	GBS12 5A	10/2002 - 05/2004	1
90982-09007	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,32V	10/2002 - 12/2999	1
90982-09002	GBS12,YXS1#..4FC,5F 10A	06/2004 - 12/2999	1
90982-09012	GBS12 25A,ﾐﾆﾋｭｰｽﾞ	10/2002 - 12/2999	1
90982-09005	GBS12,YXS1#..4FC,5F 7.5A	06/2004 - 12/2999	1
90982-09008	GBS12,YXS1#..4FC,5F 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 12/2999	1
90982-09004	GBS12,YXS1#..4FC,5F 20A,黄	06/2004 - 12/2999	1
90982-09018	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,58V	10/2002 - 12/2999	1
90982-09001	GBS12 5A	06/2004 - 12/2999	1
90982-09003	GBS12,YXS1#..4FC,5F 15A	06/2004 - 12/2999	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-43110	GBS12	10/2002 - 08/2008	1
82602 - BLOCK SUB-ASSY, RELAY
82602-30460	GBS12 NO.3	10/2002 - 05/2004	1
82602-30460	GBS12 NO.3	06/2004 - 12/2999	1
82602-43060	GBS12 NO.2	06/2004 - 12/2999	1
82602 - BLOCK SUB-ASSY, RELAY
82602-30460	GBS12 NO.3	10/2002 - 05/2004	1
82602-30460	GBS12 NO.3	06/2004 - 12/2999	1
82602-43060	GBS12 NO.2	06/2004 - 12/2999	1
82610A - BLOCK ASSY, FUSE
82610-43011	GBS12,YXS1#..4FC,5F NO.1	06/2004 - 12/2999	1
82610C - BLOCK ASSY, FUSE
82610-20080	GBS12	10/2002 - 12/2999	1
82666 - HOLDER, CONNECTOR
82666-43030	GBS12,YXS10..SED..4FC NO.2	06/2004 - 12/2999	1
82666 - HOLDER, CONNECTOR
82666-43030	GBS12,YXS10..SED..4FC NO.2	06/2004 - 12/2999	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-43040	GBS12	11/2002 - 05/2004	1
82730-43040	GBS12	06/2004 - 12/2999	1
85916U - RELAY, HEADLAMP, NO.2
90987-02009	GBS12,YXS1#..4FC,5F	06/2004 - 12/2999	1
85939 - RELAY, POWER WINDOW
90987-02027	GBS12,YXS1#	09/2007 - 08/2008	1
85999A - BRACKET, RELAY, NO.2
85999-43020	GBS12,YXS1#..4FC,5F	06/2004 - 12/2999	1
Common parts
82711-1E360
90179-06208
90179-06264
90987-04004
91511-B0614
91511-B0616
91651-60620
93313-15010
94130-61000
Linked diagrams
8202
8404

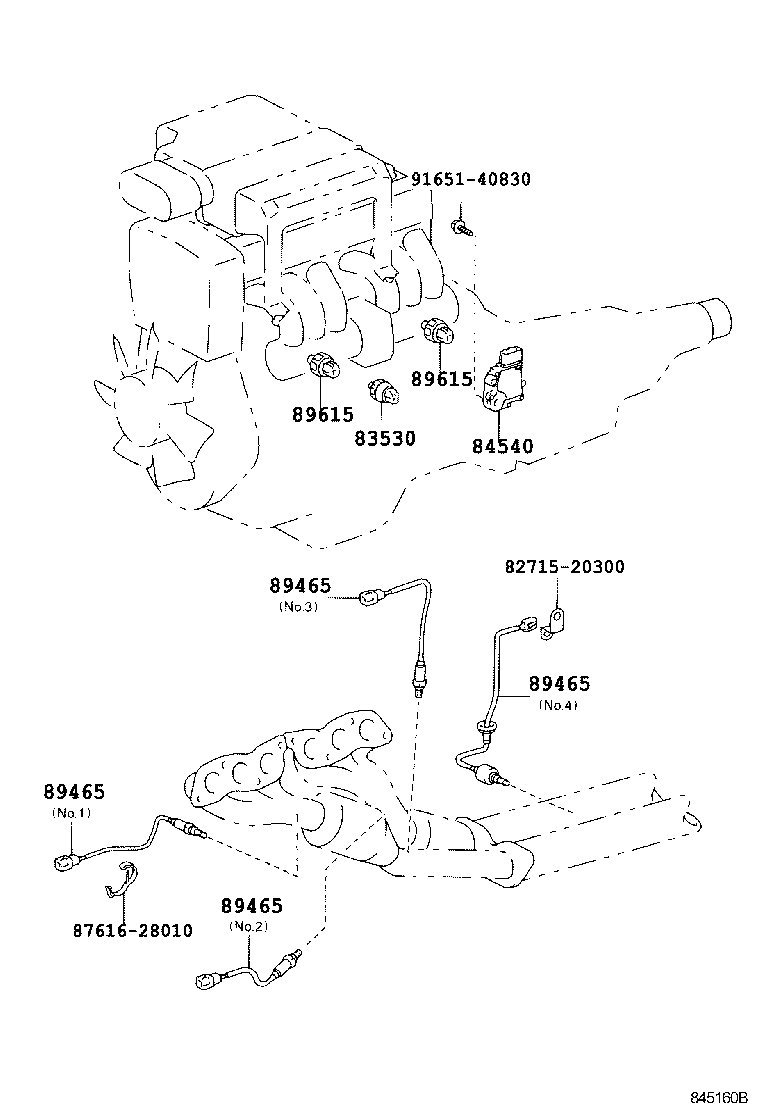

ILLUST NO. 1 OF 6(0210- )GBS12

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ

Part #	Description	Period	Qty
84540 - SWITCH ASSY, NEUTRAL START
84540-30270	GBS12	10/2002 - 08/2008	1
89465 - SENSOR, OXYGEN
89465-43090	GBS12 NO.1	10/2002 - 12/2999	1
89465-43120	GBS12 NO.4	10/2002 - 12/2999	1
89465-43100	GBS12 NO.2	10/2002 - 12/2999	1
89465-43110	GBS12 NO.3	10/2002 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-43090	GBS12 NO.1	10/2002 - 12/2999	1
89465-43120	GBS12 NO.4	10/2002 - 12/2999	1
89465-43100	GBS12 NO.2	10/2002 - 12/2999	1
89465-43110	GBS12 NO.3	10/2002 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-43090	GBS12 NO.1	10/2002 - 12/2999	1
89465-43120	GBS12 NO.4	10/2002 - 12/2999	1
89465-43100	GBS12 NO.2	10/2002 - 12/2999	1
89465-43110	GBS12 NO.3	10/2002 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-43090	GBS12 NO.1	10/2002 - 12/2999	1
89465-43120	GBS12 NO.4	10/2002 - 12/2999	1
89465-43100	GBS12 NO.2	10/2002 - 12/2999	1
89465-43110	GBS12 NO.3	10/2002 - 12/2999	1
89615 - SENSOR, KNOCK CONTROL
89615-52010	GBS12	09/2003 - 12/2999	2
89615 - SENSOR, KNOCK CONTROL
89615-52010	GBS12	09/2003 - 12/2999	2
Common parts
82715-20300
87616-28010
91651-40830

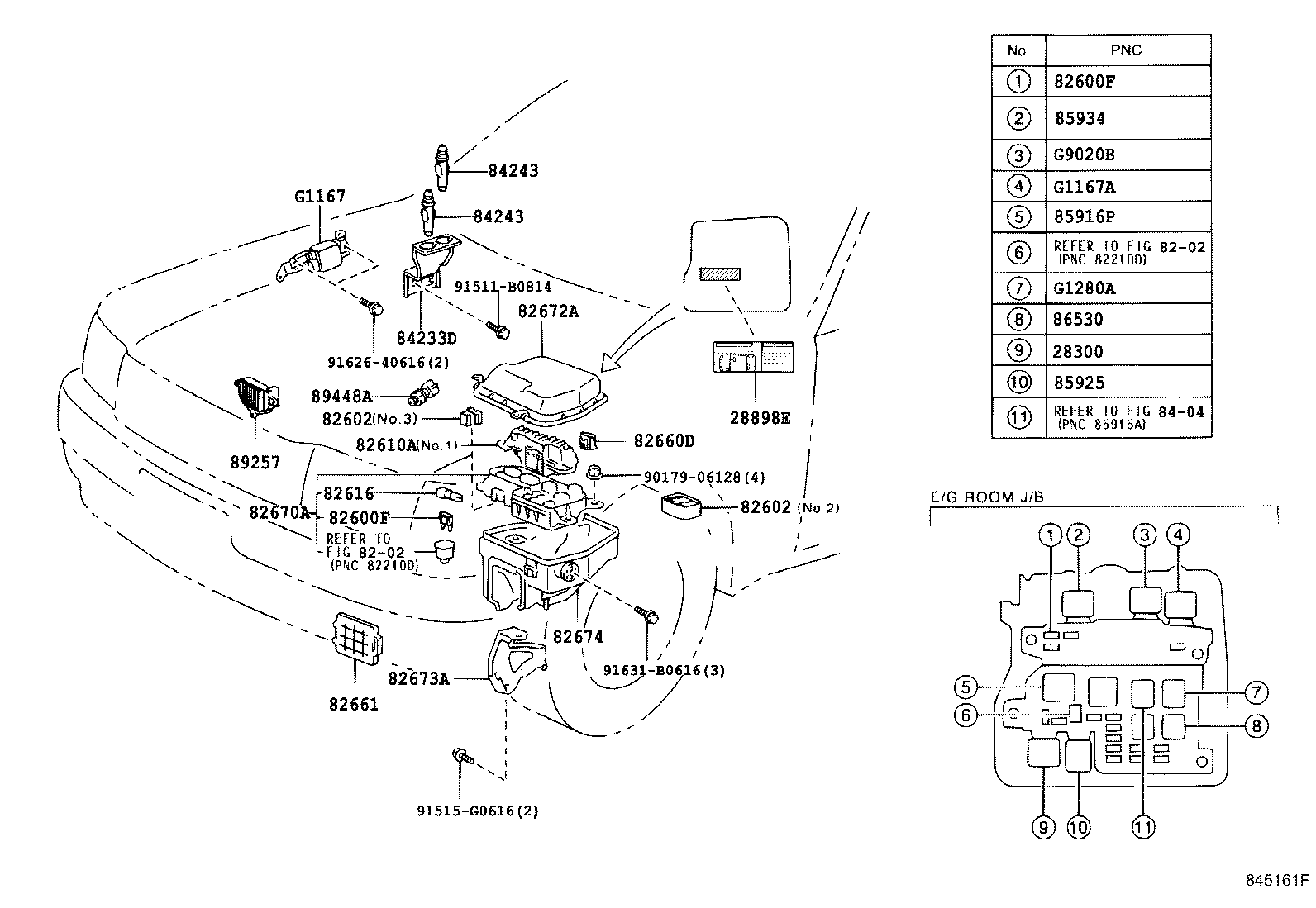

ILLUST NO. 2 OF 6(0210- )GBS12

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
28898E - LABEL, BATTERY INFORMATION
28898-70010	1GFE..GBS12	10/2002 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09001	GBS12 5A	10/2002 - 05/2004	1
90982-09007	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,32V	10/2002 - 12/2999	1
90982-09002	GBS12,YXS1#..4FC,5F 10A	06/2004 - 12/2999	1
90982-09012	GBS12 25A,ﾐﾆﾋｭｰｽﾞ	10/2002 - 12/2999	1
90982-09005	GBS12,YXS1#..4FC,5F 7.5A	06/2004 - 12/2999	1
90982-09008	GBS12,YXS1#..4FC,5F 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 12/2999	1
90982-09004	GBS12,YXS1#..4FC,5F 20A,黄	06/2004 - 12/2999	1
90982-09018	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,58V	10/2002 - 12/2999	1
90982-09001	GBS12 5A	06/2004 - 12/2999	1
90982-09003	GBS12,YXS1#..4FC,5F 15A	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09001	GBS12 5A	10/2002 - 05/2004	1
90982-09007	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,32V	10/2002 - 12/2999	1
90982-09002	GBS12,YXS1#..4FC,5F 10A	06/2004 - 12/2999	1
90982-09012	GBS12 25A,ﾐﾆﾋｭｰｽﾞ	10/2002 - 12/2999	1
90982-09005	GBS12,YXS1#..4FC,5F 7.5A	06/2004 - 12/2999	1
90982-09008	GBS12,YXS1#..4FC,5F 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	06/2004 - 12/2999	1
90982-09004	GBS12,YXS1#..4FC,5F 20A,黄	06/2004 - 12/2999	1
90982-09018	GBS12 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,58V	10/2002 - 12/2999	1
90982-09001	GBS12 5A	06/2004 - 12/2999	1
90982-09003	GBS12,YXS1#..4FC,5F 15A	06/2004 - 12/2999	1
82602 - BLOCK SUB-ASSY, RELAY
82602-30460	GBS12 NO.3	10/2002 - 05/2004	1
82602-30460	GBS12 NO.3	06/2004 - 12/2999	1
82602-43060	GBS12 NO.2	06/2004 - 12/2999	1
82602 - BLOCK SUB-ASSY, RELAY
82602-30460	GBS12 NO.3	10/2002 - 05/2004	1
82602-30460	GBS12 NO.3	06/2004 - 12/2999	1
82602-43060	GBS12 NO.2	06/2004 - 12/2999	1
82610A - BLOCK ASSY, FUSE
82610-43011	GBS12,YXS1#..4FC,5F NO.1	06/2004 - 12/2999	1
82670A - BLOCK ASSY, JUNCTION, NO.1
82720-43070	GBS12	10/2002 - 12/2999	1
82672A - COVER, JUNCTION BLOCK
82672-43080	GBS12	10/2002 - 12/2999	1
89257 - COMPUTER, COOLING FAN
89257-48010	GBS12	10/2002 - 08/2008	1
89448A - SENSOR, POWER STEERING OIL PRESSURE
89448-51010	GBS12	10/2002 - 08/2008	1
G1167 - CONTROLLER, OIL PUMP MOTOR
G1167-43010	GBS12	10/2002 - 12/2999	1
G1167A - RELAY (FOR OIL PUMP MOTOR)
90987-02022	GBS12	10/2002 - 08/2003	1
90987-02028	GBS12	08/2003 - 12/2999	1
G1280A - RELAY, MOTOR GENERATOR MAIN
90987-04002	GBS12	10/2002 - 12/2999	1
G9020B - RELAY, C/P CLUTCH(MHV)
90987-02028	GBS12	08/2003 - 12/2999	1
90987-02022	GBS12	10/2002 - 08/2003	1
Common parts
90179-06128
91511-B0814
91515-G0616
91626-40616
91631-B0616
Linked diagrams
8202
8404
