GBS12-CEPFK (2002)

Toyota Crown Comfort/Sed

Production Oct 2002 - Aug 2008
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

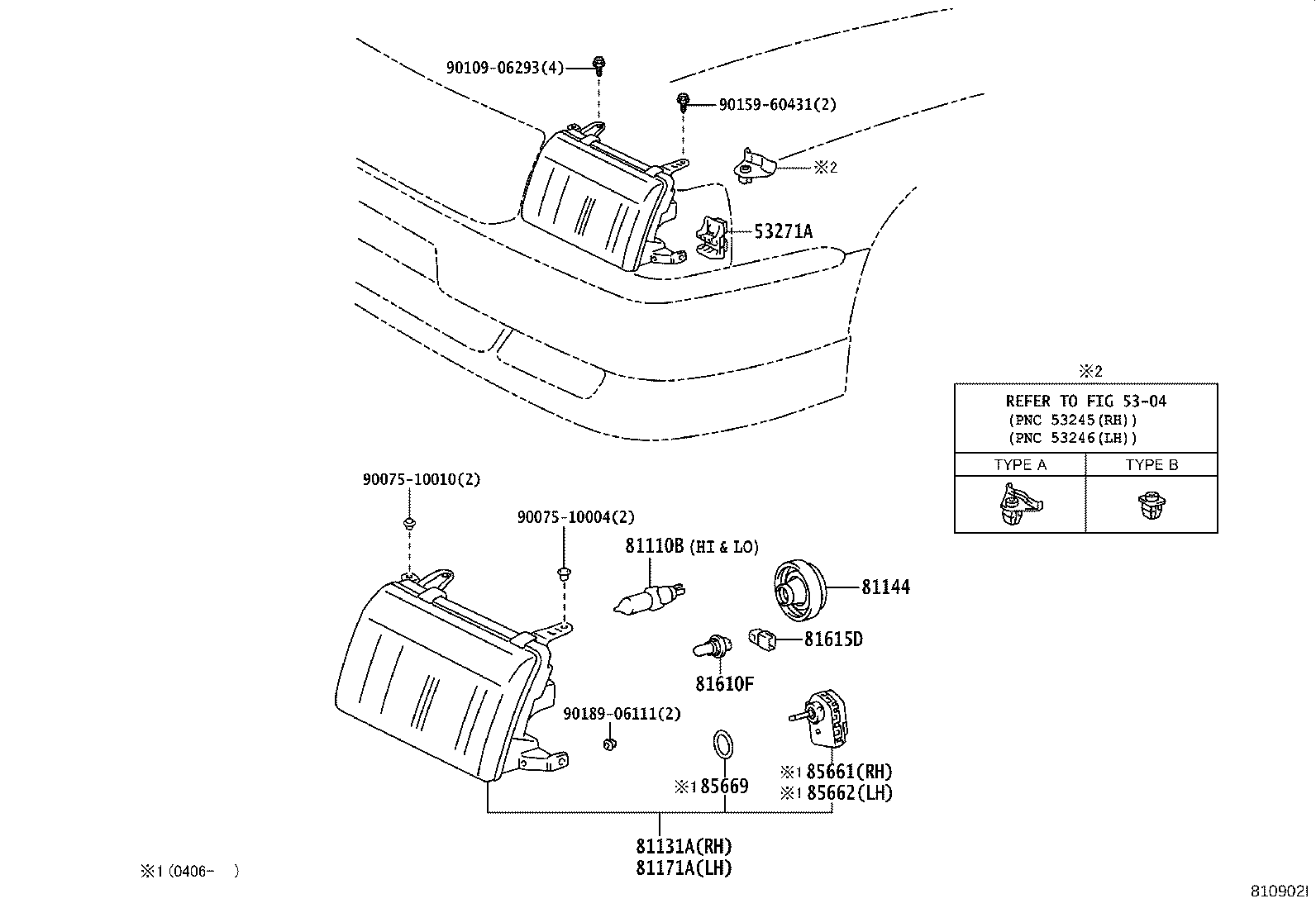

Click highlighted areas on diagram

diagram 5304 53271A 81110B 81131A 81144 81171A 81610F 81615D 85661 85662 85669 9007510004 9007510010 9010906293 9015960431 9018906111
Part # Description Qty Price
81131A - UNIT, HEADLAMP, RH
81130-43030

YXS10..CRW..4HC;GBS12,YXS1#..4FC,5F

 1
81171A - UNIT, HEADLAMP, LH
81170-43030

YXS10..CRW..4HC;GBS12,YXS1#..4FC,5F

 1
81615D - SOCKET, CLEARANCE LAMP
90075-60072

YXS10..CRW..4HC;GBS12,YXS1#..4FC,5F

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-22020

YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-22020

YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX

 2
Common parts
90075-10004
90075-10010
90109-06293
90159-60431
90189-06111
Linked diagrams
5304
