GBS12-CEPFK (2002)

Toyota Crown Comfort/Sed

Production Oct 2002 - Aug 2008
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

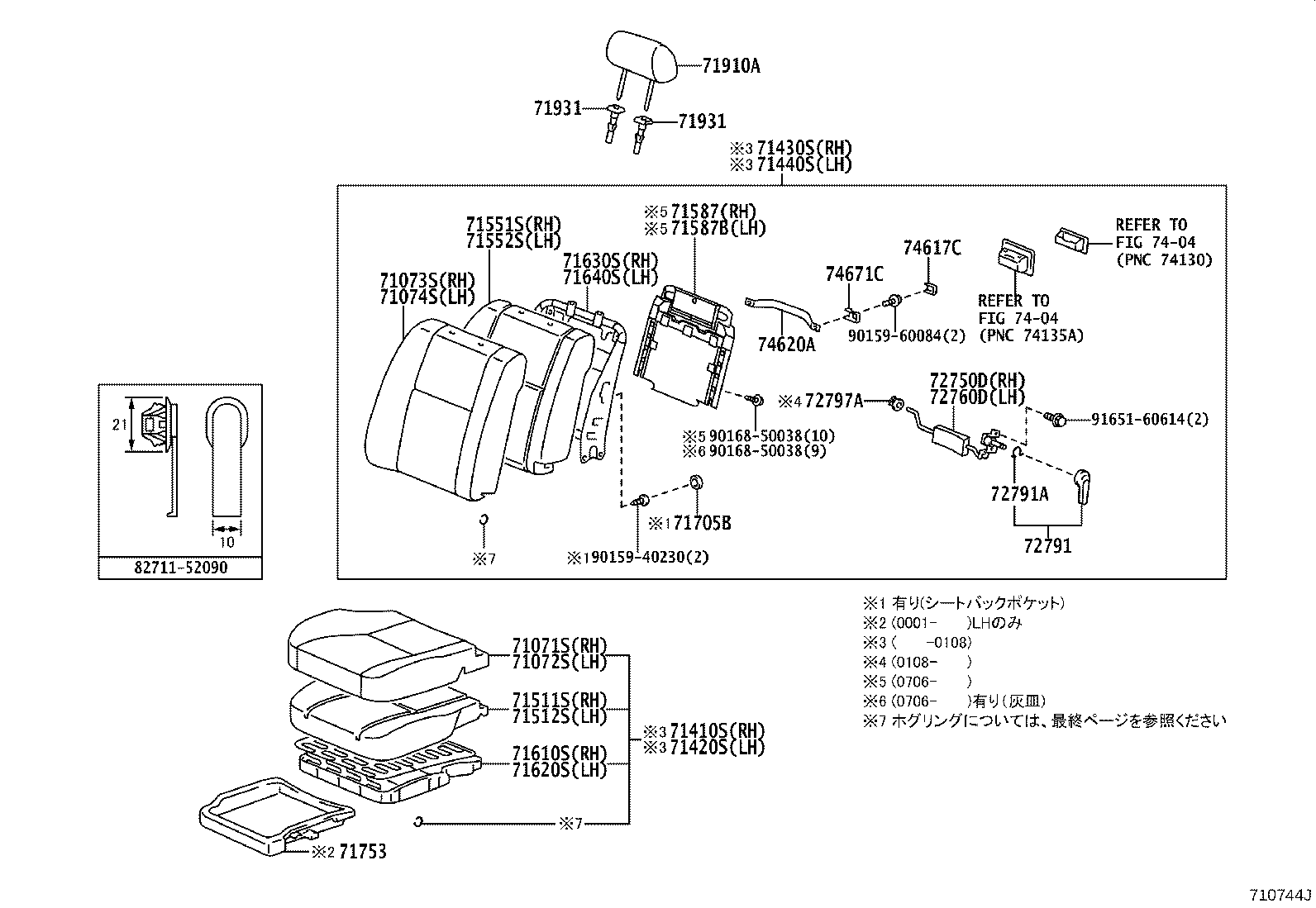

ILLUST NO. 1 OF 3(9512- )GBS12,GXS1#,LXS11,SXS1#,YXS1# ; (0709- )TSS1#

Click highlighted areas on diagram

ｾﾊﾟﾚｰﾄ ｼｰﾄ

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587B 71610S 71620S 71630S 71640S 71705B 71753 71910A 71931 71931 72750D 72760D 72791 72791A 72797A 7404 7404 74617C 74620A 74671C 8271152090 9015940230 9015960084 9016850038 9016850038 9165160614
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-43090B1

GBS12,GXS12,YXS10..SED..4FC

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM10

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-43300B1

GBS12,GXS12,YXS10..SED..4FC

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM10

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-43160B1

GBS12,GXS12,YXS10..SED..4FC

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-43160B1

GBS12

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM10

 1
71073-43160B1

GBS12

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM10

 1
71074-43190B1

GBS12

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ) & ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-43051

GBS12,YXS10..SED

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-43071

GBS12,YXS10..SDX

 1
71552-43051

GBS12,YXS10..SED

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ)

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-43080

GBS12,YXS1#..SAL,SDX,SG

 1
71587-43010

GBS12,YXS1#..SAL,SDX,SG

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-43030

GBS12,YXS10..SED

ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ)

 1
71587-43010

GBS12,YXS10..SDX

 1
71587-43080

GBS12

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71013-43100

GBS12,YXS10..SED

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71013-43100

GBS12,YXS10..SDX

 1
71014-43111

GBS12,YXS10..SED

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ)

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-43090B0

GBS12,GXS12,YXS10..SED

ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾌﾂﾄﾚｽﾄ) & ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#,助手席

 1
71910-43070B0

GBS12

ｼ-ﾄ = TYPE C-*104,DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020B0

GBS12,YXS1#..4FC,5F

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010B2

GBS12,YXS1#..4FC,5F

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020B0

GBS12,YXS1#..4FC,5F

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-47010B2

GBS12,YXS1#..4FC,5F

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
72791 - LEVER, LUMBAR SUPPORT
72791-43010B0

GBS12,GXS12,SXS13,YXS1#..4FC,5F

DK.GRAY,TRIM1#

 1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01006

GBS12,YXS11;YXS10..4FC..(DLX,SAL,SDX)

 1
74617C - PLUG, ASSIST GRIP
74617-43010B0

GBS12,GXS12,SXS13,YXS1#..4FC,5F

DK.GRAY,TRIM1#

 4
74620A - GRIP ASSY, ASSIST, REAR
74690-43010B0

GBS12,GXS12,SXS13,YXS1#..4FC,5F

DK.GRAY,TRIM1#

 2
74671C - SUPPORT, ASSIST GRIP
74671-40010

GBS12,YXS1#..4FC,5F

 4
Common parts
82711-52090
90159-40230
90159-60084
90168-50038
91651-60614
Linked diagrams
7404

ILLUST NO. 2 OF 3(9512- )GBS12,GXS1#,LXS11,SXS1#,YXS1# ; (0709- )TSS1#

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71862 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72129 72129 72129 72129 72137 72138 72138 72157A 72158 72158 72201A 72201B 72347D 72347E 72457 72457 72501D 72501E 72525A 72526 9011910578 9011910772 9011910772 9011910772 9011910772 9011910772 9011910921 9016740044 9016740044 9052001006 9052001006 91511B0814 91511B0814 91511B0814 91511B0814 9151281025 9151281025 9151281025 9151281025 9151281025 9616000600
Part # Description Qty Price
Common parts
90119-10578
90119-10772
90119-10921
90167-40044
90520-01006
91511-B0814
91512-81025
96160-00600

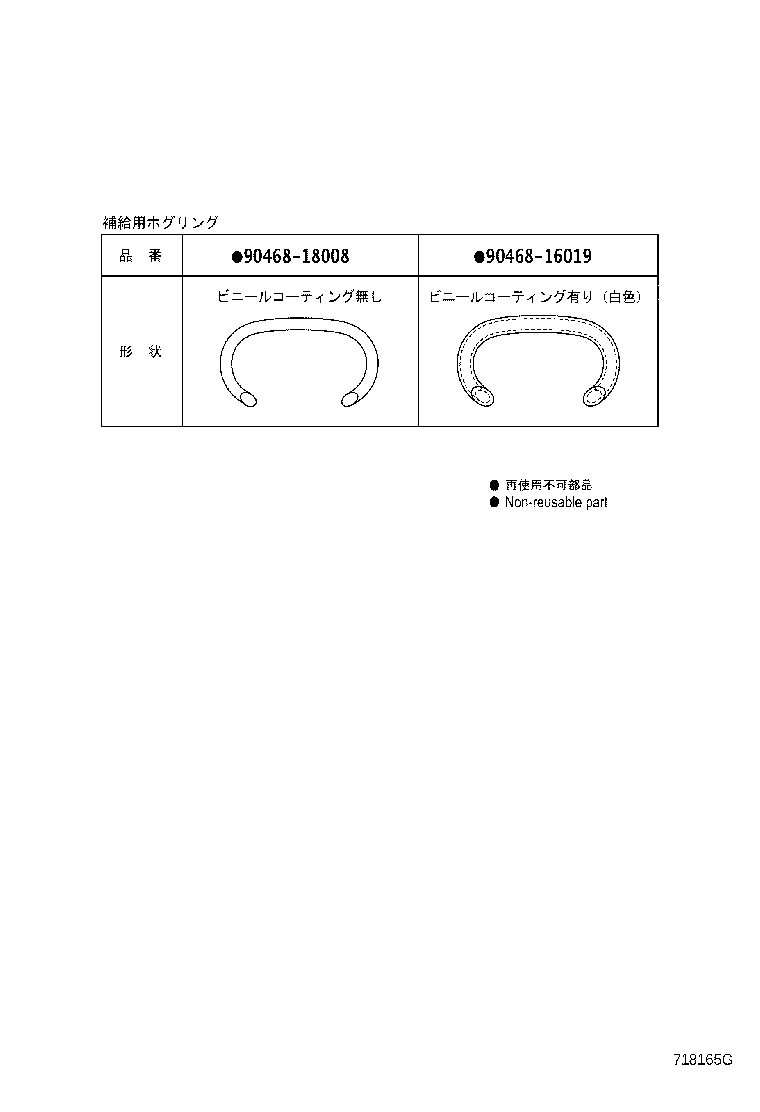

(9512- )

Click highlighted areas on diagram

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
