GBS12-CEPFK (2002)

Toyota Crown Comfort/Sed

Production Oct 2002 - Aug 2008
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0210- )GBS12

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ,RH

diagram 5302 5701 57497B 61023B 61037A 61108A 61145B 61231 61235B 61235B 61245 61261 61341C 61343A 61403C 61413C 61607E 61609B 61621C 61625G 61627E 61631A 61641C 61681D 61711 61731B 61825A 61825A 61826A 6215589101 62465C 63171A 9011906061 9015960602 9015960602 9018906150 9018906155 9046308077
Part # Description Qty Price
61145B - GUSSET, FRONT BODY PILLAR, LOWER RH
61145-43010

GBS12,YXS1#

 1
61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-43903

GBS12

 1
61609B - BRACE SUB-ASSY, QUARTER PANEL
61609-43010

GBS12

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-43901

GBS12

 1
61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH
61641-43011

GBS12,YXS1#..4FC,5F

 1
61681D - PLATE, QUARTER PANEL, LOWER NO.1
61681-43010

GBS12

 1
Common parts
62155-89101
90119-06061
90159-60602
90189-06150
90189-06155
90463-08077
Linked diagrams
5302
5701

ILLUST NO. 2 OF 2(0210- )GBS12

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ,LH

diagram 5302 5701 57498B 61024B 61038A 61109A 61146B 61182B 61232 61236C 61236C 61236C 61238D 61246 61262 61342C 61344A 61404E 61414C 61608D 61622C 61626G 61632A 61642C 61646B 61712 61732B 61817B 61825A 61825A 61826A 6215589101 62466B 62589E 63171A 9011906061 9015960602 9015960602 9017908025 9018906150 9018906155 9165160816
Part # Description Qty Price
61146B - GUSSET, FRONT BODY PILLAR, LOWER LH
61146-43010

GBS12,YXS1#..4FC,5F

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-43021

GBS12

ｳｴﾙｷﾔﾌﾞ

 1
61344A - PILLAR, CENTER BODY, INNER LH
61308-43012

GBS12;YXS10..CRW..4FC

ｳｴﾙｷﾔﾌﾞ

 1
61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH
61642-43011

GBS12,YXS1#..4FC,5F

 1
61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-43010

GBS12,YXS1#..4FC,5F

 1
Common parts
62155-89101
90119-06061
90159-60602
90179-08025
90189-06150
90189-06155
91651-60816
Linked diagrams
5302
5701

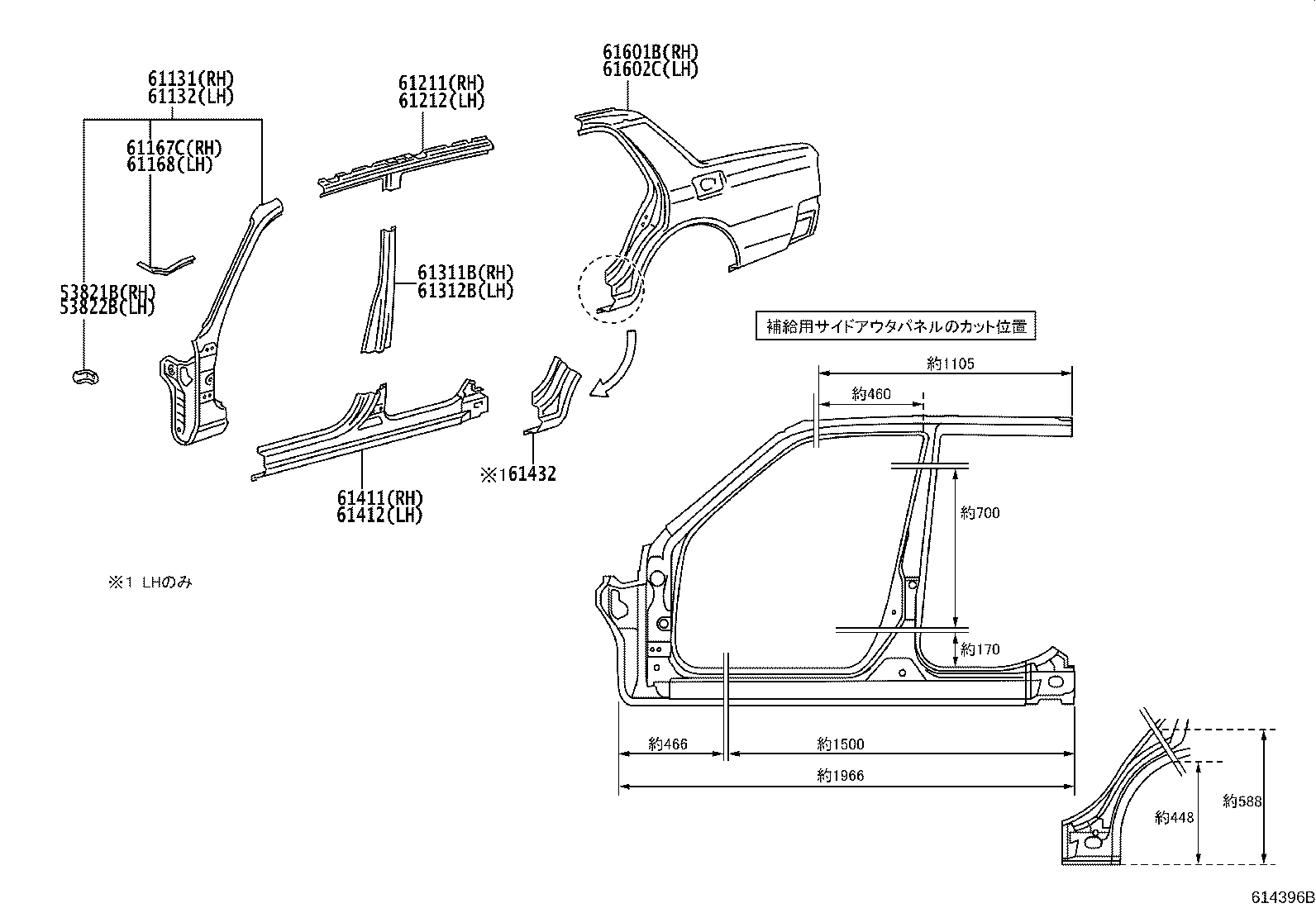

ILLUST NO. 1 OF 2(9512- )

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ,ﾅｼ(ｺｳｶｲｺｳｺｳｾｷﾄﾞｱ)

diagram 53821B 53822B 61131 61132 61167C 61168 61211 61212 61311B 61312B 61411 61412 61432 61601B 61602C
Part # Description Qty Price
61601B - PANEL SUB-ASSY, QUARTER, RH
61601-43905

YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX

 1
