GBS12-CEPFK (2002)
Toyota Crown Comfort/Sed
Production
Oct 2002
-
Aug 2008
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512- )

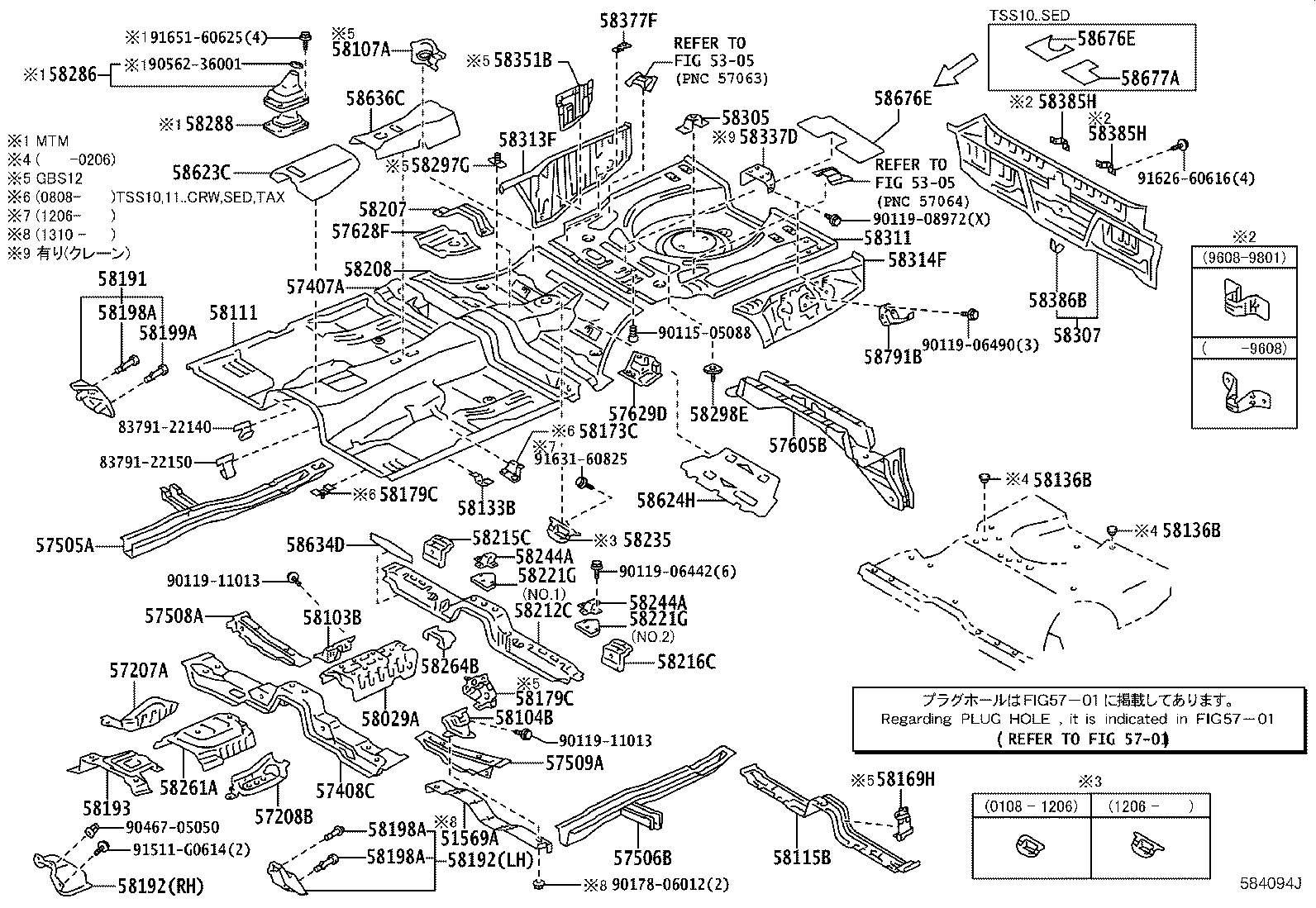

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1 | ||||
| 58107-43010 |
GBS12 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-43014 |
GBS12,YXS10..SED..4FC |
1 | ||
| 58169H - PATCH, FRONT FLOOR, REAR | ||||
| 58169-43010 |
GBS12 |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-43010 |
GBS12 |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-43010 |
GBS12 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-43020 |
GBS12 |
1 | ||
| 58297G - RETAINER, FLOOR CLAMP | ||||
| 58297-89107 |
GBS12 |
2 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-43090 |
GBS12 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-43020 |
GBS12 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-43030 |
GBS12 |
1 | ||
| 58351B - REINFORCEMENT, REAR FLOOR PANEL, RH | ||||
| 58351-43010 |
GBS12 |
1 | ||
| Common parts | ||||
| 83791-22140 | ||||
| 83791-22150 | ||||
| 90115-05088 | ||||
| 90119-06442 | ||||
| 90119-06490 | ||||
| 90119-08972 | ||||
| 90119-11013 | ||||
| 90178-06012 | ||||
| 90467-05050 | ||||
| 90562-36001 | ||||
| 91511-G0614 | ||||
| 91626-60616 | ||||
| 91631-60825 | ||||
| 91651-60625 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 5701 | ||||
