GBS12-CEPFK (2002)

Toyota Crown Comfort/Sed

Production Oct 2002 - Aug 2008
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

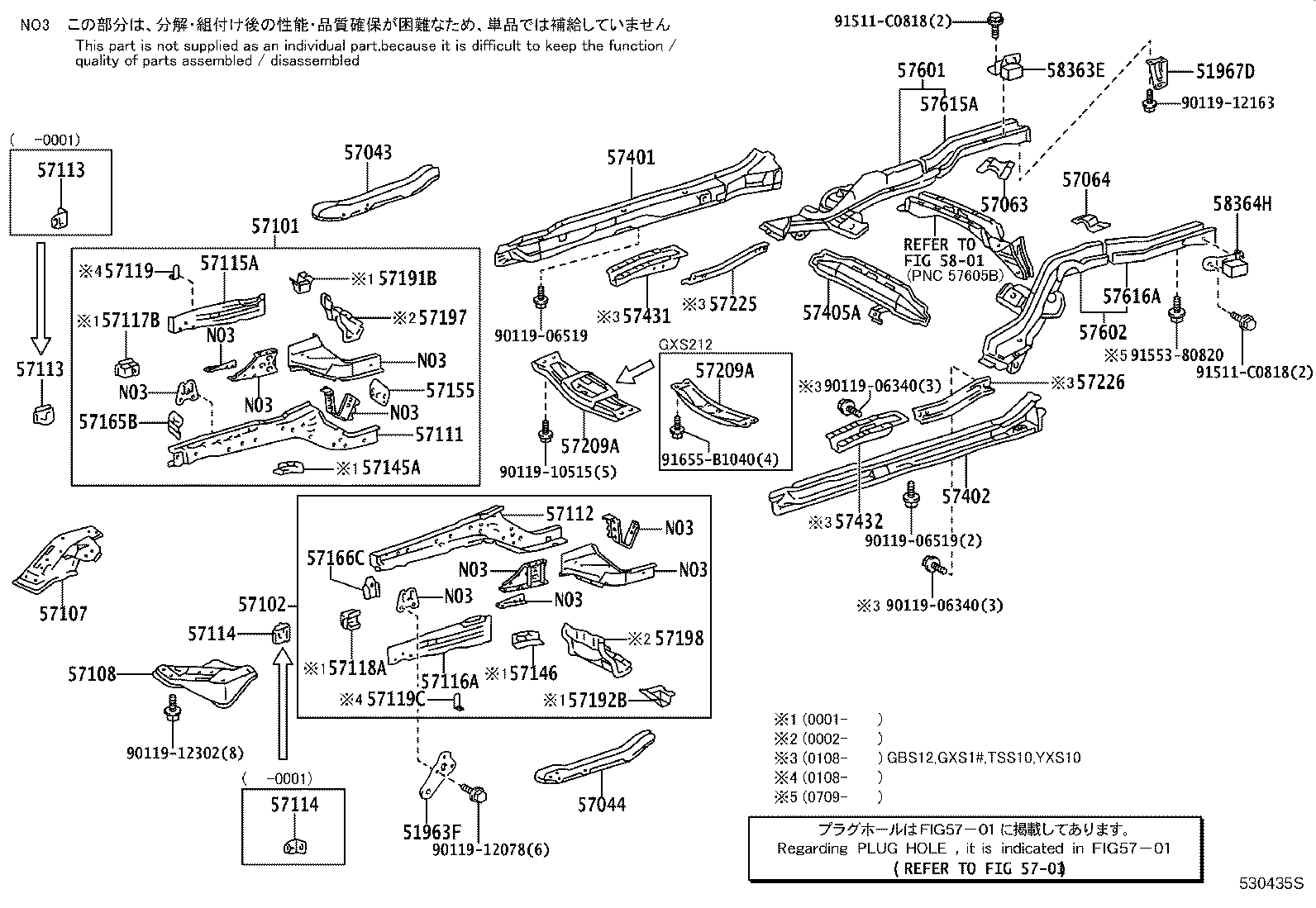

Click highlighted areas on diagram

diagram 51963F 51967D 5701 57043 57044 57063 57064 57101 57102 57107 57108 57111 57112 57113 57113 57114 57114 57115A 57116A 57117B 57118A 57119 57119C 57145A 57146 57155 57165B 57166C 57191B 57192B 57197 57198 57209A 57209A 57225 57226 57401 57402 57405A 57431 57432 57601 57602 57615A 57616A 5801 58363E 58364H 9011906340 9011906340 9011906519 9011906519 9011910515 9011912078 9011912163 9011912302 91511C0818 91511C0818 9155380820 91655B1040
Part # Description Qty Price
57063 - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH
57063-43020

GBS12

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-43905

GBS12

 1
57112 - MEMBER, FRONT SIDE, LH
57112-43020

GBS12

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-43010

GBS12

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-43074

GBS12;YXS10..4FC..SAL

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-43030

GBS12,SXS13,YXS11;YXS10..CRW..(4FC,4H)

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-43023

GBS12,YXS10..SED

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-43022

GBS12,YXS10..SED

 1
Common parts
90119-06340
90119-06519
90119-10515
90119-12078
90119-12163
90119-12302
91511-C0818
91553-80820
91655-B1040
Linked diagrams
5701
5801
