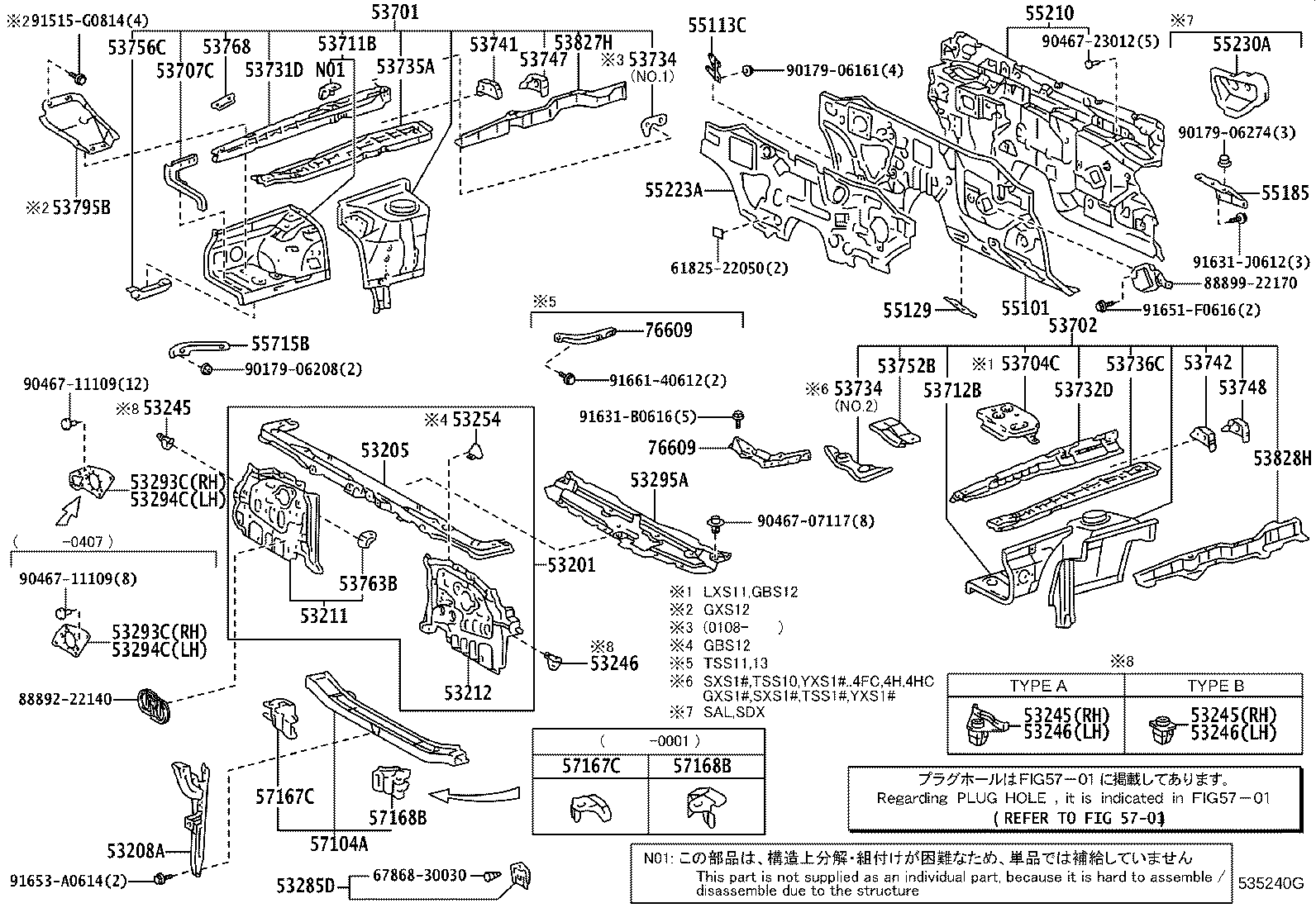

Toyota Crown comfort/sed GBS12 FRONT FENDER APRON & DASH PANEL

Part #	Description	Period	Qty
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-43070	GBS12	10/2002 - 08/2003	1
53201-43906	GBS12	08/2003 - 06/2004	1
53201-43909	GBS12	06/2004 - 12/2999	1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-43021	GBS12,YXS1#..(SED,TAX)..(4FC,5F)	06/2004 - 12/2999	1
53211 - SUPPORT, RADIATOR, RH
53202-43012	GBS12,YXS1#..(4FC,5F)..(DLX,SDX,SG,STD)	07/2004 - 12/2999	1
53212 - SUPPORT, RADIATOR, LH
53212-43011	GBS12	10/2002 - 05/2004	1
53212-43012	GBS12,YXS1#..(4FC,5F)..(DLX,SDX,SG,STD)	06/2004 - 12/2999	1
53245 - BRACKET, HEADLAMP, RH
53245-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,YXS1#..SED,TAX TYPE B	07/2006 - 08/2008	1
53245 - BRACKET, HEADLAMP, RH
53245-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,YXS1#..SED,TAX TYPE B	07/2006 - 08/2008	1
53245 - BRACKET, HEADLAMP, RH
53245-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,YXS1#..SED,TAX TYPE B	07/2006 - 08/2008	1
53246 - BRACKET, HEADLAMP, LH
53245-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,YXS1#..SED,TAX TYPE B	07/2006 - 08/2008	1
53246 - BRACKET, HEADLAMP, LH
53245-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,YXS1#..SED,TAX TYPE B	07/2006 - 08/2008	1
53246 - BRACKET, HEADLAMP, LH
53245-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,YXS1#..SED,TAX TYPE B	07/2006 - 08/2008	1
53254 - BRACKET, RADIATOR MOUNTING, UPPER LH
53254-43010	GBS12	06/2004 - 12/2999	1
53254-43010	GBS12	10/2002 - 05/2004	1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX	07/2004 - 08/2008	1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX	07/2004 - 08/2008	1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53293-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX	07/2004 - 08/2008	1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53293-43020	YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX	07/2004 - 08/2008	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-43040	GBS12	10/2002 - 12/2999	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-43050	GBS12	10/2002 - 12/2999	1
53704C - SUPPORT SUB-ASSY, BATTERY, LH
53704-43011	GBS12	10/2002 - 12/2999	1
53711B - APRON, FRONT FENDER, FRONT RH
53701-43031	YXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX	10/2002 - 08/2008	1
53768 - PLATE, IGNITION COIL MOUNTING
53768-22030	GBS12	10/2002 - 05/2006	2
53768-22030	GBS12	05/2006 - 12/2999	1
55101 - PANEL SUB-ASSY, DASH
55101-43113	GBS12 ｶﾝﾚｲﾁｼﾖｳ	05/2007 - 12/2999	1
55101-43103	GBS12	05/2007 - 12/2999	1
55210 - INSULATOR ASSY, DASH PANEL
55210-43070	GBS12,YXS1#..CRW,SED,TAX	09/2007 - 12/2999	1
55210-43051	GBS12,GXS12,YXS1#..(CRW,SED,TAX)..(4FC,5F)	05/2007 - 08/2007	1
55210-43050	GBS12,GXS12,YXS1#..CRW,SED,TAX	10/2002 - 04/2007	1
55223A - INSULATOR, DASH PANEL, OUTER
55223-43030	GBS12	09/2007 - 12/2999	1
55230A - INSULATOR ASSY, DASH PANEL, NO.4
55230-43020	GBS12,YXS10..SED..4FC	10/2002 - 12/2999	1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-43031	GBS12,YXS1#..4FC,5F	06/2004 - 12/2999	1
Common parts
61825-22050
67868-30030
88892-22140
88899-22170
90179-06161
90179-06208
90179-06274
90467-07117
90467-11109
90467-23012
91515-G0814
91631-B0616
91631-J0612
91651-F0616
91653-A0614
91661-40612
Linked diagrams
5701

GBS12-CEPFK (2002)

(9512- )
