GBS12-CEPFK (2002)

Toyota Crown Comfort/Sed

Production Oct 2002 - Aug 2008
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

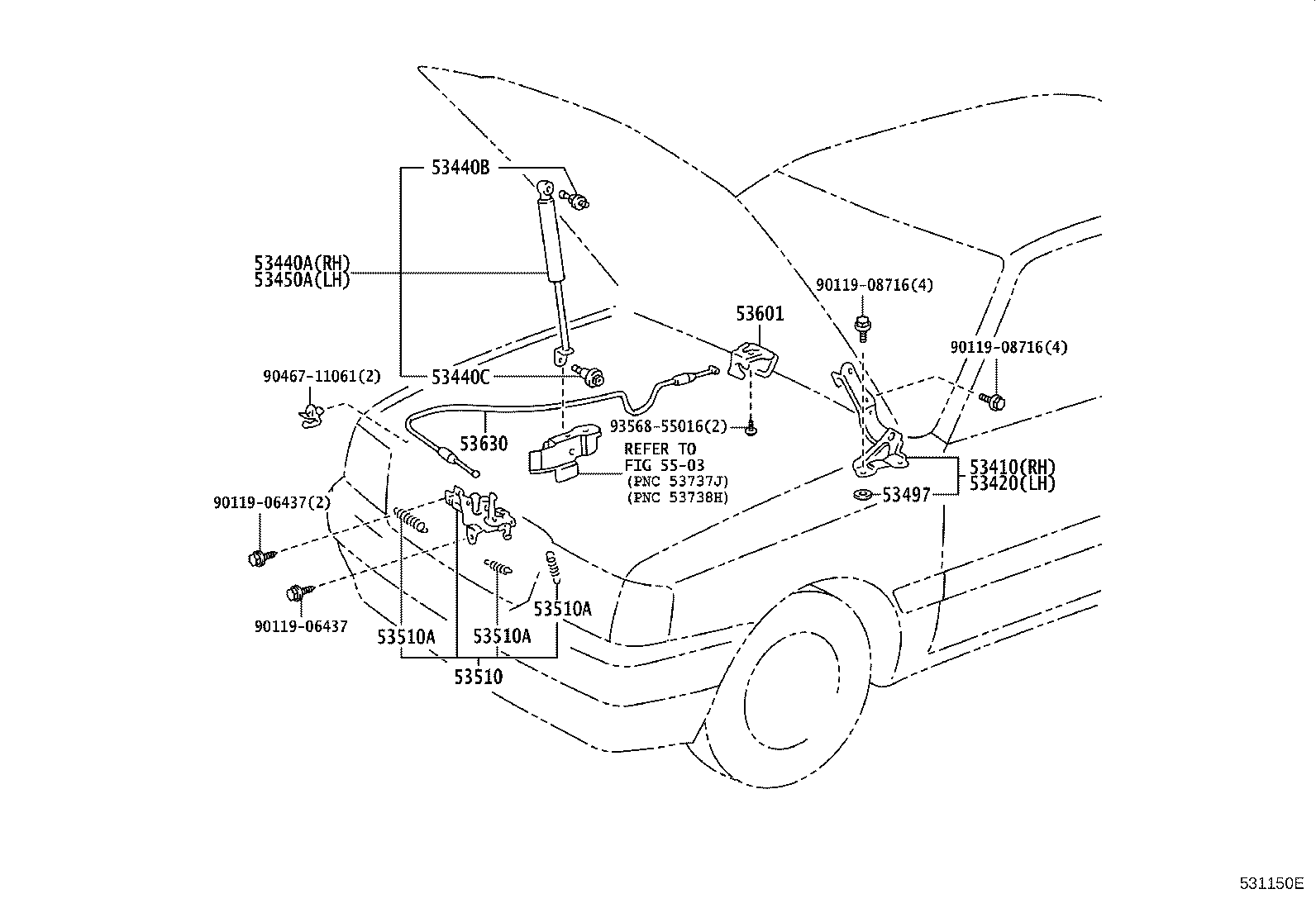

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53440C 53450A 53497 53510 53510A 53510A 53510A 53601 53630 5503 9011906437 9011906437 9011908716 9011908716 9046711061 9356855016
Part # Description Qty Price
53440A - SUPPORT ASSY, HOOD, RH
53440-49045

GBS12,YXS1#..4FC,5F

 1
53440-49115

GBS12,GXS12,SXS13,YXS1#

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-20051

GBS12,YXS1#..4FC,5F

 2
53450A - SUPPORT ASSY, HOOD, LH
53450-49085

GBS12,GXS12,SXS13,YXS1#

 1
53450-49015

GBS12,YXS1#..4FC,5F

 1
Common parts
90119-06437
90119-08716
90467-11061
93568-55016
Linked diagrams
5503
