GBS12-CEPFK (2002)

Toyota Crown Comfort/Sed

Production Oct 2002 - Aug 2008
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-0904)

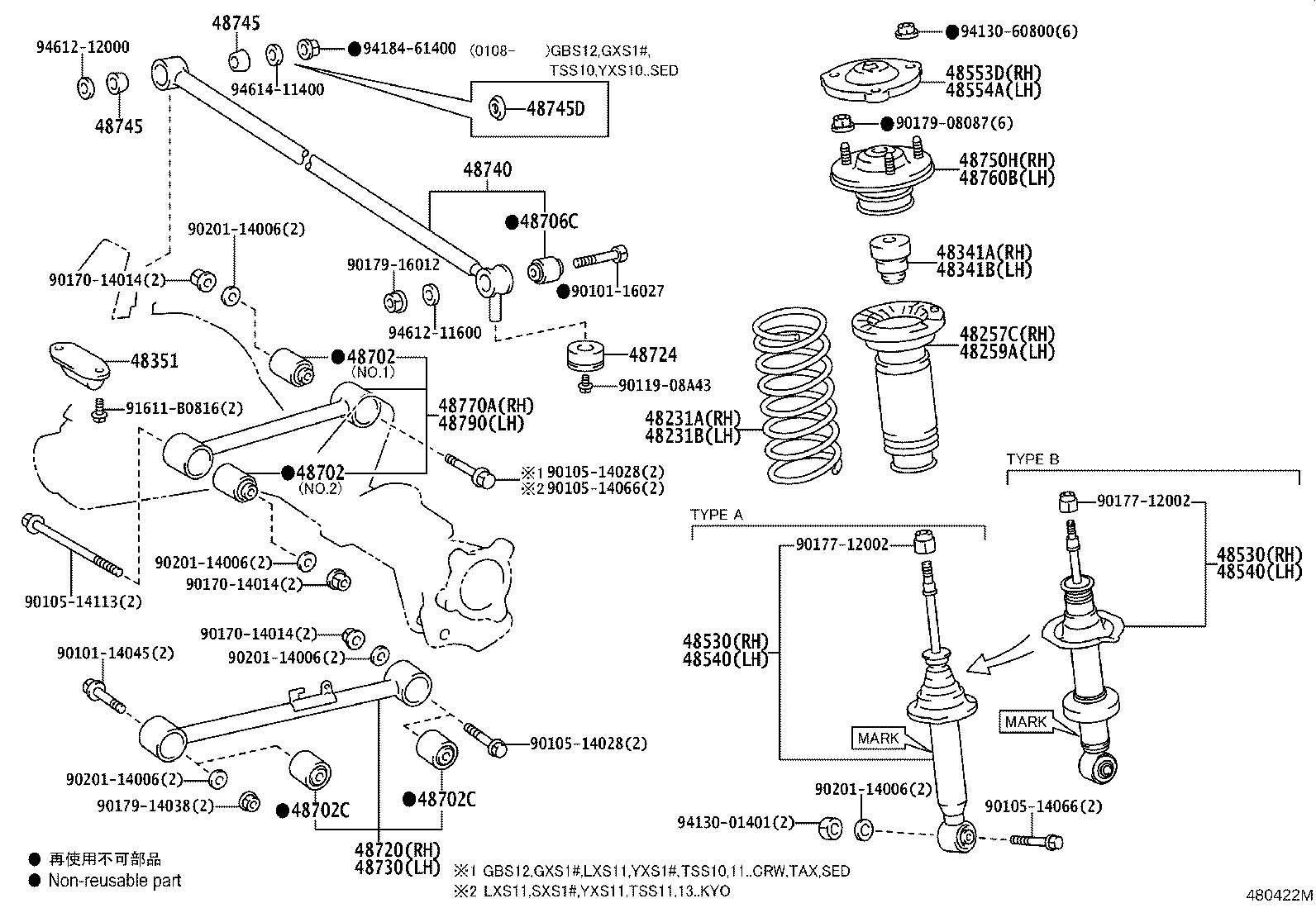

Click highlighted areas on diagram

diagram 48231A 48231B 48257C 48259A 48341A 48341B 48351 48530 48530 48540 48540 48553D 48554A 48702 48702 48702C 48702C 48706C 48720 48724 48730 48740 48745 48745 48745D 48750H 48760B 48770A 48790 9010114045 9010116027 9010514028 9010514028 9010514066 9010514066 9010514113 9011908A43 9017014014 9017014014 9017014014 9017712002 9017712002 9017908087 9017914038 9017916012 9020114006 9020114006 9020114006 9020114006 9020114006 91611B0816 9413001401 9413060800 9418461400 9461211600 9461212000 9461411400
Part # Description Qty Price
48231A - SPRING, COIL, REAR RH
48231-43040

GBS12

 1
48231B - SPRING, COIL, REAR LH
48231-43040

GBS12

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-22131

GBS12,YXS1#..4FC,5F

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-22131

GBS12,YXS1#..4FC,5F

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-49515

GBS12

ﾏｰｸ 48530−43051,TYPE B:ｲﾗｽﾄ参照

 1
48530-49265

GBS12

ﾏｰｸ 48530−43050,TYPE A:ｲﾗｽﾄ参照

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-49515

GBS12

ﾏｰｸ 48530−43051,TYPE B:ｲﾗｽﾄ参照

 1
48530-49265

GBS12

ﾏｰｸ 48530−43050,TYPE A:ｲﾗｽﾄ参照

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-49265

GBS12

ﾏｰｸ 48530−43050,TYPE A:ｲﾗｽﾄ参照

 1
48530-49515

GBS12

ﾏｰｸ 48530−43051,TYPE B:ｲﾗｽﾄ参照

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-49265

GBS12

ﾏｰｸ 48530−43050,TYPE A:ｲﾗｽﾄ参照

 1
48530-49515

GBS12

ﾏｰｸ 48530−43051,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
90101-14045
90101-16027
90105-14028
90105-14066
90105-14113
90119-08A43
90170-14014
90177-12002
90179-08087
90179-14038
90179-16012
90201-14006
91611-B0816
94130-01401
94130-60800
94184-61400
94612-11600
94612-12000
94614-11400
